KVM-TEC USBflex Quick Installation

kvm-tec

First Aid

Your Extender....
No Power USB is not
(No LED) working
Are the USB
Check the
Devices plugged
powerplug
in correctly?
Is the USB cable on
Is the power
the Local side plug-
supply ok? Try
ged into the PC?
another Unit.
Are the USB
Try reprogramming
Devices working
the Unit by using a
directly on the PC?
JTAG programmer
Replace the USB
Contact kvm-tec
cable from PC to
support
the Local Extender
Check if local and
remote Unit have
the same fi rmware
Check if the local
or the remote
Unit is causing
the problem by
swaping fi rst the
local and than the
remote Unit to
another Unit
Contact kvm-tec
support

Update with USB-Stick

Plug the USB stick with update fi le into USB Flex.
2. press the button on the back left (if PtP, the USB channel will be
disconnected) ~ 4 sec
3. wait until LED fl ashes orange (USB stick is scanned for updates) ~
10-20 sec
4. LED lights up specifi cally for 3 seconds
LED red -> no update on stick found (remove stick and start at step 1)
LED green -> Update found, ready to start
5. press button again
6. wait until the update is completed or an error occurs (for PtP local is
updated fi rst) ~ 2-3 min (PtP ~ 5-6 min)
While update is running, LED fl ashes green, if data is transferred or
copied, LED fl ashes very fast.
At the end of the update, the LED fl ashes orange 4 more times and then
starts the reboot process (the Extender must not be disconnected from
the power supply during this process!)

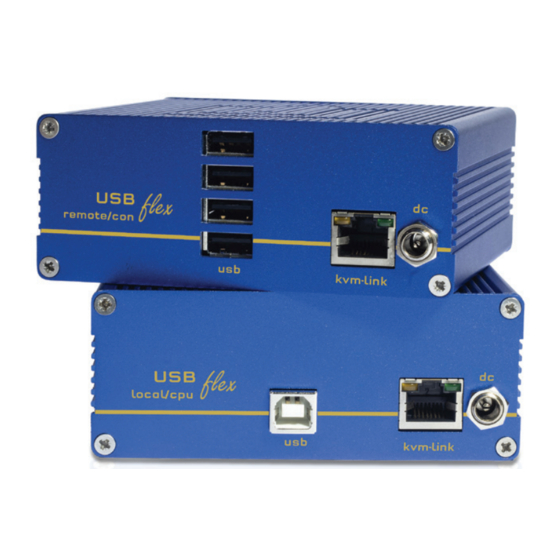

6032 SET
USBfl ex Fiber
6032L CPU/LOCAL
6032R CON/REMOTE
www.kvm-tec.com
kvm-tec
Quick
Installation
Check out
our Installation
Channel:
