HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE

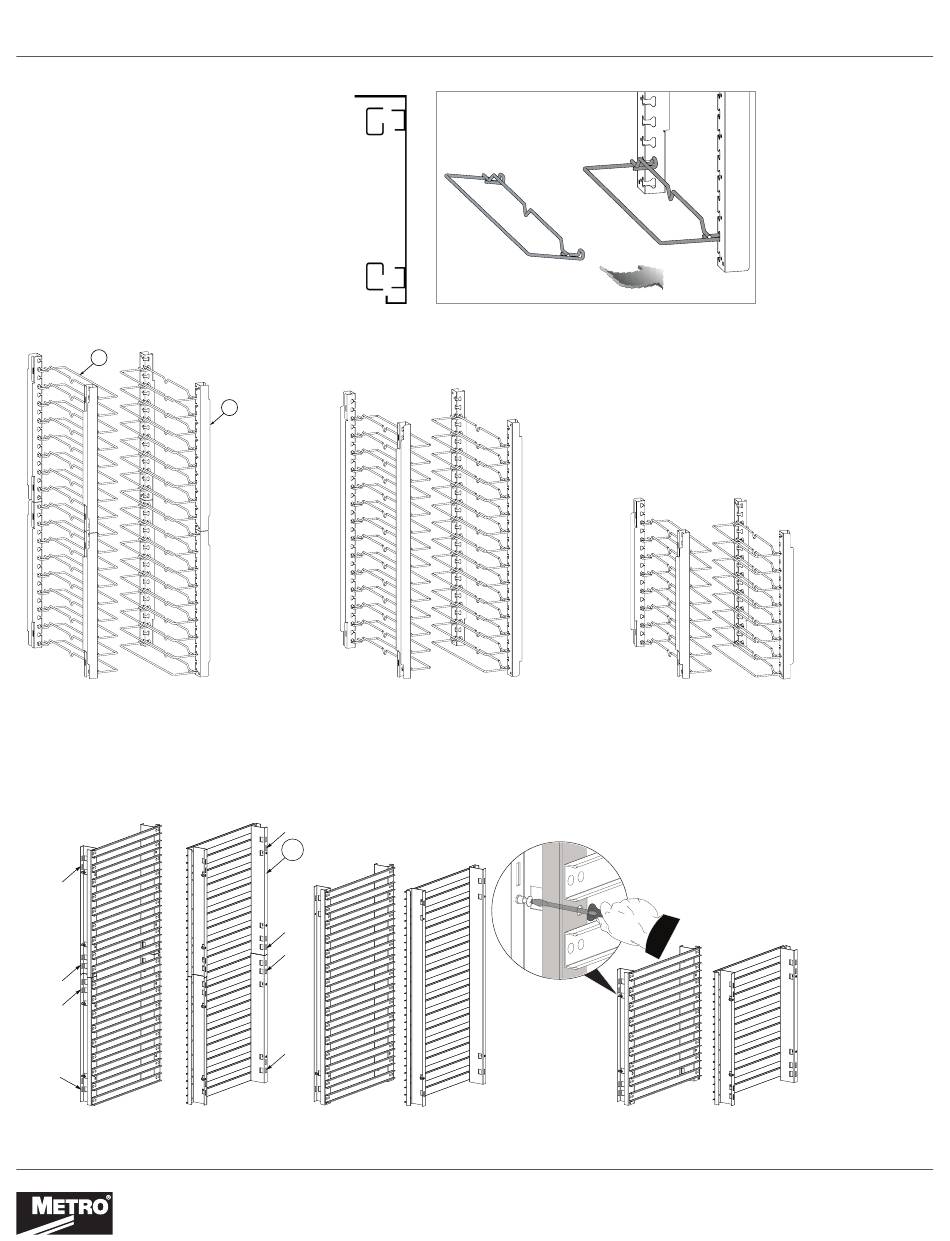

Slide Installation
The universal rack uprights or lip load slides
have been installed at the factory.
If removed for cleaning, reinstall by hanging
them on the rack hangers on the side walls of
the cabinet.
Slide Position to Maximize Universal Slide Pan Capacity when Slides are Spaced on 3" Centers
12
Complete set of universal slides and
uprights for full height cabinet
Part No. RPC54-9-URACK
17 Levels
For additional pairs of wire slides, order C5-USLIDEPR-C for Chrome or C5-USLIDEPR-S for Stainless Steel.
To order individual universal uprights only, see item # 13.
Fixed Lip Load Slide Configurations
LS
LS
LS
LS
Complete set of lip load slides for full
height cabinet
Part No. RPC54-9-LRACK
13
Complete set of universal slides and
uprights for 5/6 height cabinet
Part No. RPC54-8-URACK
LS
11
LS
LS
LS
Complete set of lip load slides for 5/6
height cabinet
Part No. RPC54-8-LRACK
14 Levels
4
www.metro.com
Complete set of universal slides
and uprights for 1/2 height cabinet
Part No. RPC54-5-URACK
8 Levels
NOTE: Lip load slide racks include adjustment
screws to help accommodate variations in sheet
pan sizes from different pan manufacturers.
Turn the screw clockwise to tighten the slides,
and counter-clockwise to loosen them. Full,
5/6, and ½ height cabinet racks have (4) adjust-
ments points on each rack.
Complete set of lip load slides for 1/2 height
cabinet
Part No. RPC54-5-LRACK
