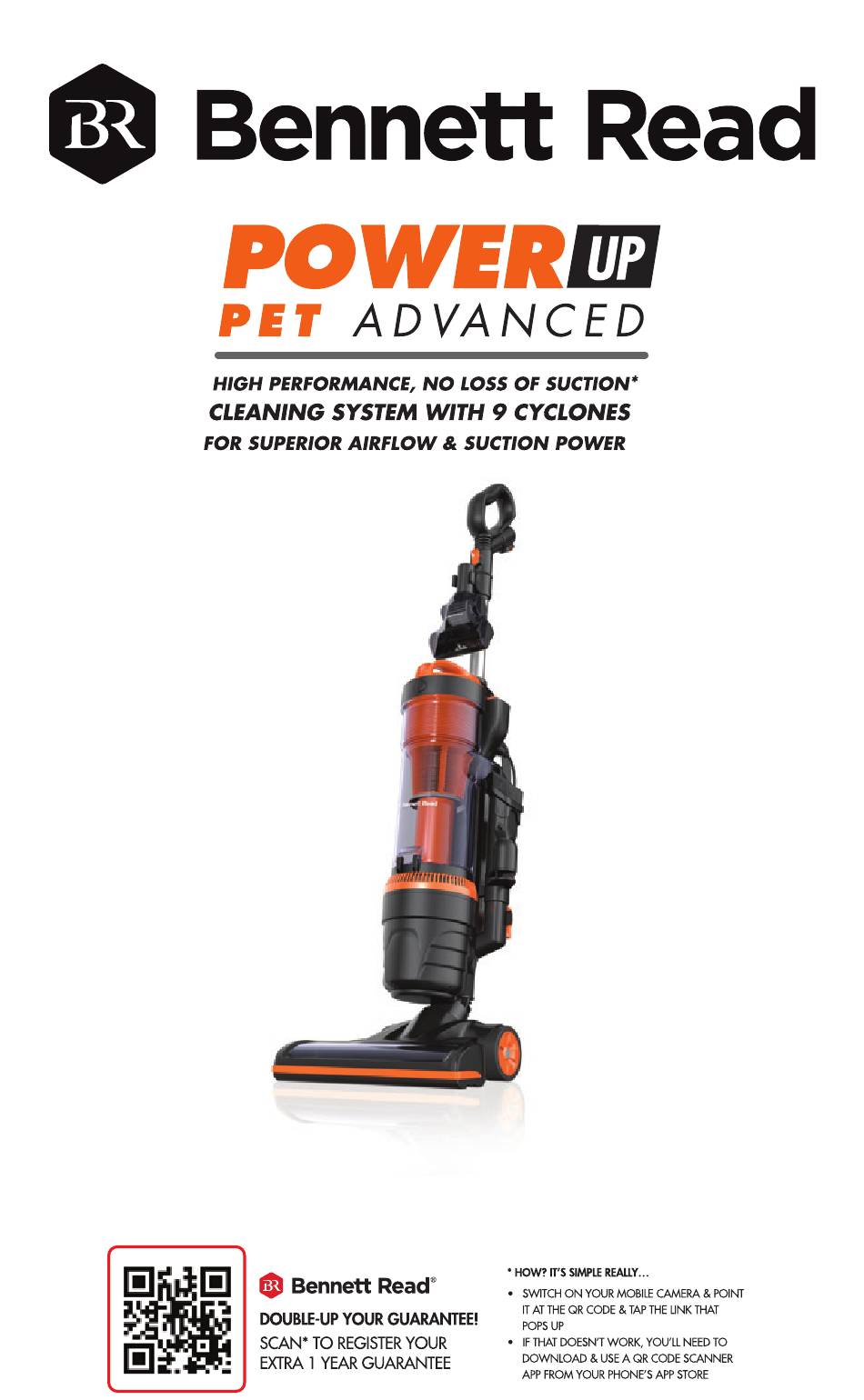

- Page 1 USER GUIDE...
- Page 3 Thank you for purchasing a BENNETT READ POWER UP PET ADVANCED vacuum. Your POWER UP PET ADVANCED vacuum incorporates the latest technological advances in home cleaning systems. It imitates the most powerful forces of nature in a sleek, elegant cleaning system to ensure that your home is easily and properly cleaned.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should be observed, including the following: To reduce the risk of fire, electric shock, or injury follow these instructions. WARNING: • For household use only. Only use indoors • For dry pick-up only. Do not vacuum up any liquids •... - Page 5 • Pay close attention when working around children and animals • Store your vacuum cleaner in a cool, dry area • Use only Bennett Read recommended attachments and spare parts SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE NOT FOR COMMERCIAL USE - THIS MODEL IS FOR HOUSEHOLD USE ONLY For operation on a 220-240 volt A.C.
-
Page 6: Product View
PRODUCT VIEW Handle Handle Release Button Handheld Pet Turbo Brush Clip Handheld Pet Turbo Brush Dirt Container Release Button Carry Handle Power On/Off Button Floor Turbo Brush On/Off Power Button Multi-cyclonic Filters 10. Dirt Container 11. Post-motor filter cover 12. Rotating Floor Turbo Brush... - Page 7 13. Integrated Extension Wand 14. Extension Wand Adjustment Button 15. Quick-release power cord holder 16. Power cord 17. Wire Reinforced Flex Hose 18. 2-in-1 Pet Upholstery Tool & Dusting Brush 19. Pre-motor Filter 20. Post-motor Filter 21. Silicone-tipped Crevice Tool 22.
- Page 8 ASSEMBLY: Do not plug in your vacuum cleaner until you are familiar with all instructions and operating procedures. CAUTION: Before plugging the power cord into the electrical outlet, make sure the power switch on the wall plug is in the ‘off’ position. Hold the vacuum cleaner firmly by the Handle when starting and during use.
-
Page 9: Power Switch
OPERATIONS POWER SWITCH 1. Press the Power On/Off Button (7) to switch the vacuum suction on. Press again to switch it off 2. Press the Rotating Floor Turbo Brush Button (8) to switch the Rotating Floor Turbo Brush on. Press again to switch it off To use the Flex Hose and accessory attachments, press only the Power On/ Off Button to engage the vacuum suction. -
Page 10: Transporting Cleaner
TRANSPORTING CLEANER 1. To move your vacuum cleaner from room to room, put the handle in the upright position, tilt the cleaner back on its rear wheels (24) and push forward 2. The cleaner can also be moved by using the carry handle (6) SPECIAL ON-BOARD TOOLS Your vacuum is not only a powerful carpet and rug cleaner, it is also a versatile above-floor vacuum cleaner when you select one of the special tools:... -
Page 11: Power Cord Usage
When using the Handheld Pet Turbo Brush, press down gently and pull towards you in a raking motion. NOTICE: Too much pressure will cause the brush to stop rotating. To reduce the risk of injury from moving parts, always move the cleaner with the carrying handle. - Page 12 EMPTY DIRT CONTAINER The dirt container should to be emptied before the dirt reaches the “Full” line on the container. 1. Unplug the vacuum 4. Shake the Dirt from electrical outlet Container or gently tap its side to ensure 2. Lift the Dirt Container all dirt and dust is (10) from the vacuum released into the...
- Page 13 CHECK ROTATING FLOOR BRUSH & DRIVE BELT You should check your vacuum cleaner’s rotating floor brush and drive belt regularly for wear or damage. You should also clean the brush and brush ends of string, hair and carpet fibers. This type of debris can wrap around the brush and hamper its ability to effectively clean your carpet.
-
Page 14: Clearing Clogs
MAINTAINING HAND-HELD PET TURBO BRUSH The Hand-held Pet Turbo Brush should be checked regularly for blockages or debris wrapping around the brush. 1. Remove the Pet Turbo Brush (4) from the hose or from the on-board storage clip 2. Gently unclip the top transparent cover by releasing the 2 holding tabs on either side of the Turbo Brush. - Page 15 CLEANING THE UPPER TANK 1. Remove the lid of the Dirt Container (10) by twisting the lid to the “unlock” position. Remove the Pre-motor Filter (19) 2. Separate the Dirt Container (10) and Multi-cyclonic Filter assembly (9) 3. Wipe the inside of the Dirt Container and Multi-cyclonic Filter assembly with a damp cloth moistened with water or a mild cleaning solution 4.
-
Page 16: Troubleshooting
3. Dirt Container installed 3. Remove and re-insert dirt incorrectly container correctly Other maintenance or service not included in the manual should be performed by an authorized service representative. Thank you for selecting a BENNETT READ product. -
Page 17: Replacement Parts
REPLACEMENT PARTS The items below are available for purchase as accessories for your BENNETT READ POWER UP PET ADVANCED Multi-cyclonic vacuum. To purchase, contact TEVO Customer Care in your area. ITEM PART NO. PART NAME HVC 104 CF16 Drive Belt... - Page 18 CONSUMER GUARANTEE: Your BENNETT READ POWER UP PET ADVANCED is warranted against manufacture faults for a period of 1 year. If you register your guarantee online at www.tevo.co.za within 14 days of purchase, then your guarantee will be extended to 2 years.
- Page 20 Brought to you by: 0861 77 88 88 www.tevo.co.za | info@tevo.co.za...
