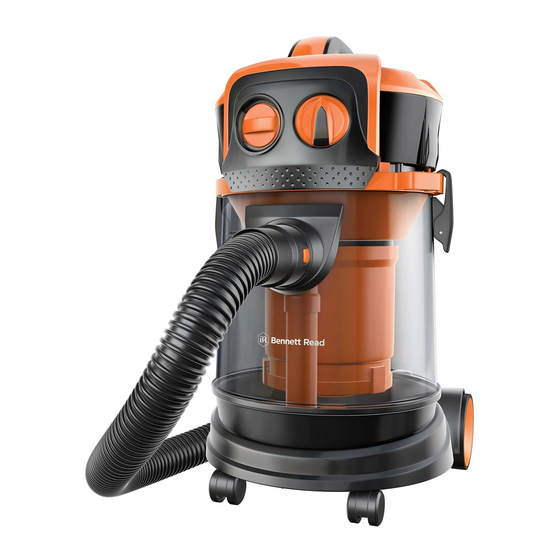

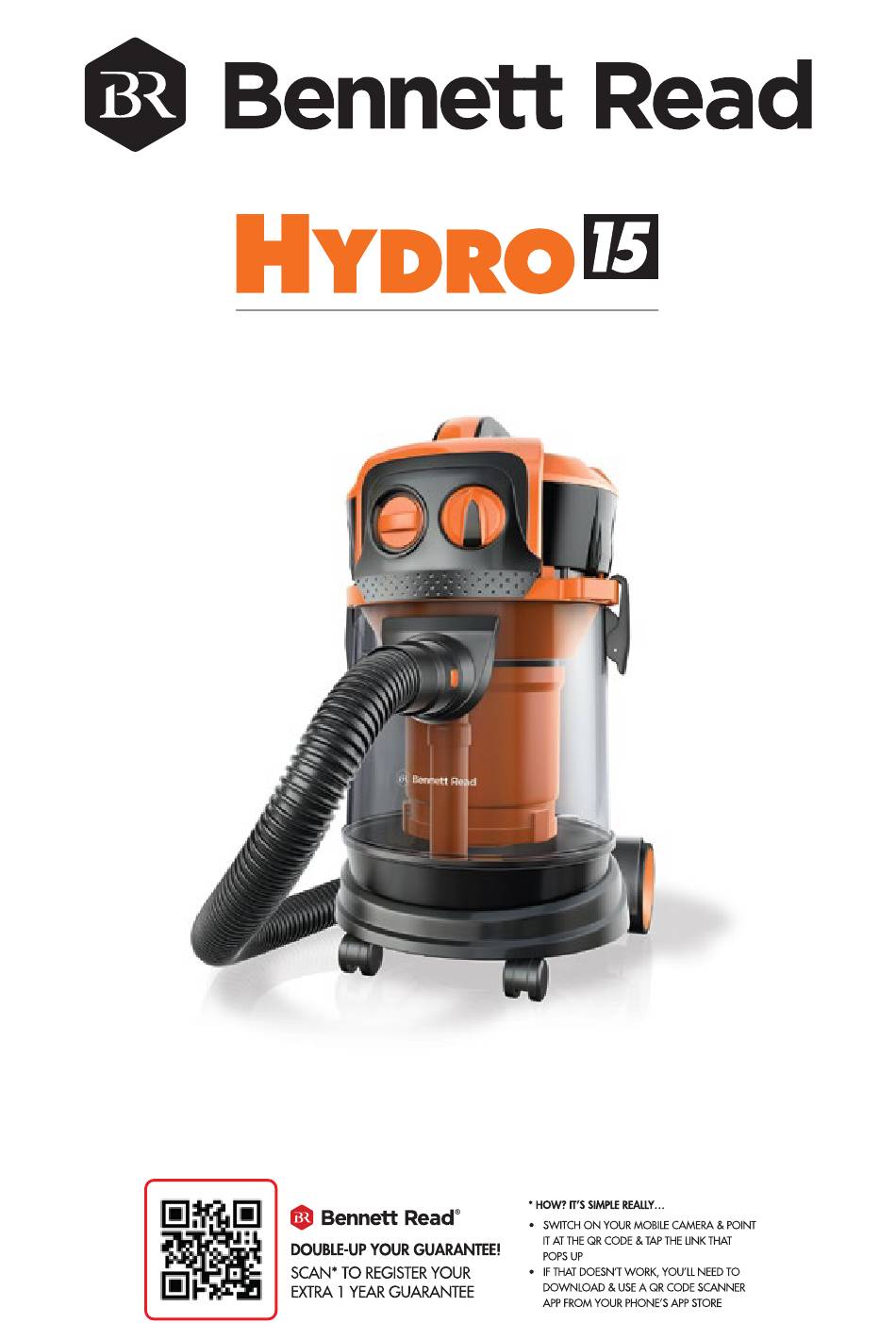

- Page 1 WET & DRY WATER-FILTRATION VACUUM SYSTEM WITH UNIQUE LARGE-VOLUME WATER PICK-UP CAPACITY USER GUIDE...
- Page 2 floorcare went into the design and construction of this complete, high-tech home cleaning system. Your HYDRO 15 imitates the most powerful forces of nature in a sleek, elegant vacuum cleaning system, to ensure that your home is easily and properly cleaned. Dust, dirt, dust mites and most other household allergens are removed, filtered and contained in...
-
Page 3: Table Of Contents
Pg 6 ....ASSEMBLY INSTRUCTIONS Pg 6 ....3-STAGE FILTRATION EXPLAINED Pg 7 ....DRY VACUUMING Pg 8 ....SETTING UP YOUR HYDRO 15 FOR DRY VACUUMING Pg 9 ....CLEANING YOUR HYDRO 15 Pg 10 ....WET VACUUMING Pg 10 ....SETTING UP YOUR HYDRO FOR WET VACUUMING Pg 11 .... - Page 4 » To reduce the risk of injury from moving » Use extra care when cleaning on stairs parts – Unplug before servicing » Do not use the HYDRO 15 without the Microparticle filter in place, except » To reduce the risk of electric shock –...
-
Page 5: Product Overview
PRODUCT OVERVIEW 1. Power switch 2. Self-sealing blowing port 3. Sealed motor unit 4. Advanced microparticle filter Mechanical water-level detector with float cage Microparticle filter guard Sponge filter Sponge Filter guard 9-A. Diffuser pipe 9-B. Water max-level indicator for dry vacuuming (on Diffuser Pipe) 10. -
Page 6: Accessories
ACCESSORIES 16. Ultra-durable, polypropylene vacuum hose 17. Variable airflow control Close the slider on the handle to increase suction. Open the slider to decrease suction 18. 2-Piece stainless steel extension wand with accessory attachment 19. Multi-surface dry vacuum nozzle 20. Dual-purpose high-speed turbo brush head 21. - Page 7 24. Upholstery tool 25. Dusting brush 26. Wet spill suction head 27. 50ml Bottle of de-foamer Your HYDRO 15 comes with a 50ml sample bottle of de-foamer. Refill bottles are available from the store where your HYDRO 15 was purchased.
-
Page 8: Precautions
• Keep your HYDRO 15 away from open flames • Never vacuum any substance that is hotter than 50˚C • Vacuuming up hot or corrosive liquids with your HYDRO 15 will cause damage to the machine and will void the guarantee •... -
Page 9: Dry Vacuuming
Do not exceed the water max. level mark on the diffuser pipe (9-B) 5. Add 3 capfuls of BENNETT READ HYDRO de-foamer (27) to the water. The de-foamer is important as it stops the formation of foam in the water filter. This protects the machine from blockages and damage 6. - Page 10 The sponge filter (7) must be washed, rinsed and then air dried completely before replacing it back into the machine • The microparticle filter (4) should be inspected and cleaned when necessary NOTE: NEVER OPERATE YOUR HYDRO 15 WITHOUT ALL FILTERS PROPERLY INSTALLED...
-
Page 11: Cleaning Your Hydro 15
CLEANING YOUR HYDRO 15: 1. Unplug the unit from the electricity supply 2. Take the unit to a drain or disposal area 3. Lift the locking clips (13) to unlock the motor unit 4. Lift the motor unit (3) from the water filter tank and place it to one side 5. -
Page 12: Wet Vacuuming
SETTING UP YOUR HYDRO 15 FOR WET VACUUMING: If you intend using your HYDRO 15 to vacuum up liquids, DO NOT fill it with water at set up. To beging setting up your HYDRO 15 for wet vacuuming follow steps 1 - 9 from “CLEANING YOUR HYDRO 15”... -
Page 13: Blower Function
BLOWER FUNCTION: You can use your HYDRO 15 to blow away leaves and other light debris. Simply connect the flex-hose to the blower port (2) as shown in the pictures below, then switch on the machine (the machine can be set up for wet or dry vacuuming, this will not affect the blower function). -
Page 14: Troubleshooting
TROUBLESHOOTING: REMEDIES POSSIBLE CAUSES PROBLEM Machine not switching on Power cord not firmly plugged in or Check electrical plug switched on at wall socket 1. Advanced Microparticle Filter 1. Remove and clean Advanced Weak suction power dirty or clogged Microparticle Filter as explained on page 9. - Page 15 ENVIRONMENTALLY FRIENDLY DISPOSAL Do not dispose of electrical appliances with general municipal waste. Hazardous substances can leak and contaminate the groundwater, affecting the food chain and ultimately damaging the environment and your health. Contact your local municipality for information on safe disposal in your area.
