BEFORE COnnECTing TO POWER sOURCE Unpacking Carefully unpack the unit, making sure that all the accessories are included in the packaging (see below). Examine the receiver to make sure that it has not been damaged during transport. If your unit is damaged or it does not work, inform your dealer immediately.

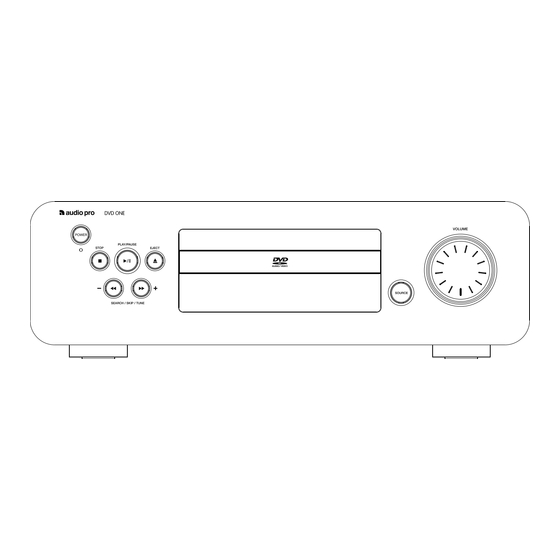

MAin UniT FRONT PANEL 1) standby power switch Press this button to turn on the receiver, if it is in standby mode (indicated by the red LED, ). If it is not illuminated, turn on the Main power switch on the rear panel of the unit (to ON).
COnTROls AnD inDiCATORs MAin UniT Rear panel 1) hDMi output For best picture connect an HDMI cable (extra ac- cessory). This is provided your TV has HDMI input. 2) hDMi inputs 1 & 2 Connect external video sources such as Blue Ray player, Video games, HD TV satellite box etc.
Page 8
MAin UniT Rear panel 18) AUX 1 Optical digital audio input Connect an optical cable from an external audio/video source. 19) Optical digital audio output Connect an optical cable to an external decoder, ampli- fier or receiver. 20) Preout Connect to an external power amplifier, wireless trans- mitter or to active speakers (with built-in amplifier).
Page 9
Indicates if the DVD or CD disc being played is in play mode. 10) Repeat indicator Indicates if repeat is activated, one or all 11) Audio format indicator Indicates the audio format of the DVD disc being played. These 5. audio formats will be reproduced as . in DVD ONE.
COnTROls AnD inDiCATORs REMOTE COnTROl 1) standby button Push this button to turn on the receiver, assuming that it is in standby mode (the indicator LED is red). If it is not red, the receiver is off. Turn on the receiver with the main power switch on the rear panel of the unit.
Page 11
COnTROls AnD inDiCATORs 20) numerical buttons The numerical buttons 0-9 permit the user to select: CD mode: track number. DVD mode: chapter number Tuner mode: pre-set radio stations 21) Memory button To store tuner stations into the pre-set memory. Tune in the station to be memorized. Push to open the tuner pre-set memory.
Connect the speakers to PREOUT Left and Right. Use cables recommended by the speaker manufacturer. The preout volume is controlled by the DVD ONE volume control. Note: When connecting headphones, this preout will not be off. Connect a subwoofer (extra accessory) A powered subwoofer will substantially improve the bass reproduction.
insTAllATiOn Connect to a TV There are several options how to connect to your TV. Check the input options on your TV. A video cable is provided with this unit to connect according to option D. A: For best picture quality use the HDMI option. Connect an HDMI cable (extra accessory) to your HDMI input on the TV.
insTAllATiOn Connect a UsB memory (Max. 4gB size) On the right side of the unit you can connect a USB memory. This unit can playback Mp and AAC audio files, JPEG picture files. Select USB as source. Use the jog on the remote control to navigate the USB folders on the screen.
OsD (On sCREEn DisPlAY) OSD menues Most settings and adjustments of the DVD ONE is made by the OSD (One Screen Display) and using the remote control. OSD is displayed on the TV screen. note: This is only possible in DisC MODE.
Page 16
OsD (On sCREEn DisPlAY) PARENTAL SETUP: Move the jog down to enter the desired file. Lock system: (Default password is 1234) - Enter Password to lock the parental system (the selected MPAA rating) Unlock system: - Enter password to unlock the parental system MPAA rating: ( Select MPAA rating) - : Approved for all ages...
PlAYBACK FUnCTiOns Playing a DVD Push EJECT to open the DVD tray. Place a DVD in the tray with the label facing up. Push EJECT to close the tray. Push PLAY to start playback. Shown on the display: When a TV is connected using HDMI Play mode Total elapsed time of the title Shows the audio format...
TUnER FUnCTiOns Manual/Automatic search of FM/AM radio stations Select TUNER as source using the SOURCE button. Select FM-stereo, FM-mono or AM with the AM/FM button on the remote control. On the front panel, press TUNE + button to search up the dial or TUNE - to search down the dial.
ADJUsTing ThE sOUnD Adjust the volume Turn the volume knob clockwise to raise the vol- ume or counter-clockwise to lower the volume. The scale shown on the display ranges from VOL- UME 00-50, that is, from VOLUME 00 (minimum) to VOLUME 50 (maximum).
OThER iMPORTAnT inFORMATiOn Connecting the headphones. Connect the headphones with a .5 mm stereo plug to the headphones output on the right side panel. When the headphones are connected, the speaker output turns off automatically. When the headphones are connected, there is no audio output from the speak- ers.
TROUBlEshOOTing if the unit does not function or perform as expected, the problem is not always a malfunction. The solution may be found in the table below. Check this before you contact your retailer or authorized service center symptom: Absence of sound no sound from the left or right speaker no picture output Poor or absent FM reception...
Subwoofer output Preout Optical Digital output Coax Digital output Dimensions: Width: ... mm Height:...08 mm Depth:...0 mm Weight:...5 Kg Power consumption: Max:...50W Standby:...0,8W Audio Pro follows the policy to constantly develop the products. Therefore, specifications can be changed without further notice.
