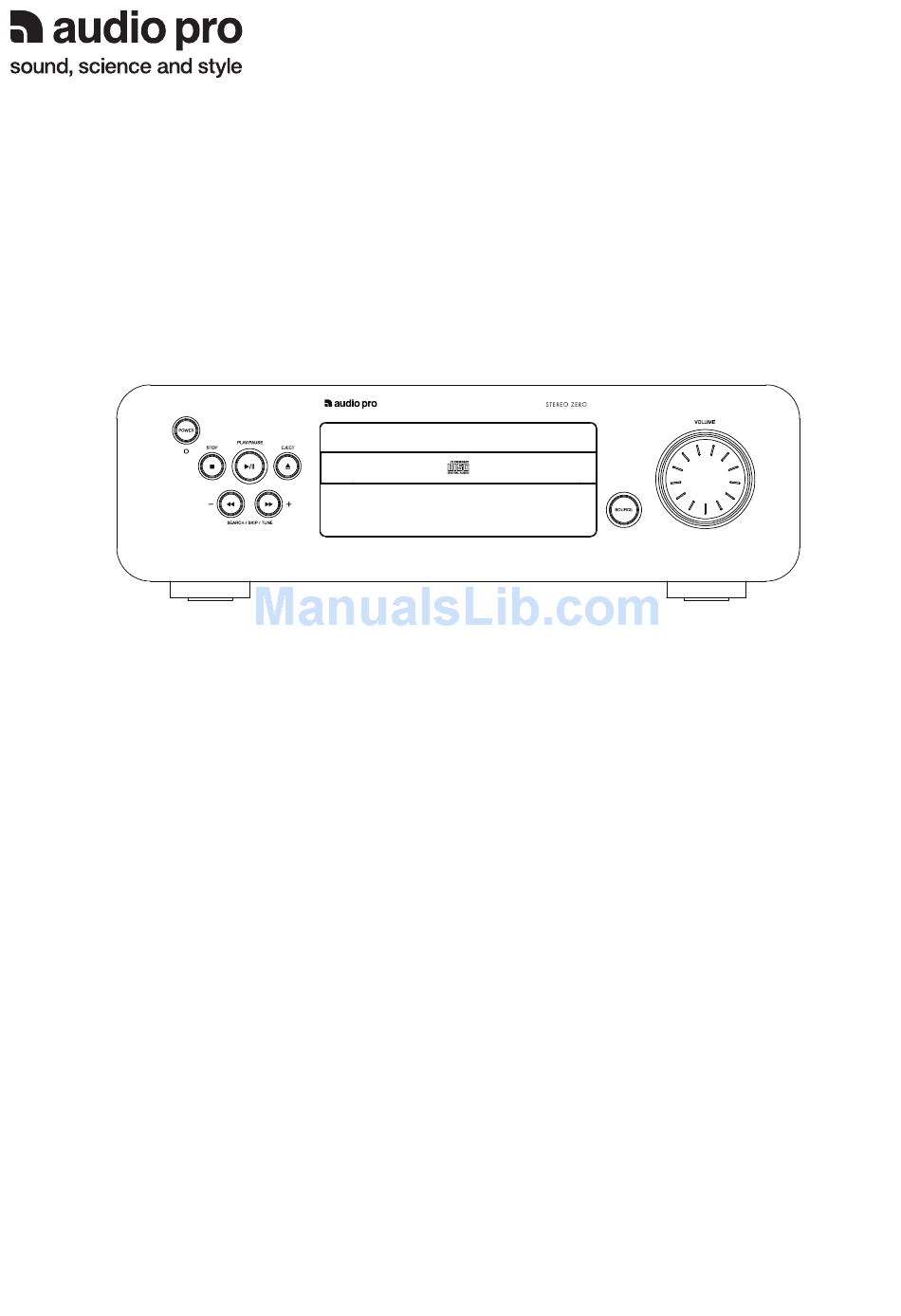

- Page 1 Stereo Zero (ENG) OPERATING INSTRUCTIONS...
-
Page 3: Table Of Contents
CONTENTS Before connecting to power source Security Controls and indicators The front panel The remote control Connections on the rear panel Connections on the side panel 10 Installation 10 Connecting the speakers 10 Connecting a subwoofer 11 Using the remote control 11 Connecting the FM and AM antennas 11 Connecting an external audio source 12 CD functions... -
Page 4: Before Connecting To Power Source
BEFORE CONNECTING TO POWER SOURCE Unpacking Carefully unpack the unit, making sure that all the accessories are included in the packaging (see below). Examine the receiver to make sure that it has not been damaged during transport. If your unit is damaged or it does not work, inform your dealer immediately. -
Page 5: Security
SECURITY Power source Cabinet This unit is intended for use with a 230 V AC power sup- Do not open the unit’s cabinet. There are no parts inside ply only. Connecting to a different power source may lead the cabinet that you can repair yourself. Only an to accidents or fire and can damage the unit. -
Page 6: Controls And Indicators
CONTROLS AND INDICATORS FRONT PANEL 1) Power switch 8) Operating mode indicator Press this button to turn on the receiver, assuming that Indicates whether the unit is turned on (blue) or in it is in standby mode (the indicator LED on the front standby mode (red). -
Page 7: The Remote Control
CONTROLS AND INDICATORS REMOTE CONTROL 5) Bass adjustment Press to adjust Bass. Change setting using the + or - knobs (13 or 14). 6) Treble adjustment Press to adjust Treble. Change setting using the + or - knobs (13 or 14). 6) Balance adjustment Press to adjust Balance. -
Page 8: Rear Panel
CONTROLS AND INDICATORS Rear panel 1) Connecting the FM indoor antenna 6) Speaker terminals Connect the enclosed FM indoor antenna. Locate Connect speaker cables – the right channel to the wire where the reception will be optimal. RIGHT and the left channel to LEFT. Make sure to NOTE: It is also possible to connect a central or also connect + to + and –... -
Page 9: Side Panel
Up to 999 tracks can be shown and controlled by the skip buttons (also on the remote) Stereo Zero can receive wireless audio signal with the optional accessory Audio Pro RX-100. RX-100 is a USB dongle that can receive audio signal sent from Audio Pro TX-100 transmitter. - Page 10 Connecting the speakers Connect speaker cables according to the drawing below. Speaker cables are normally marked + and - (or with different marks). Connect one end to the speakers terminals. Connect the other ends of the cables to the ampli- fier, following directions 1-4 below.
-
Page 11: Installation
INSTALLATION Using the remote control Connecting the FM indoor antenna Insert the AAA batteries included in the packaging Connect the FM indoor antenna plug to the output on into the battery opening on the back of the remote the rear panel. control. -
Page 12: Cd Functions
CD FUNCTIONS Playback a CD CD Repeat Press EJECT to open the CD tray. Place a CD in the This option can only be used with the remote con- tray with the label facing up. Press EJECT to close the trol. -
Page 13: Tuner Functions
TUNER FUNCTIONS Display during radio listening Automatic search of FM/AM radio stations Example of display when FM is tuned to 103,20 Select FM/AM as source using the SOURCE button. MHz. Select FM-stereo, FM-mono or AM with the FM/AM button. This is only possible from the remote control. Press the TUNE button on the right to search up the radio dial or on the left to search down the radio dial. - Page 14 RDS [RADIO DATA SYSTEM] FUNCTIONS RDS (Radio Data System) RDS is a system that sends information (digital data) for FM broadcasts together with the broadcast signal. Radio parts developed for RDS reception can convert these digital data for the display of program names, program types, current time, etc.
-
Page 15: Adjusting The Sound
ADJUSTING THE SOUND Adjusting the volume Adjusting the balance between the left and right Turn the volume knob clockwise (to the right) to channel raise the volume or counter-clockwise (to the left) Press the BALANCE button on the remote control. to lower the volume. -
Page 16: Other Important Information
Disc driver, place the music files on top in the root menu. Wireless ready Stereo Zero can receive wireless audio signal with the optional accessory Audio Pro RX-100. RX-100 is a USB dongle that can receive audio signal sent from Audio Pro TX-100 transmitter. -
Page 17: Troubleshooting
TROUBLESHOOTING If a unit does not function or perform as expected, the problem is not always a mechanical one. The solution may be found in the table below. Check here before you contact your retailer or authorized service center Symptom: Possible cause: Possible correction: Absence of sound... -
Page 18: Technical Data
Stereo separation: ...............35dB Image rejection: ...............70dB AM tuner: Frequency range: ............531 - 1602kHz Signal-to-noice ratio: ...............40dB Usable sensitivity: ................1mV Audio Pro follows the policy to constantly develop the Image rejection: products. Therefore, specifications can be changed ...............30dB without further notice. - Page 20 YOUR OWN NOTES:...
- Page 22 Audio Pro AB Box 1015 S-251 10 Helsingborg Sweden www.audiopro.com...
