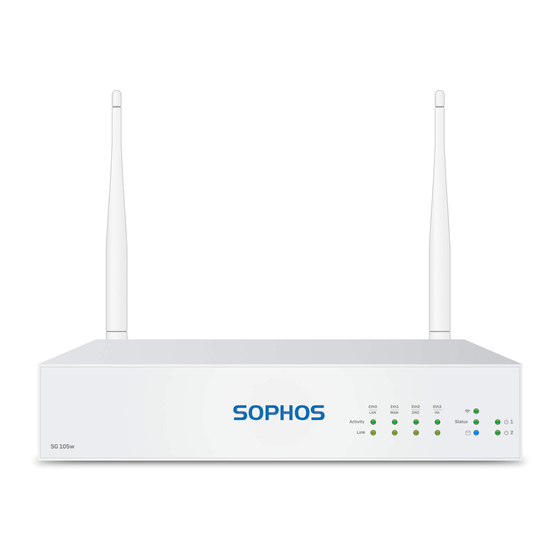

Sophos SG 105 Mounting Instructions

Rackmount Kit Mounting Instructions
This Rackmount kit can only be used with SG 105/115 and SG 105w/115w appliances.
Scope of supply
In addition to the rack mounting kit contents, you will need
a long-handed Phillips-head screwdriver.
Step 2:
Install the Power Adapter
Place the adapter on the bracket. Draw attention to the
direction of the power outlet of the adapter. Secure the
position of the adapter with the supplied bevel by using
two round head screws from the scope of supply.
