Atlantic Furniture RICHMOND HEADBOARD Assembly Instructions

READY
please contact Atlantic Furniture at service@atlanticfurniture.com 1-800-955-3726 / M-F 9:00-5:00 EST

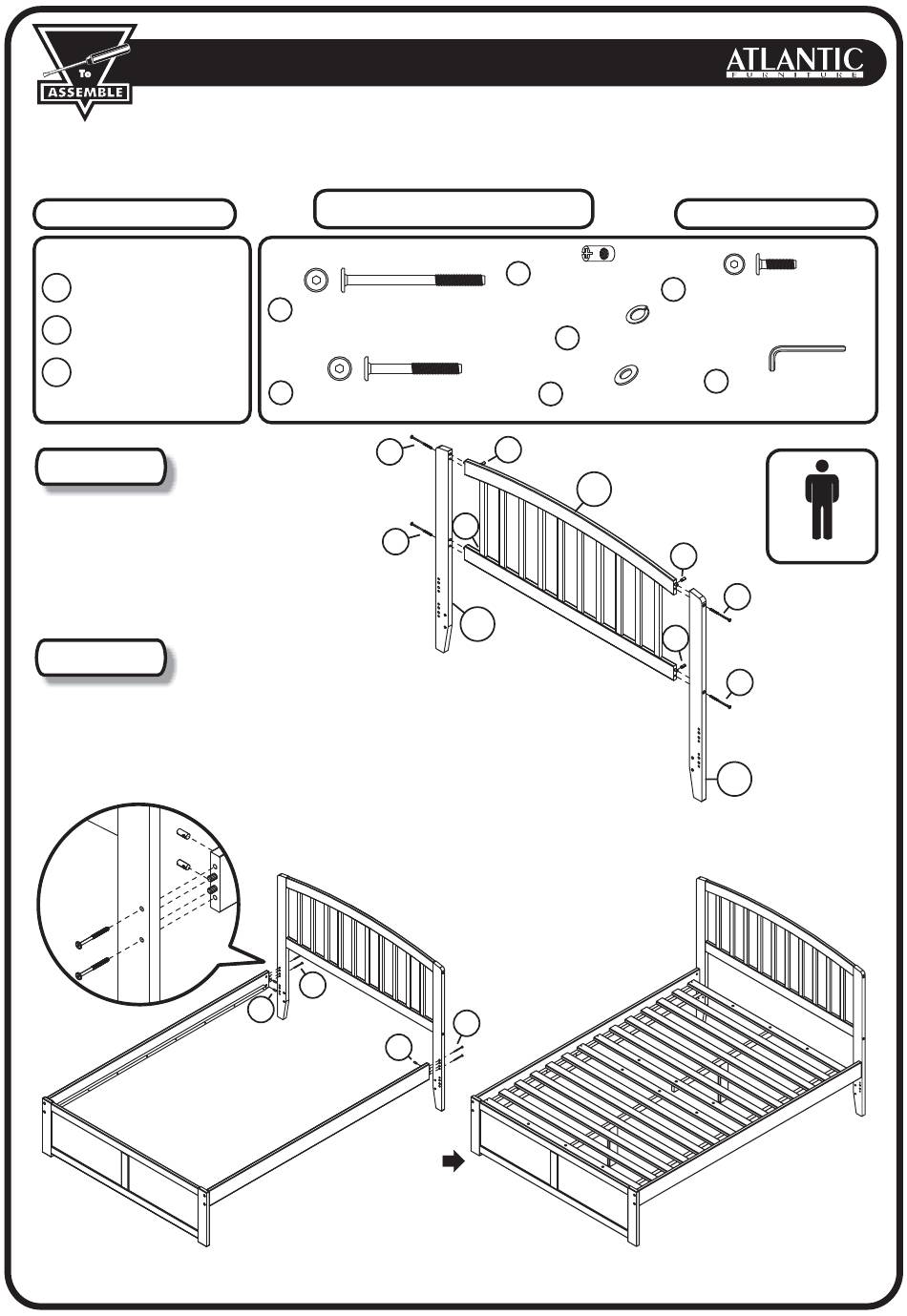

PARTS LIST
1 HEADBOARD PANEL 1 PC
2 LEFT LEG
3 RIGHT LEG
Step 1
Attach the legs (2)(3) to headboard panel (1),
using JCB (A) and barrel nut (C).
Tighten with the Allen wrench (G).
Step 2
Attach bed frame assemblies to the headboard assemblies,
using JCB M6 X 70mm (B) and barrel nut (C) as shown below.
Tighten with allen wrench (G).
For Slat kit assembly, follow assembly instructions included with slat kit.
BACK VIEW

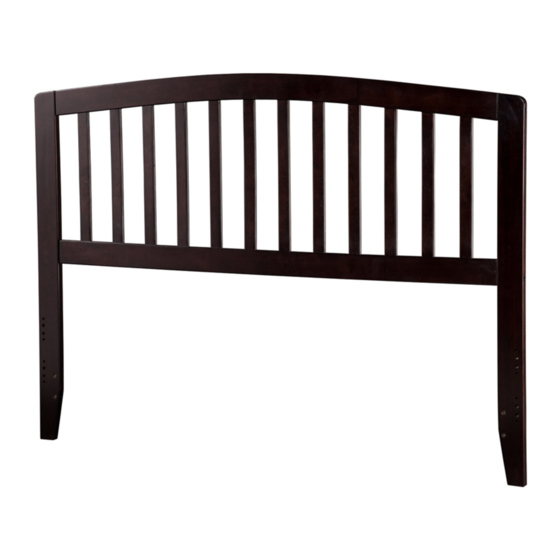

Richmond Headboard
RICHMOND HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your Headboard, please read through these
instructions carefully. Familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
Instructions apply for all sizes of bed
TWIN > FULL > QUEEN > KING
A JCB M6 X 120mm(3 3/4") - 4 pcs
1 PC
1 PC
B
JCB M6 X 70mm(2 3/4") - 4 pcs
A
B
C
Barrel Nut - 8 pcs
C
Spare - 1 pc
E
Spare - 1 pc
C
C
A
2
B
C
HARDWARE
F JCB M6 X 25mm(1") - 4 pcs
Spare - 1 pc
D Split Washer - 4 pcs
Spare - 1 pc
Allen Wrench - 1pc
G
Flat Washer - 4 pcs
Spare - 1 pc
1
C
A
C
3
Spare - 1 pc
Spare - 1pc
Adult Assembly
A
