Atlantic Furniture Inc.
READY
655 Page Boulevard Springfield MA, USA 01104 / PH: 413-747-2900 / FAX : 413-747-5900
RICHMOND CRIB
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Thank you for choosing our new Convertible Crib.
This practical Crib design can be used as a baby's crib, a toddler bed and then will convert to a full sized bed.
Before assembling your Richmond Crib, please read through these instructions carefully.
Familiarize yourself with the different parts before starting assembly.
Assembly is to be performed by qualified individuals who have experience with tools and metal fasteners.
Please save these instructions in the envelope attached to the mattress support for future reference.
Allen Key Provided
DAY BED

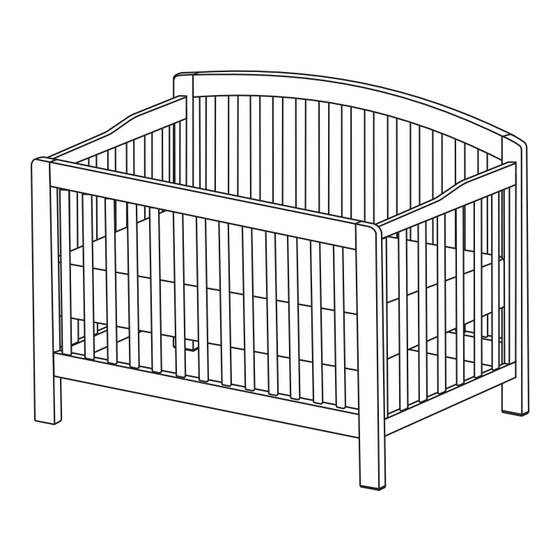

CRIB
TODDLER BED
FULL SIZE BED
BEFORE STARTING ASSEMBLY, READ AND UNDERSTAND ALL DIRECTIONS.
ALL NECESSARY HARDWARE AND TOOLS ARE INCLUDED IN THE HARDWARE KIT.
Page 1 of 6
RICHMOND CRIB
08242007
Advertisement
Related Manuals for Atlantic Furniture RICHMOND CRIB
Summary of Contents for Atlantic Furniture RICHMOND CRIB
- Page 1 This practical Crib design can be used as a baby’s crib, a toddler bed and then will convert to a full sized bed. Before assembling your Richmond Crib, please read through these instructions carefully. Familiarize yourself with the different parts before starting assembly.
-
Page 2: Parts List
RICHMOND CRIB PARTS LIST LABEL STATING ITEM NUMBER AND MANUFACTURER HARDWARE HEADBOARD FOOTBOARD LEFT SIDE PANEL RIGHT SIDE PANEL GUARD RAIL / STRETCHER MATTRESS SUPPORT CRIB BED RAILS ( Purchased Separately ) Page 2 of 6 RICHMOND CRIB 08242007... -
Page 3: Before Assembly
PLACE EACH SCREW OR BOLT ON THE DIAGRAM OF THE ITEM THAT IS SKETCHED ACTUAL SIZE. BE SURE TO USE THE PROPER SIZE AS INSTRUCTED IN THE ASSEMBLY INSTRUCTIONS. IF YOU ARE MISSING ANY PARTS, PLEASE CONTACT YOUR ATLANTIC FURNITURE DEALER OR ATLANTIC FURNITURE 655 PAGE BOULEVARD SPRINGFIELD MA USA 01104, 800-955-3726 OR CONTACT US BY EMAIL info@atlanticframe.com BE SURE TO INCLUDE YOUR ITEM CRIB IDENTIFICATION NUMBER IN YOUR EMAIL. - Page 4 6 position choices Highest Position Lowest Position Install the Mattress Support ( 07 ) to Richmond Crib as Attach the Footboard ( 03 ) to the Side panels ( 04/05 ) , shown, using JCB M6X15mm and Split Washer ( C ).
- Page 5 BY 51 5/8 INCHES (1310mm) IN LENGTH, AND AT LEAST 4 INCHES (100mm) IN THICKNESS, BUT NOT EXCEEDING 6 INCHES (150mm). Your Richmond Crib is now ready for use. WARNING It is important that you recheck all bolts making sure they are tight and that all parts are secure before use and periodically to ensure safety.
- Page 6 DO NOT use crib if parts are damaged or broken! Contact your Atlantic Crib dealer or Atlantic Furniture at ( 413 ) 747-2900, or email info@atlanticframe.com If you are having problems contacting us, you may also visit our website at www.atlanticframe.com...
