READY

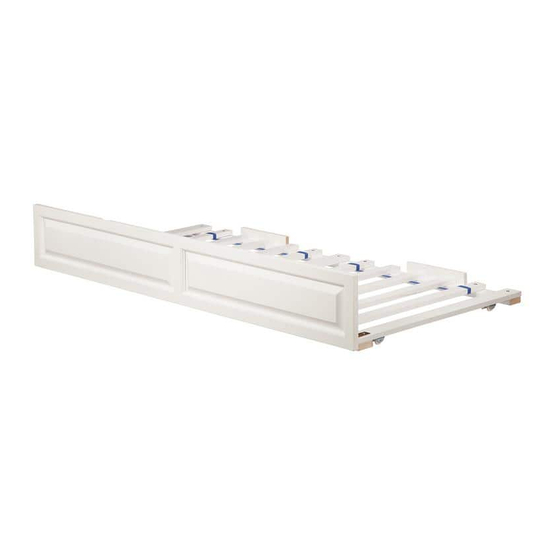

RAISED PANEL TRUNDLE
Before assembling your Raised Panel Trundle, please read through these
instructions carefully, familiarising yourself with the different parts.
BED WITH RAISED PANEL TRUNDLE
A
JCB M6 X 2 "( 50mm ) - 4 pcs
Fix Back Board to Back rail
B
JCB M6 X 1 ½"( 40mm ) - 17 pcs
Fix Side / center cross rail to front / back rail
Fix End Slat to front / back rail
C
JCB M6 X 5/8"( 15mm ) - 6 pcs
Fix L Bracket to Front Panel
RAISED PANEL TRUNDLE
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Thank you for choosing our new Raised Panel Trundle.
This practical design offers the utmost in versatility.
HARDWARE
03182008
E
D
Barrel Nut - 4 pcs
For JCB M6 X 2"(50mm )
E
L Bracket - 3 pcs
F
4mm Allen wrench - 1 pc
Assembling by Adult
Allen wrench
Page 1 of 4
Advertisement
Related Manuals for Atlantic Furniture RAISED PANEL TRUNDLE
Summary of Contents for Atlantic Furniture RAISED PANEL TRUNDLE
- Page 1 ASSEMBLY INSTRUCTIONS Thank you for choosing our new Raised Panel Trundle. This practical design offers the utmost in versatility. Before assembling your Raised Panel Trundle, please read through these instructions carefully, familiarising yourself with the different parts. Assembling by Adult...
-
Page 2: Parts List
Allen wrench BOTTOM VIEW Assembling by Adult Attach the back boards (08) to the back rail (04), using JCB M6 X 2”(A), and barrel nut (D). Tighten with the Allen wrench (F). Page 2 of 4 RAISED PANEL TRUNDLE 03182008... - Page 3 JCB M6 X 5/8” Allen wrench Assembling by Adult Attach the front panel (02) to assembled front rail as shown, using JCB M6 X 5/8” (C). Tighten with the Allen wrench (F). Page 3 of 4 RAISED PANEL TRUNDLE 03182008...
- Page 4 Allen wrench (F) Congratulations ! Your Raised Panel Trundle is now ready for use. We recommend that you recheck that all screws are tightened, and that all parts are secure before use and periodically to ensure safety.
