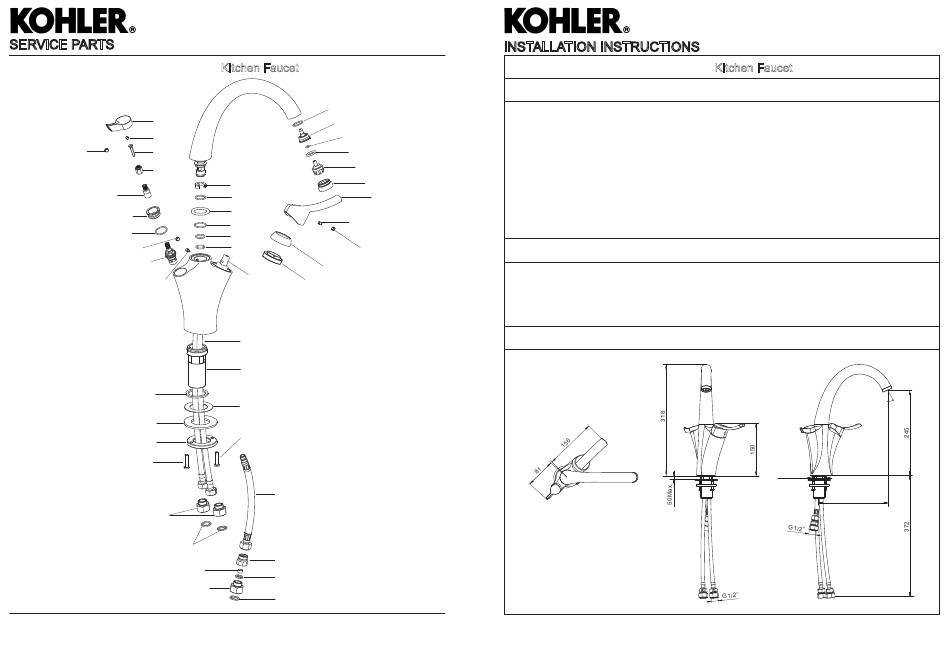

SERVICE PARTS
18866T-B
3002514**
3013706
834705**
3002532
871132
864943
3002509**
871568
834705**
3002511
3002529
871306
1128531
3002530
831587
1229466**
835696
3014047
1229466**
**Color code must be specified when ordering
1230974-2A-C
CARAFE
Kitchen Faucet
870944
1229465
3008150
870487
1067553
3002527**
871633
1066125
3002513**
3002512
833438
871568
871363
870858
834705
CP:834791**
VS:1035121**
834460
834792
3004460
3002510
22352
831587
834706
1229464
830316
835696
Installation INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. For the first time use filtered water, turn the handle on the furthest to remove debris in pipes and the filter until
the water is clear and clean.
3. To ensure the faucet running inorder, the static water pressure must be between 1.72bar and 6.89bar.
4. Please refer to the filter instruction for the application detail.
HANDLE OPERATION
Right handle control hot， cold and mixed water. Lift it gently, turn clockwise for hot water, counter-clockwise for
cold water.
Left handle control the filtered water. It opens with one-quarter turn counter-clockwise, closes with one-quarter
turn clockwise.
ROUGH-IN DIMENSIONS
4
1230974-2A-C
18866T-B
Kitchen Faucet
Ø34~Ø38
CARAFE
24º
196
1
