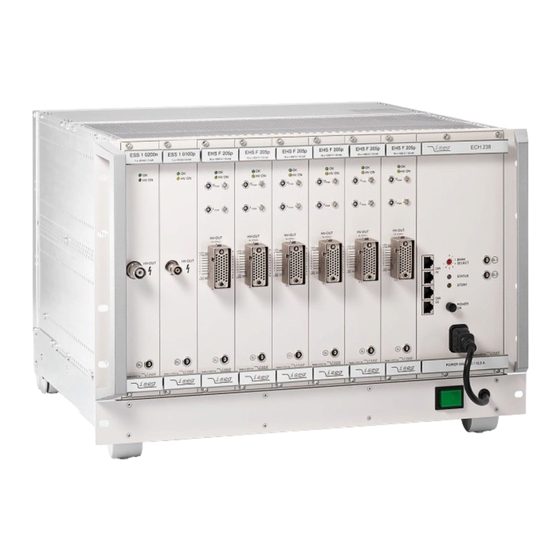

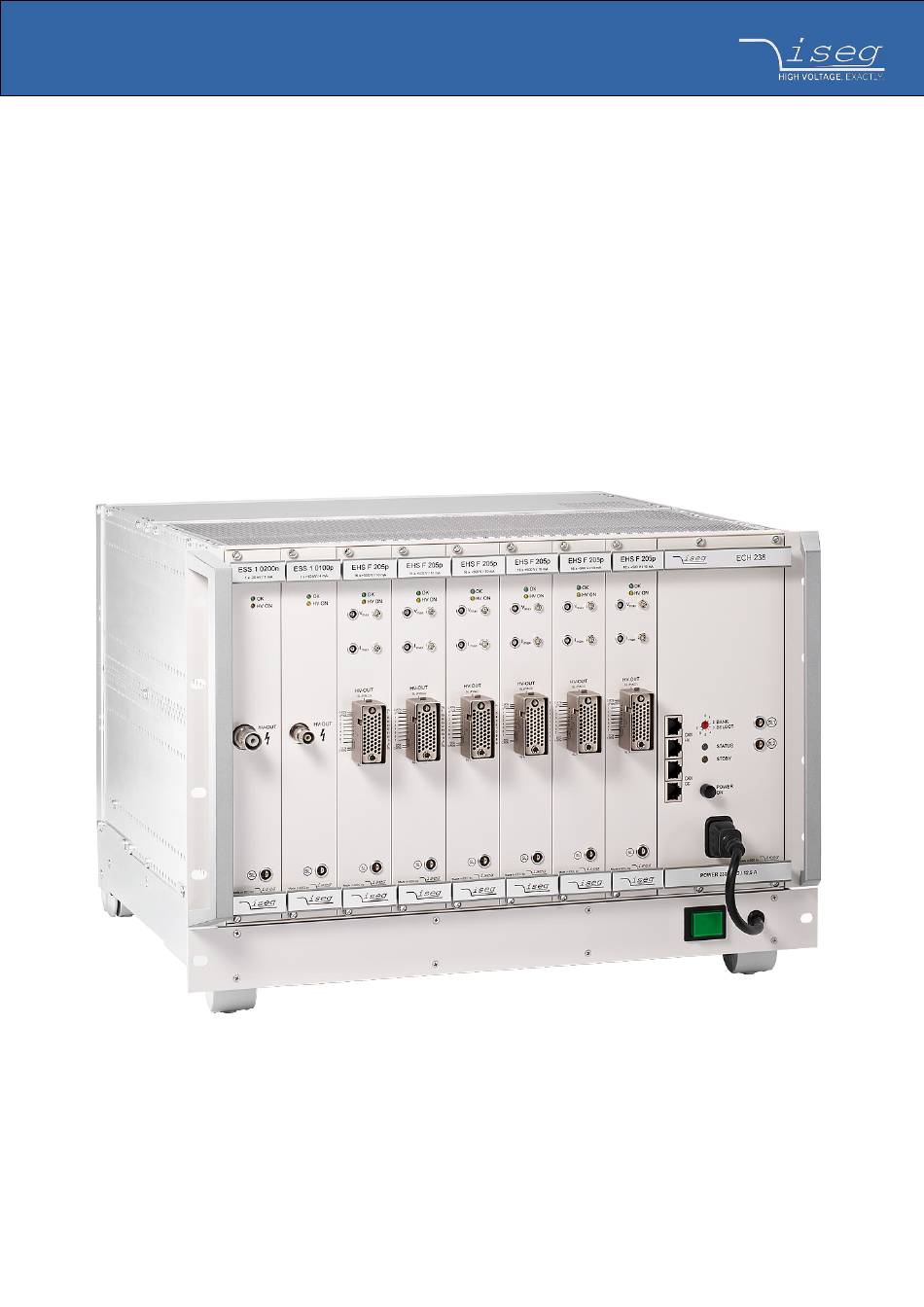

- Page 1 Technical documentation last changed on: 16.09.2020 ECH 238 8 Slot 19” MMS-Crate Series for iseg MMS High Voltage Power Supply Modules up to 8 MMS High Voltage Power Supply Modules • 1200W power • wide range of HV-modules • optional fan unit •...
-
Page 2: Document History
Copyright © 2020 by iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Safety
Advices marked as “Caution!” describe actions to avoid possible damages to property. CAUTION! INFORMATION Advices marked as “Information” give important information. INFORMATION Read the manual. Attention high voltage! HIGH VOLTAGE Important information. ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 3/17... -
Page 4: Intended Use
You may only put the product into operation after it has been established that the high-voltage device complies with • the country-specific regulations, safety regulations and standards of the application. The high-voltage power supply unit may only be installed by qualified personnel. • ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 4/17... -
Page 5: Important Safety Instructions
Do not operate the unit in an explosive atmosphere. WARNING! WARNING! Do not operate the unit if you suspect the unit or the connected equipment to be damaged. WARNING! ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 5/17... - Page 6 When installing the units, make sure that an air flow through the corresponding air inlet and outlet openings is possible. CAUTION! INFORMATION Please check the compatibility with the devices used. INFORMATION ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 6/17...
-
Page 7: Table Of Contents
4.1.5 SAFETY LOOP 2 4.1.6 Bank select switch Forced air cooling Dimensional drawings Connectors and PIN assignments Accesories Order guides Appendix Warranty & Service Disposal Battery Manufacturer contact ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 7/17... -
Page 8: General Information
1 General information These crate devices are used for operating iseg high voltage power supply modules in a desktop compatible case. Up to 8 slots for MMS high voltage modules are provided. Each module is connected to the backplane of the crate by a vendor specific 96 pin connector. -
Page 9: Options
CAUTION! 3.2 Option FAN Optionally the Create can be equipped with the 1U 19" iseg fan unit. This is mounted on the Create. Figure 1: Option: FAN ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com... -
Page 10: Operation And Maintenance
In case of AC power failure the internal voltages are saved by the acc. Battery. If the power is failing more than 10 sec. a signal will be provided , which is going to start a defined shut down procedure. ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 10/17... -
Page 11: Front Panel
Option UPS: Battery load STDBY LED AC-supply ON Option CAN: remote control possible POWER-ON ON – OFF switch Supply SAFETY LOOP 1 SAFETY LOOP 2 ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 11/17... -
Page 12: External Can Bus
Channel iseg HV-modules can work under remote control via PC. If using Multi Channel iseg HV-modules with internal supplied safety loop, bridging the two pins of the SL connector on the front of the crate will be connect the module SL to the current source in the crate. If the module safety loop is active (see the manual of the module) removing the bridge during operation (opening the loop) then the output voltages on all channels are shut off without ramp and the corresponding bit in the ‘Status module’... -
Page 13: Bank Select Switch
4.1.6 Bank select switch The setting of the addresses of the iseg Multi-Channel HV modules is done by setting the address pins at the system connector. From these address pins the module gets the basic information to process the relating identifier bits. In the iseg system crate the address pins are set in same for all modules in the crate. -
Page 14: Dimensional Drawings
5 Dimensional drawings Figure 3: Dimensions ECH 238, without controller ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 14/17... - Page 15 Figure 4: controller C238 ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 15/17...
-
Page 16: Connectors And Pin Assignments
CAN_L CAN low CAN_GND CAN ground 7 Accesories CAUTION! Only use genuine iseg parts like power cables, CAN cables and terminators for stable and safe operation. CAUTION! 8 Order guides CONFIGURATION ORDER GUIDE (item code parts) Type System height System modules... -
Page 17: Warranty & Service
13 Manufacturer contact iseg Spezialelektronik GmbH Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf GERMANY FON: +49 351 26996-0 | FAX: +49 351 26996-21 www.iseg-hv.com info@iseg-hv.de sales@iseg-hv.de ECH 238 – 8 Slot MMS Crate | Last modified on: 16.09.2020 | www.iseg-hv.com 17/17...
