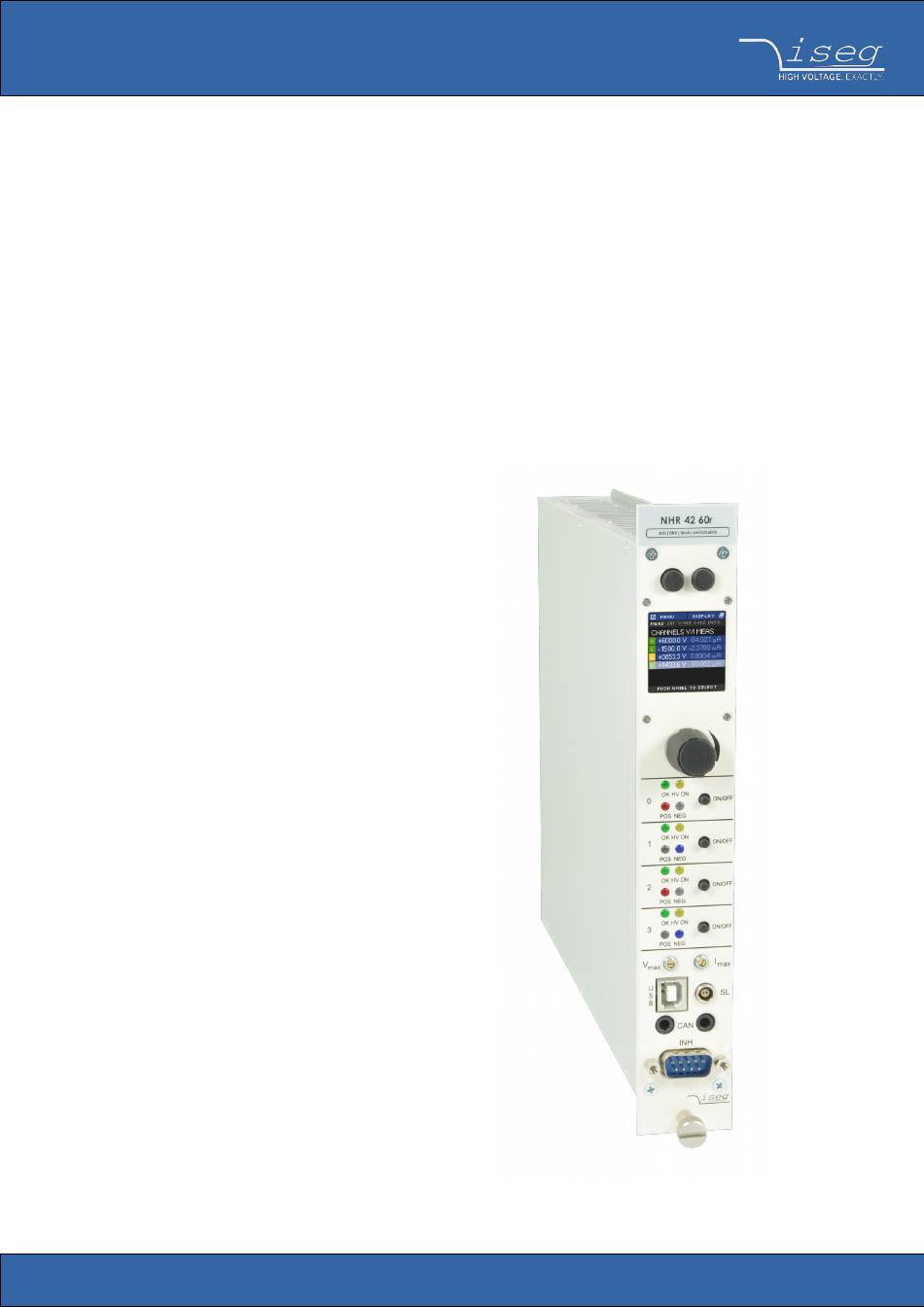

Technical documentation
Last changed on: 25.11.2019
NHR series
Versatile High Precision HV Module in NIM Standard with reversible polarity
4 channel, polarity electronically switchable
•
versatile 6kV-channel with switchable HV-generation modes:
•
6kV/2mA, 4kV/3mA and 2kV/4mA or fixed-mode 2kV/6mA-channel
High Precision and Standard version (High Precision with second current measurement
•
range 20μA for high resolution)
common floating ground
•
ultra low ripple and noise
•
front panel control with 1,44" TFT display
•
voltage and current control per channel
•
programmable parameters
•
hardware voltage and current limits
•
USB and CAN interface
•
www.iseg-hv.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iseg NHR Series
Summary of Contents for iseg NHR Series
- Page 1 Technical documentation Last changed on: 25.11.2019 NHR series Versatile High Precision HV Module in NIM Standard with reversible polarity 4 channel, polarity electronically switchable • versatile 6kV-channel with switchable HV-generation modes: • 6kV/2mA, 4kV/3mA and 2kV/4mA or fixed-mode 2kV/6mA-channel High Precision and Standard version (High Precision with second current measurement •...
-
Page 2: Document History
Copyright © 2020 by iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Safety
Advices marked as “Caution!” describe actions to avoid possible damages to property. CAUTION! INFORMATION Advices marked as “Information” give important information. INFORMATION Read the manual. Attention high voltage! Important information. NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 3/31... -
Page 4: Intended Use
• the country-specific regulations, safety regulations and standards of the application. The high-voltage power supply unit may only be installed by qualified personnel. • NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 4/31... -
Page 5: Important Safety Instructions
Do not operate the unit in an explosive atmosphere. WARNING! WARNING! Do not operate the unit if you suspect the unit or the connected equipment to be damaged. WARNING! NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 5/31... - Page 6 When controlling, with software, the high voltage systems, make sure that nobody is near the high voltage or can be injured. Caution! INFORMATION Please check the compatibility with the devices used. INFORMATION NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 6/31...
-
Page 7: Table Of Contents
T10 – Lower temperature coefficient (HP only) Dimensional drawings Connectors and PIN assignments Accessories Order guides Appendix Glossary Warranty & Service Disposal Manufacturer´s contact NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 7/31... -
Page 8: General Description
Several NHR modules can be daisy-chained by CAN and controlled for example by iseg iCS system. The hardware is made of best components such as 24 bit ADC and 20 bit DAC, the approved front panel control of the NHR series with TFT display allows user-friendly intuitive operation. -
Page 9: Technical Data
INHIBIT, Safety loop, short circuit, overload, hardware V/I limits Overload and short circuit protected (ATTENTION: there is only one short circuit or arc per second allowed!) NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 9/31... - Page 10 4 mA 2 6 kV / 2mA NR042060r405 VCT, IU, ID, TC, L 4kV / 3mA 2kV / 4mA Table 2: Technical data: Configurations NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 10/31...
-
Page 11: Handling
3,5mm audio jack connectors for the CAN interface are located on the front panel. The second CAN connector can be used to daisy-chain several NHR and/or NHS modules. NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 11/31... -
Page 12: Front Panel Control
(V nom / I nom ) USB and Safety Loop connector CAN connectors Single channel Inhibit connector NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 12/31... -
Page 13: Main Screen (Channel List)
5. Channel list and rotary encoder function The channel list shows-dependent on the display mode-measure and/or set values of voltage and current for each channel. NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 13/31... -
Page 14: Menu Screen
To enter a menu entry, the user has to mark an entry by turning rotary encoder and then pressing the rotary encoder button. The selected entry is then shown in the menu path. back to menu screen menu path subentries NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 14/31... -
Page 15: Menu Structure
− Shows supply voltages and temperature − − Shows serial number, INFO firmware name and release, nominal voltage and current Table 4: Menu Structure NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 15/31... -
Page 16: Editing Menu Entries
A submit and save of the selected value is done by pressing and holding the rotary encoder button for more than one second. NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 16/31... -
Page 17: Channel Details
(constant voltage / constant current) set (orange) or measured (white) values of voltage and current of the selected channel NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 17/31... -
Page 18: Editing Channel Set Values
The channel is turned on and there is output voltage at the channel. flashing The channel is ramping up or down Table 5: LED Status information NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 18/31... -
Page 19: Remote Control
The jumper can be accessed via a ventilation slot on the bottom of the module (see dimensional drawings for exact position NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 19/31... -
Page 20: Single Channel Inhibit
Shut down all channels without ramp • When the INHIBIT is no longer active, the Inhibit flag must be reset before the voltage can be switched on again. NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 20/31... -
Page 21: Floating Gnd Configuration
> 20 µA to a value < 20 µA or vice versa. If it is intended to switch the current measurement range, the channel must be switched off or KillEnable must be deactivated for altering the current set value. NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 21/31... -
Page 22: Delayed Trip
To guarantee a sufficient resolution for the current set values, a nominal current adequate to the application should be selected. iseg offers HV modules with nominal currents reduced to 100 μA in all voltage classes. These are designated e.g. for semiconductor detectors, which only require a few microampere operating current. -
Page 23: Options
The VCT data points are described in the reference manual CAN EDCP Programmers-Guide (see appendix) and in the • manual iseg Hardware Abstraction Layer (see appendix). NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 23/31... -
Page 24: Single Channel Inhibit (Iu, Id, Niu, Nid)
The output current is limited to a lower value, e.g. 100 µA. 4.4 T10 – Lower temperature coefficient (HP only) Improved temperature coefficient of 10ppm/K NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 24/31... -
Page 25: Dimensional Drawings
5. Dimensional drawings Figure 1: Dimensional drawings, NHR 4 channels NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 25/31... - Page 26 Figure 2: Dimensional drawings, NHR 2 channels Figure 3: Detail of Figure 1, 2 for “SL” Jumper Figure 4: Detail of Figure 1, 2 for “CFG - CG” Jumper NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 26/31...
-
Page 27: Connectors And Pin Assignments
57K101-006N3 / Z590162 S08 (RADIALL) Socket R317.580.000 Connector R317.005.000 / Z592474 Safety Loop (LEMO) Socket Connector FGG.00.302.CLAD30 Connector KLS44 Tabelle 9: Connectors part number information NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 27/31... -
Page 28: Accessories
7. Accessories CAUTION! Only use genuine iseg parts like power cables, CAN cables and terminators for stable and safe operation. CAUTION! ACCESSORY ITEM ORDER ITEM CODE CAN to host: from Jack plug 3.5mm to D-SUB female Z515404 CAN daisy-chain: from Jack plug 3.5mm to Jack plug 3.5mm Z515554 VCT Sensor cable: 10m: from Jack plug 2.5mm (2pol) to Probe... -
Page 29: Appendix
SCPI Programmers-Guide https://iseg-hv.com/download/SOFTWARE/isegSCPI/SCPI_Programmers-Guide.pdf CAN EDCP Programmers-Guide https://iseg-hv.com/download/SOFTWARE/isegEDCP/CAN_EDCP_Programmers-Guide.pdf isegHAL (Hardware Abstraction Layer) https://iseg-hv.com/download/SOFTWARE/iCS/doc/isegHAL/index.html iCSservice-API https://iseg-hv.com/download/SOFTWARE/iCS/doc/iCSservice/iCSapiWebsocket_Docu.html https://iseg-hv.com/download/SOFTWARE/iCS/doc/iCSservice/iCSapiWebsocket_Example.html isegIOC (EPICS Input / Output Controller) https://iseg-hv.com/download/SOFTWARE/iCS/doc/isegIOC/isegIOC_doc.pdf https://iseg-hv.com/download/SOFTWARE/iCS/doc/isegIOC/isegIOC_sampleScript.zip isegTERMINAL https://iseg-hv.com/download/?dir=SOFTWARE/isegTERMINAL/current NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 29/31... -
Page 30: Glossary
Reference temperature HV ON/OFF HV OFF/ON channel(s) high voltage low voltage signal ground Inhibit Polarity KILL KillEnable NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 30/31... -
Page 31: Warranty & Service
Spezialelektronik GmbH Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf GERMANY FON: +49 351 26996-0 | FAX: +49 351 26996-21 www.iseg-hv.com info@iseg-hv.de sales@iseg-hv.de NHR – NIM standard High Voltage Power Supply | Last changed on: 25.11.2019 | www.iseg-hv.com 31/31...
