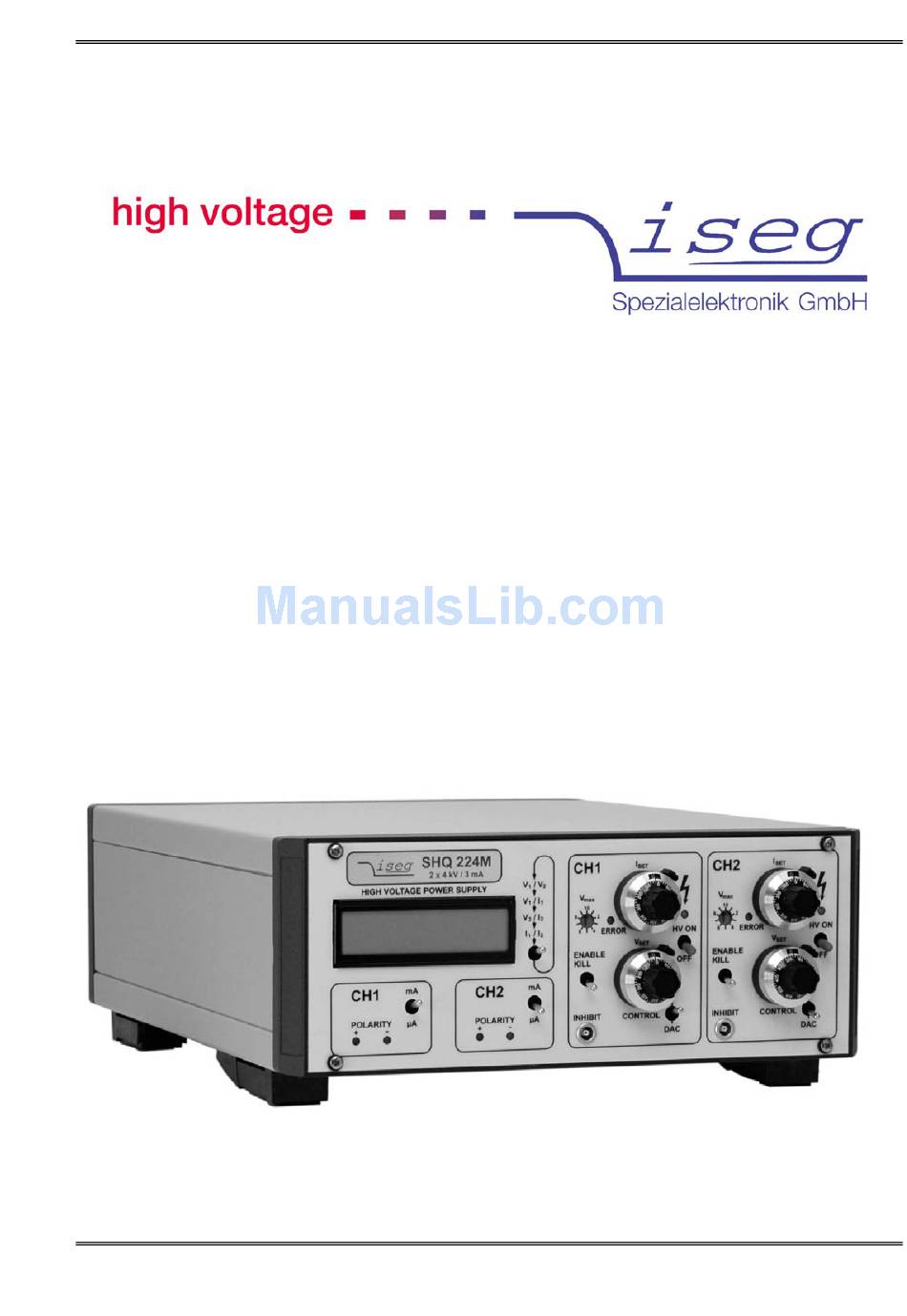

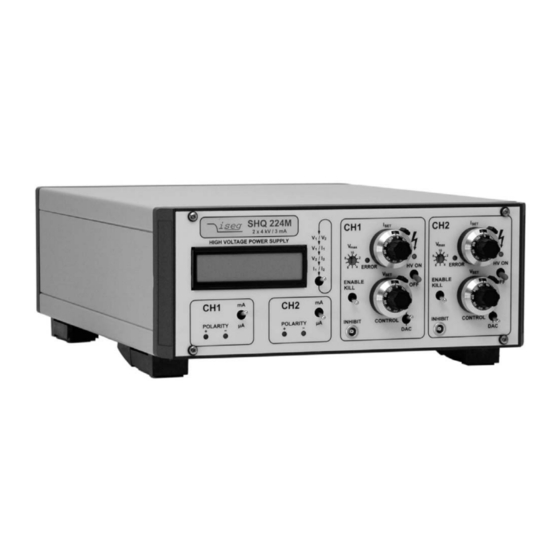

- Page 1 Operator’s Manual High Voltage Power Supply SHQ HIGH PRECISION series iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. 23 http://www.iseg-hv.com ++ 49 (0)351 / 26 996 – 21 D - 01454 Radeberg / Rossendorf...
- Page 2 Violation of guidelines marked with „Attention!“ can lead to damages of the unit or the application Text marked with „Note!“ point at specialties or options. Revision of document: 2014-02-13-17-34 iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. 23 http://www.iseg-hv.com...
-
Page 3: Table Of Contents
Table 1: Technical Data, Device class............................ 6 Table 2: Overview KILL function............................13 Table 3: Signal pin assignment.............................. 14 Table 4: Command set ................................15 iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com... -
Page 4: Safety Notes
We decline all responsibility for damages and injuries caused by an improper use of the module. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. -
Page 5: General Information
• Simultaneous display of current and voltage in a High Resolution format on the 2-line LCD • Output short circuit and overload protection iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com... -
Page 6: Technical Data And Auxiliary Information
Technical Data and auxiliary information 2.2.1 Device class Table 1: Technical Data, Device class TECHNICAL DATA HIGH PRECISION Single channel HV Power Supply SHQ 122 SHQ 124 SHQ 126 Dual channel HV Power Supply SHQ 222 SHQ 224 SHQ 226... -
Page 7: Functional Principle
Filter A special feature of the unit is a tuned filtering concept, which prevents perturbation of the unit by external electromagnetic radiation, as well as the emittance of interferences by the module. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com... -
Page 8: Floating Hv-Outputs
47 V HV-0V (HV-GND) HV-out 2 / SHV connector (positve or negative) PE / Chassis iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. 23 http://www.iseg-hv.com ++ 49 (0)351 / 26 996 – 21... -
Page 9: Operation
The mains supply (including switch and fuse), a 9-pin female D-Sub connector for the RS 232 interface, the HV-outputs and the polarity switches are located on the rear side. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com... -
Page 10: Power Up And Operational Conditions
(manual control), at the HV-output on the rear side high voltage is generated according to the set voltage chosen via the 10-turn potentiometer with a ramp speed of 500 V/s (hardware ramp). iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. -
Page 11: Remote Control ("Control" In Lower Position)
If the threshold is reached the channel will be switched off. A detailed description of remote control commands can be found in chapter 5.1.2 iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com... -
Page 12: Transition Manual Control Remote Control
Option IWP: With this Option, the 10 percent switch of Imax is replaced with a 10-turn potentiometer. Smaller steps for current limitation are possible. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. 23 http://www.iseg-hv.com... -
Page 13: Operation Check
LCD. The read LED (“ERROR”) must stay off and the displayed value for the current of the channel should be below 0.2% I iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com... -
Page 14: Rs232 Interface
3-lead cable ─┐ ─┐ ─┤ ─┤ ─┘ ─┘ iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. 23 http://www.iseg-hv.com ++ 49 (0)351 / 26 996 – 21 D - 01454 Radeberg / Rossendorf... -
Page 15: Syntax
Quality of output voltage not given at present Output voltage increasing Output voltage decreasing Look at Status (only after G-command) Current trip was active iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com... - Page 16 Save Current trip to EEPROM at POWER-ON! Save Set voltage to EEPROM Save Ramp speed to EEPROM (EEPROM guarantees 1 million saving cycles) iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr. 23 http://www.iseg-hv.com ++ 49 (0)351 / 26 996 –...
- Page 17 Polarity HV-Filter OUTPUT switch HV-Transformer Channel 2 OUTPUT iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 (0)351 / 26 996 – 0 Bautzner Landstr 23 http://www.iseg-hv.com ++ 49 (0)351 / 26 996 – 21 D - 01454 Radeberg / Rossendorf...
- Page 18 S p e z i a l e l e k t r o n i k G m b H Appendix B Accessories Item iseg order number HV cable 5m SHV-coupling one sided up to 6kV SHV_CAB5 HV cable 5m SHV-coupling both sides up to 6kV...
