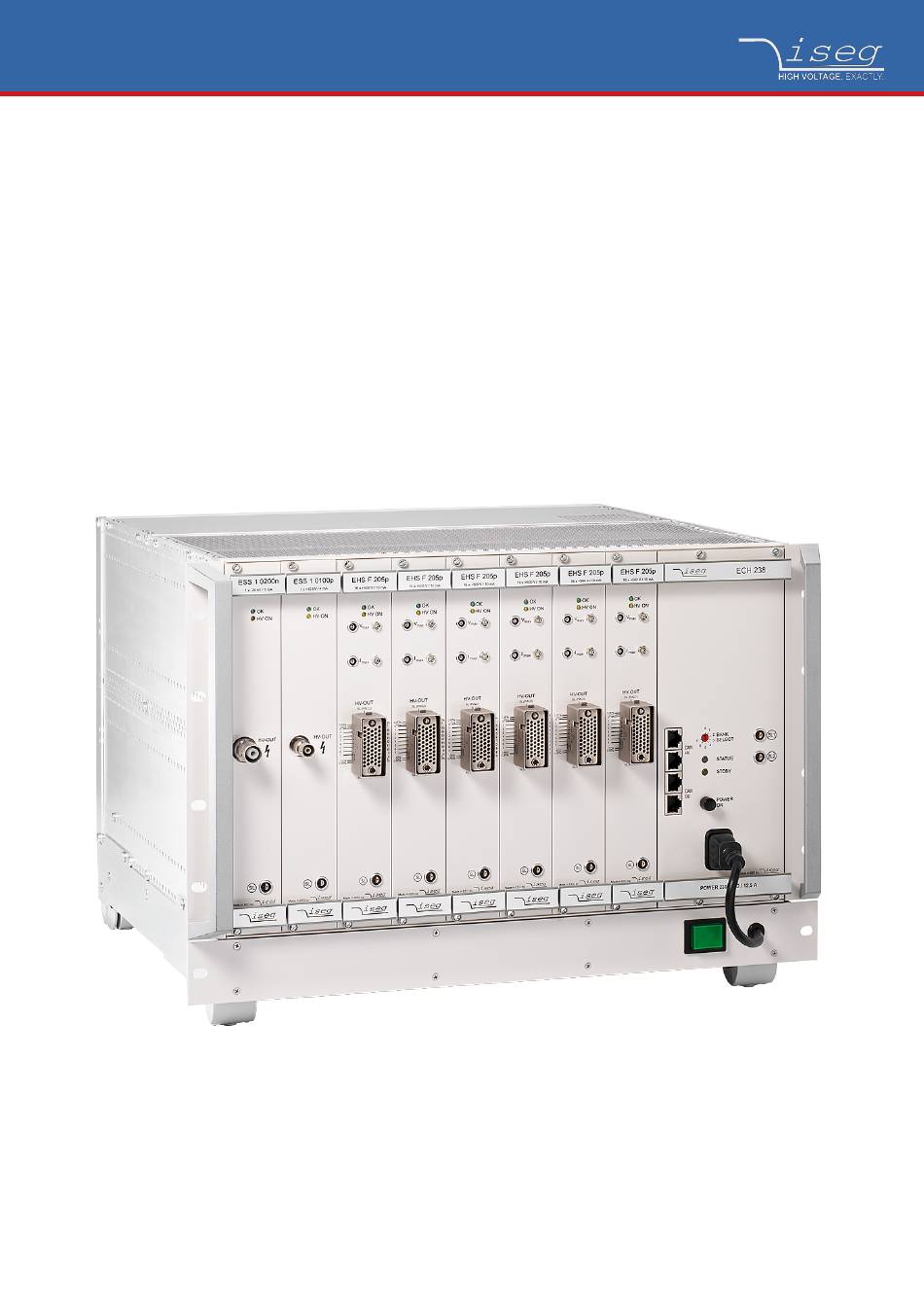

- Page 1 Technical documentation last changed on: 2021-12-17 ECH 238 8 Slot 19” MMS-Crate Series for iseg MMS High Voltage Power Supply Modules up to 8 MMS High Voltage Power Supply Modules • 1200W power • wide range of HV-modules • optional fan unit •...
-
Page 2: Document History
Copyright © 2021 by iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Safety
Advices marked as “Caution!” describe actions to avoid possible damages to property. CAUTION! INFORMATION Advices marked as “Information” give important information. INFORMATION Read the manual. Attention high voltage! HIGH VOLTAGE Important information. ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 3/26... -
Page 4: Intended Use
You may only put the product into operation after it has been established that the high-voltage device complies with • the country-specific regulations, safety regulations and standards of the application. The high-voltage power supply unit may only be installed by qualified personnel. • ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 4/26... -
Page 5: Important Safety Instructions
Do not operate the unit in an explosive atmosphere. WARNING! WARNING! Do not operate the unit if you suspect the unit or the connected equipment to be damaged. WARNING! ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 5/26... - Page 6 Wear suitable personal protective equipment for all work on the product. • CAUTION! Use suitable transport and lifting equipment. • INFORMATION Please check the compatibility with the devices used. INFORMATION ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 6/26...
-
Page 7: Table Of Contents
Dimensional drawings Connectors and PIN assignments Safety Loop socket (SL1) INHIBIT (SL2) CAN HV / CAN CC (RJ45) Accesories Order guides Appendix Warranty & Service ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 7/26... - Page 8 Disposal Battery Manufacturer contact ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 8/26...
-
Page 9: General Information
1 General information These crate devices are used for operating iseg high voltage power supply modules in a desktop compatible case. Up to 8 slots for MMS high voltage modules are provided. Each module is connected to the backplane of the crate by a vendor specific 96 pin connector. -
Page 10: Technical Data
450mm / 19” / 6U Option FAN 450mm / 19” / 7U Weight Up to 21 kg Notes: with OPTION UPS and FAN Table 3: Technical data ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 10/26... -
Page 11: Controller - Cc238
10 sec. a signal will be provided, which is going to start a defined shut down procedure. Table 4: Technical data CC238 ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 11/26... -
Page 12: Overview
STATUS LED POWER-ON 6.5 Status LEDs STDBY LED AC-supply ON 6.5 Status LEDs POWER-ON ON – OFF switch Supply Main power Table 3: Technical data Table 5 ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 12/26... -
Page 13: Operation And Maintenance
6 Operation and maintenance 6.1 FAN unit (optionally) Optionally the Create can be equipped with the 1U 19" iseg fan unit. This is mounted on the Create. Figure 2: Option: FAN unit 6.2 UPS (optionally) WARNING! Batteries and rechargeable batteries do not dispose in regular residual waste. You are legally obliged to return used batteries and rechargeable batteries to a municipal collection point or to local retailers. -
Page 14: Safety-Loop
Make sure that the safety loop cable is well shielded. Use shielded twisted pair cables. Otherwise there may be interference (noise) on the high voltage. INFORMATION ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 14/26... - Page 15 Figure 4: safety loop circuit Figure 5: ECH 238 with HV modules Figure 6: sample Jumper configuration on back side the high voltage Modules ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 15/26...
-
Page 16: Sl2 - Inhibit
6.6 Bank select switch The setting of the addresses of the iseg Multi-Channel HV modules is done by setting the address pins at the system connector. From these address pins the module gets the basic information to process the relating identifier bits. In the iseg system crate the address pins are set in same for all modules in the crate. -
Page 17: Forced Air Cooling
INFORMATION Further it is recommended to cover unused module slots with blind front panels (see chapter 9 Accesories) to provide optimal airflow and cooling performance. INFORMATION ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 17/26... -
Page 18: Can-Interface
6.6 Bank select switch, on the front panel (Figure 1: Front panel cutout). After Switch ON and system initialization of CANbus the connected Multi Channel iseg HV-modules can work under remote control via PC. -
Page 19: Dimensional Drawings
7 Dimensional drawings Figure 8: ECH 238, button view with Fan unit ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 19/26... - Page 20 Figure 9: ECH 238, front view with Fan unit Figure 10: ECH 238, back view with Fan unit ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 20/26...
- Page 21 Figure 11: ECH 238, side view with Fan unit ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 21/26...
- Page 22 Figure 12: Fan unit ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 22/26...
- Page 23 Figure 13: controller CC238 ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 23/26...
-
Page 24: Connectors And Pin Assignments
8.2 INHIBIT (SL2) NAME DESCRIPTION VALUE Ramp Down 8.3 CAN HV / CAN CC (RJ45) NAME DESCRIPTION VALUE CAN_H CAN high CAN_L CAN low CAN_GND CAN ground ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 24/26... -
Page 25: Accesories
9 Accesories CAUTION! Only use genuine iseg parts like power cables, CAN cables and terminators for stable and safe operation. CAUTION! ACCESSORY ITEM ORDER ITEM CODE Short circuit connector (SL) Z580773 AC power line cable Z592069 Front panel (blind) RAL9001 6U/8HP Z514569 CAN Termination RJ45, 120Ω... -
Page 26: Warranty & Service
15 Manufacturer contact iseg Spezialelektronik GmbH Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf GERMANY FON: +49 351 26996-0 | FAX: +49 351 26996-21 www.iseg-hv.com info@iseg-hv.de sales@iseg-hv.de ECH 238 – 8 Slot MMS Crate | Last modified on: 2021-12-17 | www.iseg-hv.com 26/26...
