Installation
3.6.2
A-96.250.111 / 161120

Connect the pH Electrode to the Transmitter

WARNING
Risk of electrical shock
Installation and maintenance of electrical parts must be per-
formed by professionals. Always turn off power before manipulat-
ing electric parts.

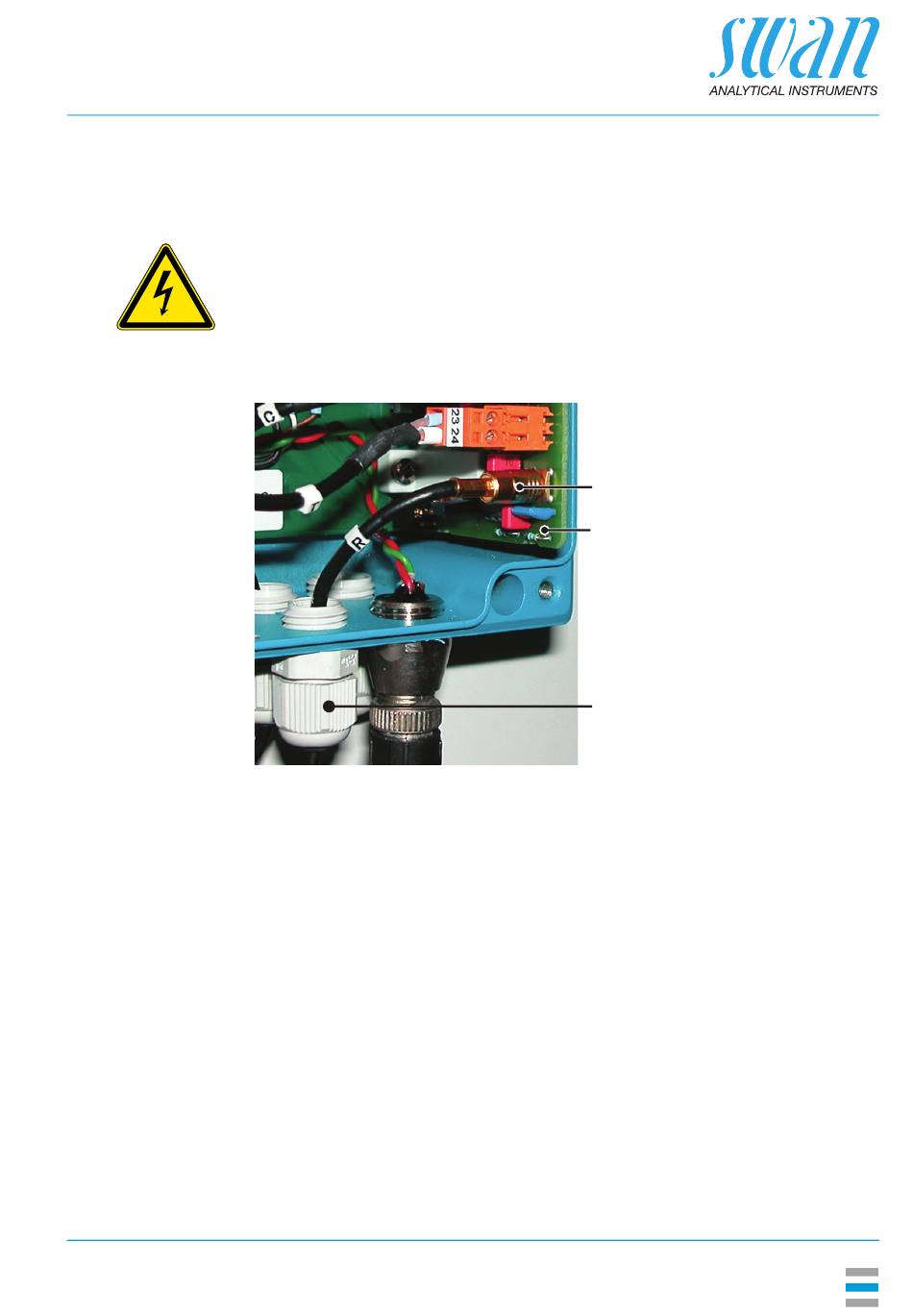

1 Open the transmitter housing
2 Feed the cable of the electrode through one of the PG 7 cable
glands [C] into the transmitter housing.
3 Connect the coaxial plug [A] to the plug on the front end PCB [B].
4 Close the transmitter housing.
5 Switch on the instrument.
A
B
C
