Table of Contents
- 1 Step 1: Peel the Label off the End Cap.
- 2 Step 2: Remove the Two Screws.
- 3 Step 3: Slide the Port Cover over and Remove the Third Screw.
- 4 Step 4: Remove the Fill Plug and Clean out any Remaining Toner.
- 5 Step 5: When a Seal Is Available, Install It Now.
- 6 Step 7: Install the End Cap on the Cartridge.
- 7 Step 8: Install the Three Screws and Install the Label.
- 8 Step 9: Remove the Screw on the Chip. Replace the Chip.
- Download this manual
KONICA
MINOLTA MAGICOLOR 4600 SERIES
®
EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS

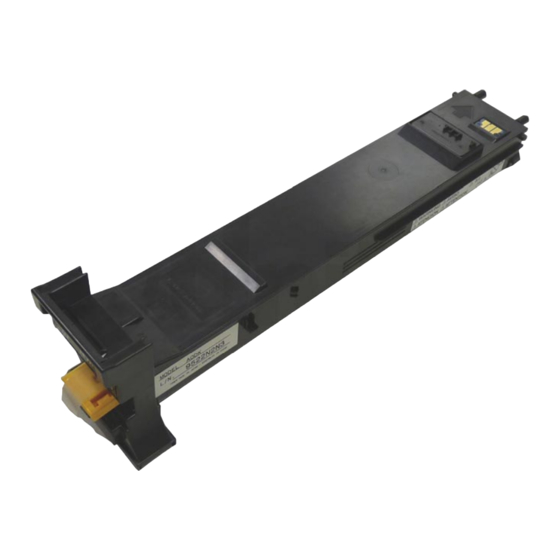

KONICA MINOLTA MAGICOLOR 4600 SERIES TONER CARTRIDGE
www.uninetimaging.com
© 2012 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only.
UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact techsupport@uninetimaging.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Konica Minolta MAGICOLOR 4600 Series
Summary of Contents for Konica Minolta MAGICOLOR 4600 Series
- Page 1 ® EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS KONICA MINOLTA MAGICOLOR 4600 SERIES TONER CARTRIDGE www.uninetimaging.com © 2012 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only.
- Page 2 By Mike Josiah and the Technical Staff at UniNet The Konica Minolta Magicolor 4600 Series cartridges are rated for 8,000 pages. The OEM numbers are A0DK132 Black, A0DK432 Cyan, A0DK332 Magenta, and A0DK232 Yellow. There is a chip that must be replaced every cycle.
- Page 3 KONICA MINOLTA MAGICOLOR 4600 SERIES EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS 3. Slide the port cover over and remove the third screw. 4. Remove the fill plug and clean out any remaining toner. Remove the end cap. This fill plug is very soft. Be careful not to put a hole in it.
- Page 4 KONICA MINOLTA MAGICOLOR 4600 SERIES EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS 7. Install the end cap on the cartridge. If a seal was installed, thread it through the slot. Set the port drive gear as shown and make sure it meshes properly.
- Page 5 KONICA MINOLTA MAGICOLOR 4600 SERIES EASY TO REMANUFACTURE CARTRIDGE INSTRUCTIONS 10. If a seal tab is available, install it on the seal and insert it into the cartridge as shown. www.uninetimaging.com © 2012 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only.
