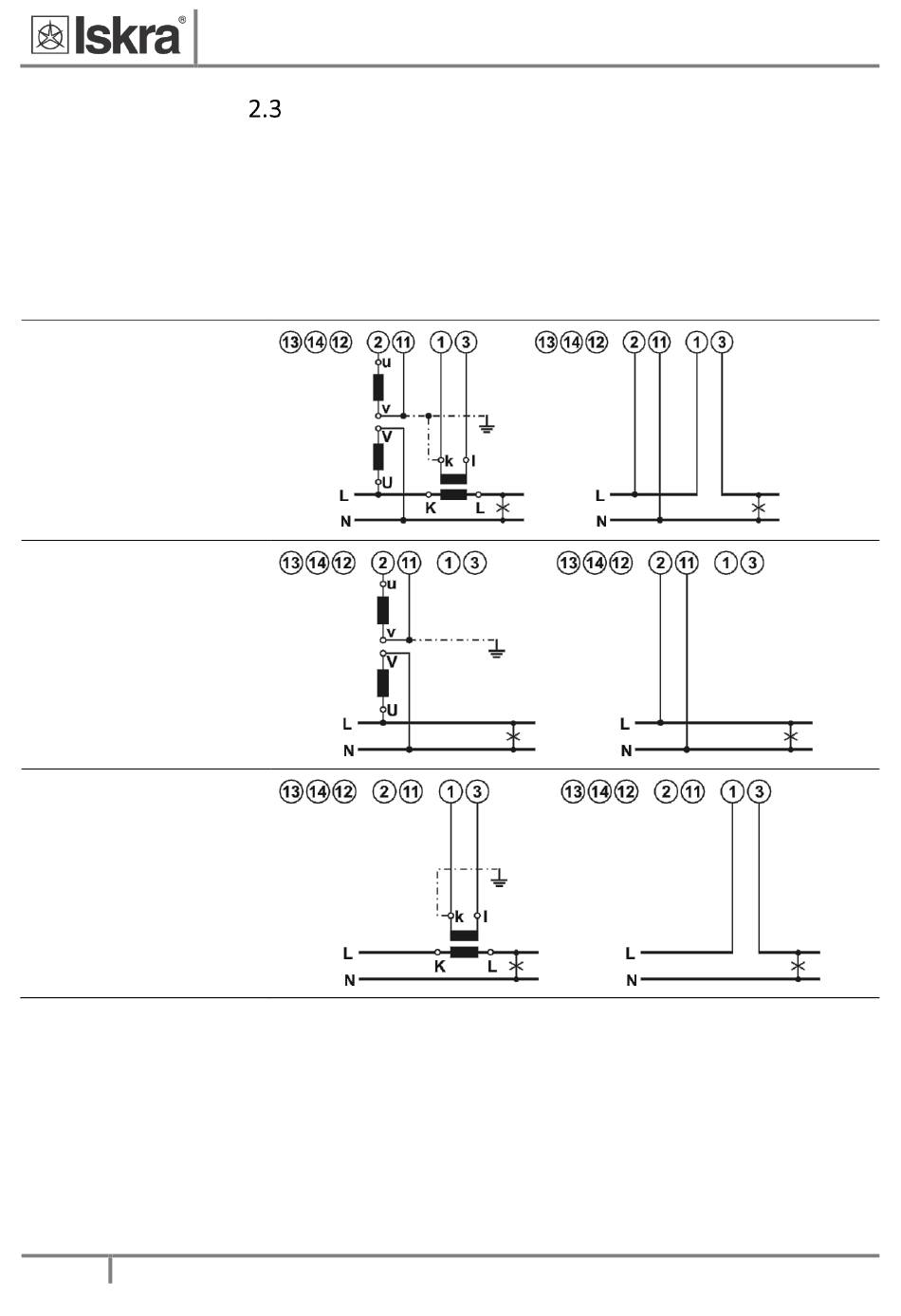

System/connection
Connection 1b (1W)
Single-phase connection
(U)MT 510/511
Connection 1b (1W)
Single-phase connection
(U)MT 516
Connection 1b (1W)
Single-phase connection
(U)MT 518
8
Electrical connection 
Voltage inputs of measuring transducer can be connected directly to low-voltage network or via
appropriate voltage measuring transformer to medium or high voltage network.
Current inputs of measuring transducer can be connected directly to low-voltage network or via a
corresponding current transformer.
Choose corresponding connection from the figures below and connect corresponding voltages and
currents. Information on electrical characteristics is given in chapter Inputs.
Terminal assignment
CONNECTION
