Iskra iMT406 User Manual

Iskra iMT406 User Manual

Voltage/current transducer

Advertisement

Quick Links

Voltage Transducer iMT406

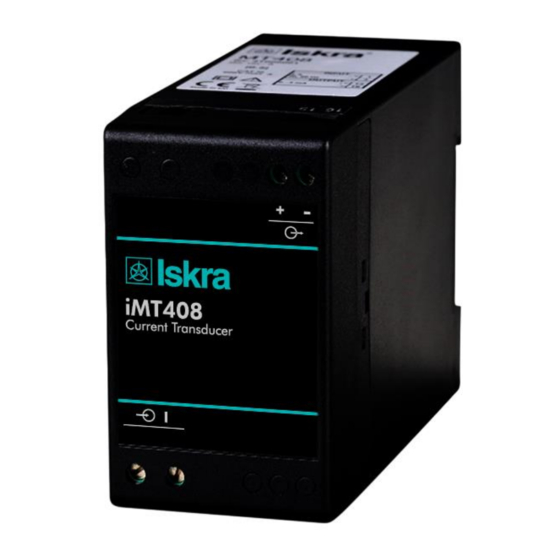

Current Transducer iMT408
July 2021 • Version 1.00
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMT406 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Iskra iMT406

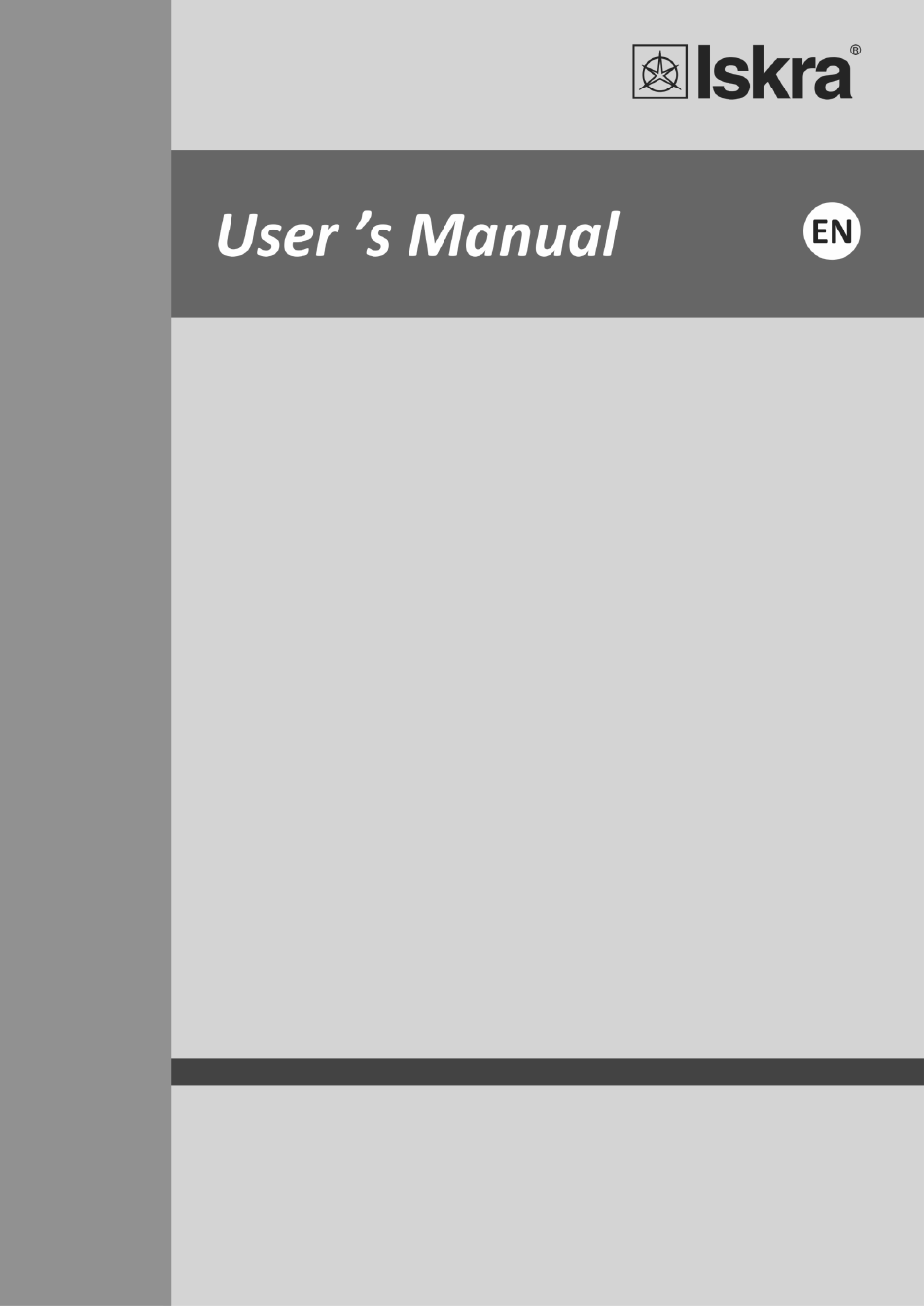

  • Page 1 Voltage Transducer iMT406 Current Transducer iMT408 July 2021 • Version 1.00 User’s Manual...
  • Page 2 Voltage Transducer iMT406 Current Transducer iMT408 User and Installation manual User’s Manual...
  • Page 3 ISKRA d.o.o. assumes no responsibility in connection with installation and use of the product. If there is any doubt regarding installation and use of the system in which the device is used for measuring or supervision, please contact a person who is responsible for installation of such system.
  • Page 4 Used symbols on devices’ housing and labels SYMBOL EXPLANATION WARNING Indicates situations where careful reading of this manual is required and following requested steps to avoid potential injury is advised. Double insulation in compliance with the SIST EN 61010−1 standard. Compliance of the product with directive 2002/96/EC, as first priority, the prevention of waste electrical and electronic equipment (WEEE), and in addition, the reuse, recycling and other forms of recovery of such wastes so as to reduce the...
  • Page 5: Table Of Contents

    ASIC DESCRIPTION AND OPERATION Table of contents BASIC DESCRIPTION AND OPERATION NTRODUCTION ESCRIPTION OF THE DEVICE URPOSE AND USE OF DIFFERENT TYPES OF MEASURING TRANSDUCERS CONNECTION NTRODUCTION OUNTING LECTRICAL CONNECTION ONNECTION TECHNICAL DATA PPLIED STANDARDS CCURACY ECHANICAL CHARACTERISTICS OF INPUT LECTRICAL CHARACTERISTICS OF INPUT AFETY FEATURES IMENSIONS...
  • Page 7: Basic Description And Operation

    ASIC DESCRIPTION AND OPERATION BASIC DESCRIPTION AND OPERATION The following chapter presents basic information about multifunction transducers required to understand its purpose, applicability and basic features connected to its operation. In this chapter you will find: NTRODUCTION ESCRIPTION OF THE DEVICE URPOSE AND USE OF DIFFERENT TYPES OF MEASURING TRANSDUCERS User’s Manual...
  • Page 8 ASIC DESCRIPTION AND OPERATION Introduction The iMT406 and iMT408 are voltage / current transducers with minimal differences in functionality. Where there are some characteristic features that denote iMT406 or iMT408 symbol next to data. 1.1.1 Description of symbols Subchapter Symbols next to the subchapters indicate accessibility of functions described. Accessibility of functions...
  • Page 9 1.3.1 Voltage transducer iMT406 The iMT406 voltage transducer is used for a permanent monitoring of a single-phase voltage value. PLCs, PCs, microprocessor control, indicators, alarms units etc. can be operated by the output signal. Voltage input can be connected either directly to low-voltage network or shall be connected to network via a corresponding voltage transformer (with standard 100 V output).
  • Page 10: Connection

    Only a qualified person shall therefore perform connection. Iskra d.o.o. does not take any responsibility regarding the use and connection. If any doubt occurs regarding connection and use in the system, which device is intended for, please contact a person who is responsible for such installations.
  • Page 11: Mounting

    CONNECTION Introduction iMT406: A circuit breaker with current rating of 6A shall be included in close proximity with measuring voltage circuit as a means of disconnection. iMT408: In case the current transformer (CT) is used, a care must be taken to never open circuit a CT secondary while the primary is energised.
  • Page 12: Connection

    System/connection Terminal assignment iMT406 Voltage measurement iMT408 Current measurement Connection Function Connection I  AC current Measuring input: U  AC voltage 2/11 +  Analogue output: –  User’s Manual...
  • Page 13: Technical Data

    TECHNICAL DATA TECHNICAL DATA In following chapter all technical data regarding operation of multifunction transducers is presented. PPLIED STANDARDS CCURACY ECHANICAL CHARACTERISTICS OF INPUT LECTRICAL CHARACTERISTICS OF INPUT AFETY FEATURES IMENSIONS User’s Manual...
  • Page 14 Frequency influence: 0,5% / ( 10Hz) Δ Burden influence: 0,1% / ( / 2) Δ R bmax Measured values iMT406 Reference value: Output end value Basic accuracy: Class 0.5 Reference conditions: Voltage 20% … 100% x U Ambient temperature range 15 …...
  • Page 15 TECHNICAL DATA Electrical characteristics of input Voltage input iMT406 57,7, 63.5, 69.3, 100, 110, 115, 120, 127, 220, 230, 240, 250, 380, Standard nominal input voltage (U 400, 415, 440, 500 V Measuring range limit values 0...50 V to 0...500 V Overload capacity: acc.
  • Page 16 Double insulation on all connectors ( analogue output, voltage / current input and RS232/485 Com port) Pollution degree Installation category CAT III 600V iMT406 > 300Vac CAT III 300V iMT406 ≤ 300Vac CAT III 300V iMT408 Test voltages 50 Hz, 1 min. acc to EN61010-1 5200 V, measuring input versus measuring output and...
  • Page 17 TECHNICAL DATA Dimensions Construction Appearance Measuring transducers iMT406/408 User’s Manual...
  • Page 18 Root Mean Square value TRMS True Root Mean Square value MODBUS Industrial protocol for data transmission MiQen Software for Iskra MIS instruments Alternating voltage, current Direct voltage, current Total harmonic distortion Measurement of average values in time interval (Maximum Demand) − Sample factor Defines a number of periods for measuring calculation on the basis of measured frequency −...
  • Page 19 Published by Iskra, d.o.o. • Subject to change without notice • Version 1.00 July 2021 • EN K22.496.903...

This manual is also suitable for:

Imt408
