INSTRUCTION GUIDE
Congratulations on your purchase of a high quality PUTCO
you need any application or technical assistance, feel free to call us at:
Monday-Friday 8:00am - 5:00pm (Central Standard Time)
Contact your PUTCO
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION
AND CHECK TO SEE THAT ALL PARTS ARE INCLUDED

REQUIRED TOOLS

T40 TORX DRIVER
TOYOTA TACOMA
1-800-247-3974
dealer for other quality accessories.
®
T30 TORX DRIVER
PHILLIPS SCREWDRIVER

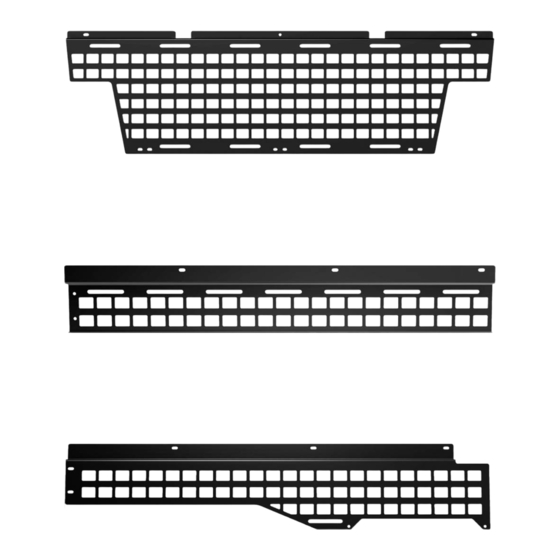

CONTENT LIST

`
DESCRIPTION
Molle Front Plate
Molle Side Plates
Side Brackets
Front Brackets
M6 Torx-Head Bolts
8-32 Philip's-Head Screws
5/16 Well Nuts
product. Should
®
QT Y
1953XXI
1
2
2
3
10
3
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Molle Panels and is the answer not in the manual?

Questions and answers

Summary of Contents for PUTCO Molle Panels

  • Page 1 INSTRUCTION GUIDE TOYOTA TACOMA Congratulations on your purchase of a high quality PUTCO product. Should ® you need any application or technical assistance, feel free to call us at: 1-800-247-3974 Monday-Friday 8:00am - 5:00pm (Central Standard Time) Contact your PUTCO dealer for other quality accessories.
  • Page 2 MOLLE Panels Instruction Guide INSTALLATION INSTRUCTIONS Unscrew and remove both in-bed rails using a T30 Torx driver. Using a T40 Torx driver, unscrew and remove the two tie-down hooks located towards the front of the bed. Place the supplied side brackets behind the tie-down hooks, then fasten to the bed re-using factory hardware.
  • Page 3 Fasten the molle plates to their brackets using the supplied M6 bolts and a T30 Torx driver. Once all the plates are installed in the vehicle, ensure all fasteners are tightened until snug, but do not overtighten. Your new MOLLE Panels are now successfully installed on your vehicle! 1953XXI...
