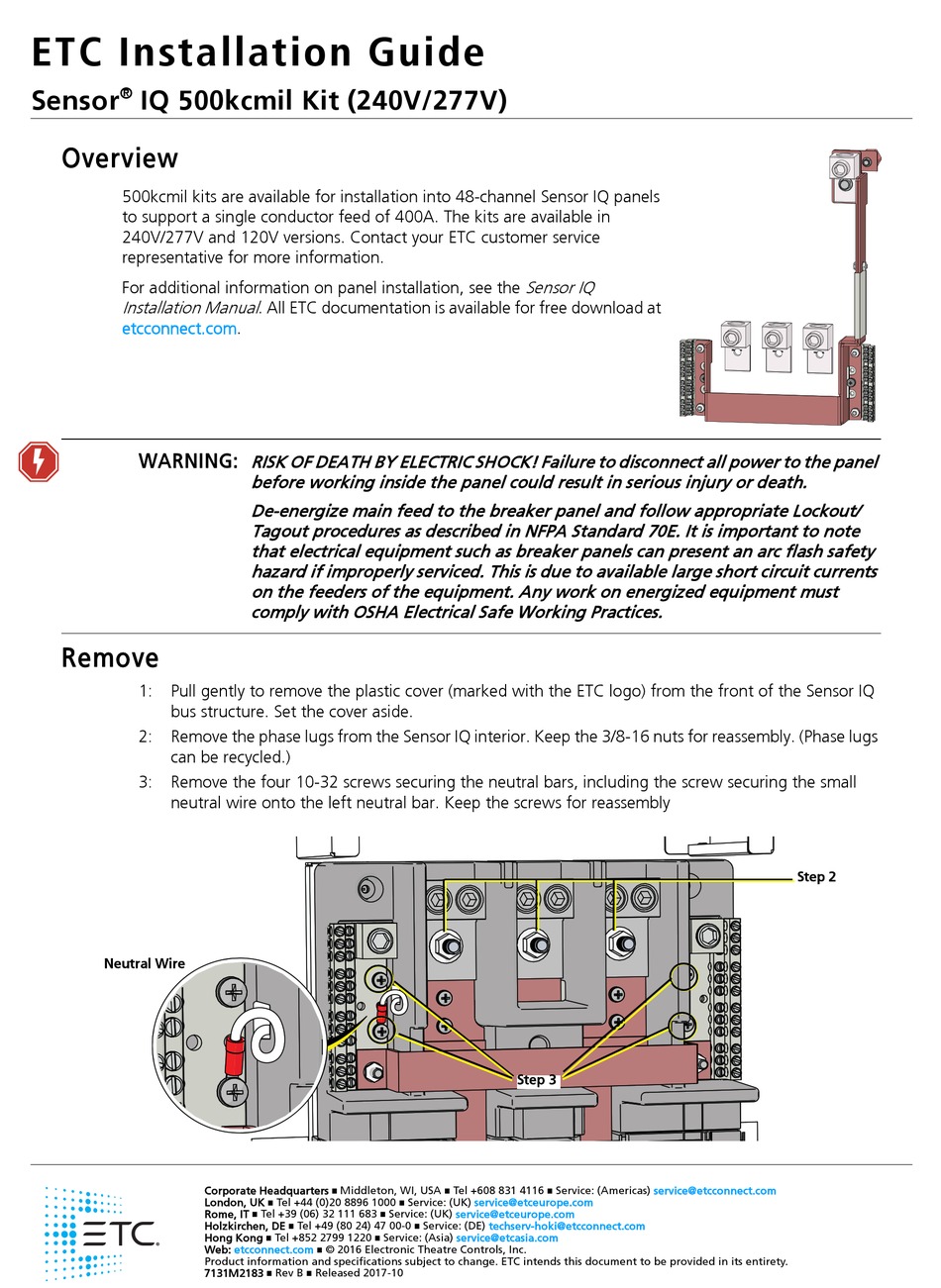

ETC Installation Guide
®
Sensor
IQ 500kcmil Kit (240V/277V)

Overview

500kcmil kits are available for installation into 48-channel Sensor IQ panels
to support a single conductor feed of 400A. The kits are available in
240V/277V and 120V versions. Contact your ETC customer service
representative for more information.
For additional information on panel installation, see the
Installation Manual
etcconnect.com.
WARNING:

Remove

1:
Pull gently to remove the plastic cover (marked with the ETC logo) from the front of the Sensor IQ
bus structure. Set the cover aside.
2:
Remove the phase lugs from the Sensor IQ interior. Keep the 3/8-16 nuts for reassembly. (Phase lugs
can be recycled.)
3:
Remove the four 10-32 screws securing the neutral bars, including the screw securing the small
neutral wire onto the left neutral bar. Keep the screws for reassembly
Neutral Wire
Corporate Headquarters
London, UK
Rome, IT
Holzkirchen, DE
Hong Kong
Web:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7131M2183
. All ETC documentation is available for free download at
RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all power to the panel
before working inside the panel could result in serious injury or death.
De-energize main feed to the breaker panel and follow appropriate Lockout/
Tagout procedures as described in NFPA Standard 70E. It is important to note
that electrical equipment such as breaker panels can present an arc flash safety
hazard if improperly serviced. This is due to available large short circuit currents
on the feeders of the equipment. Any work on energized equipment must
comply with OSHA Electrical Safe Working Practices.
Middleton, WI, USA
Tel +44 (0)20 8896 1000
Service: (UK)
Tel +39 (06) 32 111 683
Service: (UK)
Tel +49 (80 24) 47 00-0
Tel +852 2799 1220
Service: (Asia)
etcconnect.com
© 2016 Electronic Theatre Controls, Inc.
Rev B
Released 2017-10
