14.2 Vertical Light Output Dispersion for wall mounting – public mode
Viewing
Angle
0°
5-30°
35°
40°
45°
50°
55°
60°
65°
70°
75°
80-90°
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D211-00-401-IS-SC

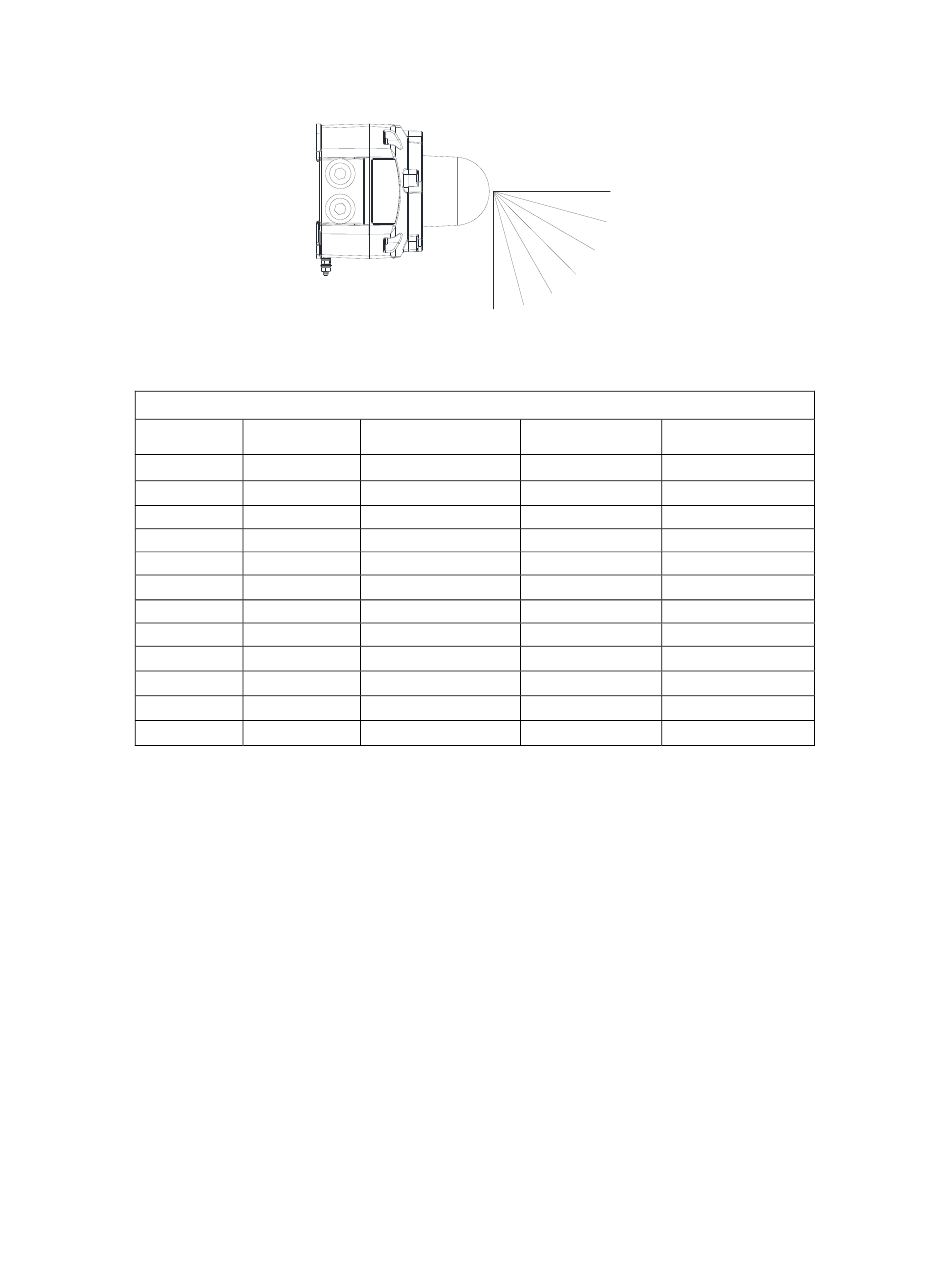

Fig. 13 – Vertical dispersion angles for wall mounting
Table 4 - Vertical Light Output Dispersion for Wall Mounting
Intensity (cd) at 1Hz
% Of Rating
flash rate
100 38.38
90 34.54
65 24.95
46 17.65
34 13.05
27 10.36
22 8.44
18 6.91
16 6.14
15 5.76
13 4.99
12 4.61
Issue E 02-03-2020
0°
15°
30°
45°
60°
75°
90°
Intensity (cd) at
1.5Hz flash rate
35.87
32.28
23.32
16.50
12.20
9.68
7.89
6.46
5.74
5.38
4.66
4.30
