CONTROLLER 67
USER MANUAL
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONTROLLER 67 and is the answer not in the manual?

Questions and answers

Related Manuals for AC Infinity CONTROLLER 67

Summary of Contents for AC Infinity CONTROLLER 67

  • Page 1 CONTROLLER 67 USER MANUAL USER MANUAL...
  • Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
  • Page 4 819137021426 COMPATIBILITY This controller is compatible with AC Infinity fan models that contain an EC-motor. Typically, EC-motor fans will have a separate cord coming out of it for the power and the controller. Note that certain models that used to have a DC-motor now contain an EC-motor in newer versions.
  • Page 5 Page 6 Product Contents ................Page 7 Powering and Setup ..............Page 8 Daisy Chain and Setup ..............Page 10 Programming ................. Page 11 Other Settings ................Page 23 Other AC Infinity Products ............. Page 24 Warranty ..................Page 25...

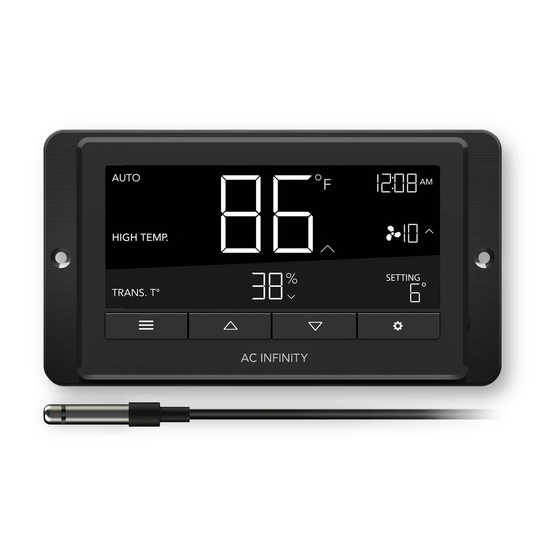

  • Page 6 KEY FEATURES SMART CONTROLLER STEEL FRAME SENSOR PROBE Features automation controls Steel backplate with a black The corded probe is that activate the fan according powder coated finish. Includes constructed of stainless steel to temperature, humidity, timer, screws to securely mount the to ensure precise temperature and schedules.
  • Page 7 PRODUCT CONTENTS MACHINE SCREWS SMART SENSOR CONTROLLER PROBE (WALL MOUNT) (x1) (x1) (x2) WOOD SCREWS WOOD SCREWS WIRE (WALL MOUNT) (WALL HANG) (x2) (x2) (x1)
  • Page 8 POWERING AND SETUP STEP 1 Locate the molex connector of your fan and plug it into the fan port at the bottom side of the controller. STEP 2 Locate the connector plug of the sensor probe and plug it into the sensor port at the bottom side of the controller.
  • Page 9 POWERING AND SETUP STEP 3 Position the corded sensor probe and secure it by using the included zip ties and tie mounts. STEP 4 Lastly, to power the fan, plug the fan's power cord into a wall outlet. The controller will receive power from the fan to operate.
  • Page 10 DAISY CHAIN AND SETUP The fan controller can power up to two compatible fans to share the same programming. The compatible fans do not need to be the same model or part of the same product series. Please see page 4 for compatibility details. Note that the controller receives power to operate from the fans.
  • Page 11 PROGRAMMING AUTO HIGH TEMP. LOW TEMP. HIGH HUMID. LOW HUMID. 1. MODE BUTTON This button cycles through each of the controller’s mode: OFF, ON, AUTO (4 triggers), TIMER TO ON, TIMER TO OFF, CYCLE (On and Off), and SCHEDULE (On and Off). 2.
  • Page 12 PROGRAMMING 5. PROBE HUMIDITY Current humidity that the probe is detecting. Displays “--“ if no probe is plugged in. Includes a trend indicator that signals a rise, steady, or fall in humidity within the last hour. 6. CONTROLLER MODE Displays the mode that the controller is currently in. Pressing the mode button cycles through the available modes.
  • Page 13 PROGRAMMING CONTROLLER MODES Pressing the mode button will cycle through the controller’s available programming modes: OFF, ON, AUTO (4 triggers), TIMER TO ON, TIMER TO OFF, CYCLE (On and Off), and SCHEDULE (On and Off). OFF MODE Your fan will not run while in this mode. However, the fan speed set while in this mode establishes the minimum speed in the other modes.
  • Page 14 PROGRAMMING AUTO MODE (LOW TEMPERATURE TRIGGER) Pressing the up or down button sets the low temperature trigger. The fans will activate if the probe’s reading meets or falls below this threshold. Once triggered, the fan will gradually ramp up to the speed set in ON mode.
  • Page 15 PROGRAMMING AUTO MODE (LOW HUMIDITY TRIGGER) Pressing the up or down button sets the low humidity trigger. The fans will activate if the probe’s reading meets or falls below this threshold. Once triggered, the fan will gradually ramp up to the speed set in ON mode.
  • Page 16 PROGRAMMING TIMER TO OFF MODE In this mode, press the up or down button to set a countdown time. The fans will run at the speed set in ON Mode until the countdown ends. If there was a speed set in OFF Mode other than zero, then the fans will run at that speed after the end of the countdown.
  • Page 17 PROGRAMMING SCHEDULE MODE (ON AND OFF) In this mode, set an on clock-time and an off clock-time schedule for the fan to follow through daily. Press the up or down button to first set up an on clock-time for when the fan will be on and then press the mode button again, to set an off clock-time for when the fan will be off.
  • Page 18 PROGRAMMING CONTROLLER SETTINGS Pressing the setting button will cycle through the controller’s available settings: DISPLAY, F/C, CLOCK, CALIBRATION TEMPERATURE, CALIBRATION HUMIDITY, TRANSITION TEMPERATURE, and TRANSITION HUMIDITY. DISPLAY SETTING In this setting, adjust the brightness of the display and auto-dimming. Press the up or down button to cycle through 1, 2, 3, A2 and A3.
  • Page 19 PROGRAMMING CLOCK SETTING In this setting, adjust the current clock time. Press the up or down button to increase or decrease the time. Once you cycle through 12:00 each time, the units will automatically change to AM or PM. The current clock time will be shown at the top right corner of display.
  • Page 20 PROGRAMMING TRANSITION TEMPERATURE SETTING In this setting, adjust the incremental rules in which the fan speed ramps up or down for temperature triggers in AUTO Mode. Press the up or down button to cycle through 0°F to 8°F (or 0°C to 4°C) to set a differential increment.
  • Page 21 PROGRAMMING TRANSITION HUMIDITY SETTING In this setting, adjust the incremental rules in which the fan speed ramps up or down for humidity triggers in AUTO Mode. Press the up or down button to cycle through 0% to 8% to set a differential increment. Once setup, when the sensor humidity first meets or exceeds the high humidity trigger, the speed will start at one speed above the speed set in OFF Mode.
  • Page 22 PROGRAMMING ALERT ICONS On the top left of the display is the alert icon section. Icons may flash when the controller wishes to alert you that a particular function or alarm is being triggered. ADVANCE PROGRAMMING This icon displays when an advanced program set in the app is active. "ADV." will appear and override the controller if an automation program is in use.
  • Page 23 LOW HUMIDITY ALARM This icon will flash and beep with an alert if humidity falls below the trigger point set in the app. TIMER ALERT This icon will flash when a countdown has completed for TIMER TO ON, TIMER TO OFF, CYCLE, or SCHEDULE Mode. BLUETOOTH This icon will appear when the physical controller is connected to the APP via Bluetooth.
  • Page 24 OTHER SETTINGS FACTORY RESET To reset the controller back to factory settings, hold the mode button, the up button, and the down button simultaneously for four or more seconds. Resetting the controller will clear all user set parameters in every controller mode and settings. BLUETOOTH RESET Hold the Mode and Settings buttons simultaneously for four or more seconds to clear advanced programming in the controller.
  • Page 25 OTHER SETTINGS MINIMUM SPEED In OFF Mode, you can set the minimum speed in which the fan will run at in other modes. If a speed is higher than 0, then the fan will run at that speed when it is triggered to be off. AUTO INCREASING OR DECREASING Holding the up or down button will increase or decrease user parameters automatically until the user releases the up or down button.
  • Page 26 DOWNLOAD THE APP QUICK START Download the AC Infinity app to remotely program and control your fan using your smart phone or tablet. Connect the fan and probe into CONTROLLER Download and run the app to pair your 67A. Plug the fan into a wall outlet.
  • Page 27 AC INFINITY PRODUCTS Register Booster Fans The AIRTAP series is a line of register booster fans designed to quietly increase airflow coming from your central heat and air conditioning systems, increasing comfort for your home. Features a thermal controller with intelligent programming that will automatically adjust airflow strength in response to heating and cooling temperatures you have set.
  • Page 28 WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues.
  • Page 29 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
  • Page 30 www.acinfinity.com...
