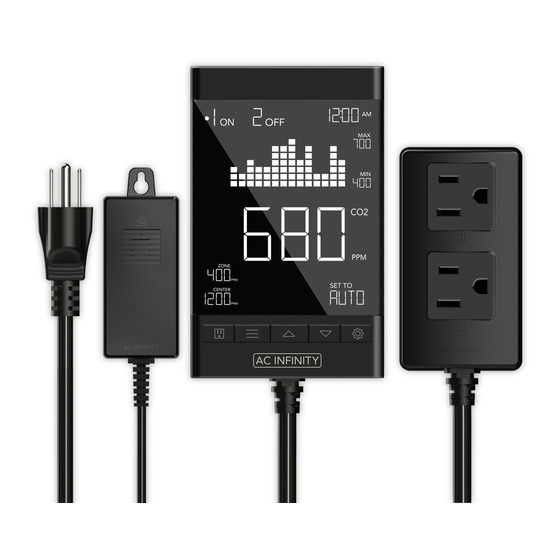

- Page 1 CONTROLLER ENVIRONMENTAL MONITOR USER MANUAL...
- Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
- Page 4 MANUAL CODE CTC2210X1 PRODUCT MODEL UPC-A CONTROLLER AC-CTC7 819137022997...
-
Page 5: Table Of Contents
Product Warning ................Page 6 Key Features ................. Page 7 Product Contents ................Page 8 Powering and Setup................ Page 9 Programming ................. Page 12 Other Settings ................Page 25 Other AC Infinity Products ............. Page 26 Warranty ..................Page 27... -
Page 6: Product Warning
PRODUCT WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Ensure your power source conforms to the electrical requirements of this product. Check your local code restrictions for additional safety measures that may be needed for a proper code compliant installation. -
Page 7: Key Features
KEY FEATURES ACTIVE MONITORING WALL MOUNTING CUTTING EDGE SENSOR LED display shows key data Hard black housing and Next-generation sensor using like outlet power status, CO fire-resistant casing with key- photoacoustic technology to trends, clock, and cycle. hole hanger for easy mounting. accurately read CO levels. -
Page 8: Product Contents
PRODUCT CONTENTS WIRE WALL-HANG SENSOR CONTROLLER MOUNT WOOD SCREWS (x1) (x1) (x1) (x3) -
Page 9: Powering And Setup
POWERING AND SETUP STEP 1 Plug the sensor probe into the 3.5mm port located at the bottom side of your controller. STEP 2 Insert the power plug into a wall outlet to power your controller. - Page 10 POWERING AND SETUP STEP 3 Secure the corded sensor using the included wire tie and adhesive mount. You may also wall hang the corded sensor. Refer to the next steps for wall hanging instructions. STEP 4 Locate a spot free of obstruction and secure the anchor into your wall.
- Page 11 POWERING AND SETUP STEP 5 Hang your controller by the screw using the hole located on its backside. STEP 6 Plug your fan and/or CO generator (not included) into the sockets to power it with your controller.
-
Page 12: Programming
PROGRAMMING 1. OUTLET BUTTON Switches between Outlet 1 and Outlet 2. Set programs will still be active regardless of your current outlet. 2. MODE BUTTON Cycles through each of the controller’s modes: OFF, ON, CO (Center and Zone), Fan (Center and Zone), and CYCLE (On and Off). - Page 13 PROGRAMMING 6. STATUS ICONS Flashes or displays the alert icons of the controller. The icons include ALARM, TIMER ALERT, and DISPLAY LOCK. 7. CURRENT TIME Displays the current time. The internal battery sustains the clock so it does not default to 00:00 if power is cut off.
- Page 14 PROGRAMMING OUTLET TOGGLING Pressing the outlet button switches between the controller’s two devices: Outlet 1 and Outlet 2. The dot indicates the controller’s current device. OUTLET 1 & OUTLET 2 Navigate to a numbered outlet with a device plugged in to set individual programming. Programs will run in the background even while you navigate to the other outlet.
- Page 15 PROGRAMMING CONTROLLER MODES Pressing the mode button will cycle through the controller’s available programming modes: OFF, ON, CO (Center and Zone), Fan (Center and Zone), and CYCLE (On and Off). Make sure to use the appropriate mode for the device you’ve plugged in (ex. CO mode for CO generator).
- Page 16 PROGRAMMING MODE STEP 1 Ensure you are in the correct numbered outlet for the CO generator you are using. Then navigate to the Center submode. STEP 2 Use the up or down buttons to set the center value and your desired CO level.
- Page 17 PROGRAMMING FAN MODE STEP 1 Ensure you are in the correct numbered outlet for the fan you are using. Then navigate to the Center submode. STEP 2 Use the up or down buttons to set the center value and high CO trigger.
- Page 18 PROGRAMMING CYCLE MODE (ON AND OFF) Sets an ON duration and an OFF duration for your device to cycle through continuously. Press the up or down button to set a countdown for your device to turn on. Then press the mode button and use the up or down button to set a countdown for your device to turn off.
- Page 19 PROGRAMMING CONTROLLER SETTINGS Cycles through each of the controller’s settings: CO CHART, NIGHT1 (Start and End), Night 2 (Start and End), ALARM HIGH, ALARM LOW, DISPLAY BRIGHTNESS, CLOCK, and CALIBRATION. CHART SETTING Changes the CO chart’s time scales. Each scale adjusts the chart to the selected duration (ex.
- Page 20 PROGRAMMING NIGHT SETTING Shuts off your device within a set timeframe, turning back on when the schedule ends. This will override all programming set in Outlet 1 or Outlet 2, even while away from this setting. Make sure the system clock time is correct before adjusting this setting. NIGHT 1 programs Outlet 1 while NIGHT 2 programs Outlet 2.
- Page 21 PROGRAMMING HIGH ALARM SETTING Press the up and down button sets a high CO alarm. The alarm will sound and its icon will flash if the sensor’s reading exceeds the set CO level. To activate the alarm, leave the alarm mode. The alarm will turn OFF if the sensor’s reading falls below the trigger or if any button is pressed.
- Page 22 PROGRAMMING DISPLAY SETTING Adjusts the display brightness and auto-dimming. Press the up or down button to cycle through levels 1, 2, 3, A2 and A3; 3 being the highest brightness setting, while 1 is the lowest. In settings 1, 2 and 3, the display will stay at that brightness level and will not automatically dim the display.
- Page 23 PROGRAMMING MANUAL CALIBRATION SETTING Adjusts the CO reading the sensor is measuring. Press the up or down button to increase or decrease the data figure in 10ppm increments. The calibration cycle ranges from -500ppm to 500ppm and will be applied to the sensor’s measurements. AUTO-CALIBRATION SETTING Automatically adjusts the CO reading to 400ppm,...
- Page 24 PROGRAMMING ALERT / STATUS ICONS On the top right of the display is the alert icon section. Icons may flash when the controller wishes to alert you that a particular function or alarm is being triggered. ALARM ALERT This icon will flash when the high or low alarm has been triggered. TIMER ALERT This icon will flash when a countdown has completed for TIMER TO ON, TIMER TO OFF, and CYCLE modes or the SCHEDULE setting.
-
Page 25: Other Settings
OTHER SETTINGS CONTROLLER LOCK Holding the setting button will lock the controller in your current mode. While your controller is locked, no parameters HOLD + may be adjusted, nor will you be able to switch modes. Holding the setting button again will unlock the controller. HIDE SCREEN Lock the controller so no settings can be adjusted. -
Page 26: Other Ac Infinity Products
150 lb. weight capacity. Includes a mounting plate to install your AC Infinity controller onto. Seedling Mats The SUNCORE series is a line of seedling mat designed to improve germination success and accelerate your seeds’... -
Page 27: Warranty
WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues. - Page 28 COPYRIGHT © 2023 AC INFINITY INC. ALL RIGHTS RESERVED No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific...
