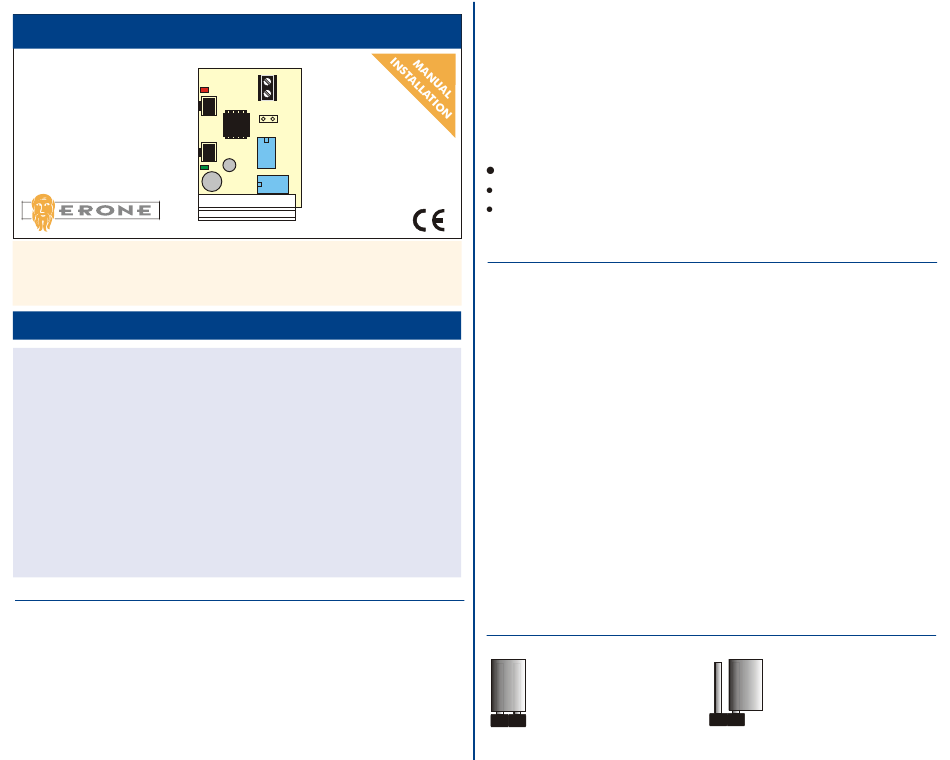

Erone SEL2641R433-S7 Installation Manual

ERONE - SLOT-IN CARD RECEIVER
SEL2641R433-S7
R A D I O C O M A N D I
Thank you for choosing a product Erone.You are recommended to
read carefully this manual before installing the product.
CONTENTS
1 - PRODUCT INTRODUCTION
1A - Introduction
1B - Technical specifications
1C - Power selection
1D - Layout and connections
2 - TRANSMITTER CODES MEMORIZATION
3 - MEMORY FULL
4 - MEMORY ERASURE
1A - Introduction
The slot-in card receiver ERONE type SEL2641R433-S2 is a
superheterodyne receiver operating at 433.92 Mhz.
It is a component of the radiocontrol ERONE 433.
It can be used with the transmitters ERONE, Series ERONE 433 Rolling
code and ERONE MINI . The outputs are carried out by means of a 10
ways MOLEX connector on which are available 2 pure contacts of the
two relays and the three power connections, so it can be connected only
to a perfectly compatible device.
The receiver makes it possible a multiple code management ( up to 85
different transmitter codes, thank to the internal EEPROM.
The transmitter code memorization can be performed with 2 push-
buttons. A separated antenna input connector is available on the card.
USABLE TRANSMITTERS
Erone 024A Type. S2TR2641E2: 2 keys transmitter;
Erone 024A Type. S2TR2641E4: 4 keys transmitter;
Erone MINI Type. SETR2641AM2 :2 keys mini transmitter;
1B - Technical specifications
Receiver type:
Demodulation:
Operating frequency:
Local oscillator frequency:
Intermediate frequency:
Sensitivity ( for good signal ):
Input impedance:
Power supply :
Current consuption:
Relays number:
Commutable max power:
Max codes number:
Operating temperature:
Codes memory type:
Dimensions:
Weight:
1C - Power selection
J1 = CLOSED
Power. 12 Vac/dc
Superheterodyne.
AM/ASK.
433.92 MHz.
6,6128 MHz.
10,7 MHz.
-117 dBm.
50 Ohm.
12 or 2ac/dc.
8 mA
2 ( contacts NO).
24W or 24VA .
85.
-20 ÷ + 70 °C.
EEPROM
52 x 46 x 19 mm.
24 gr.
J1=OPEN
Power. 24 Vac/dc
