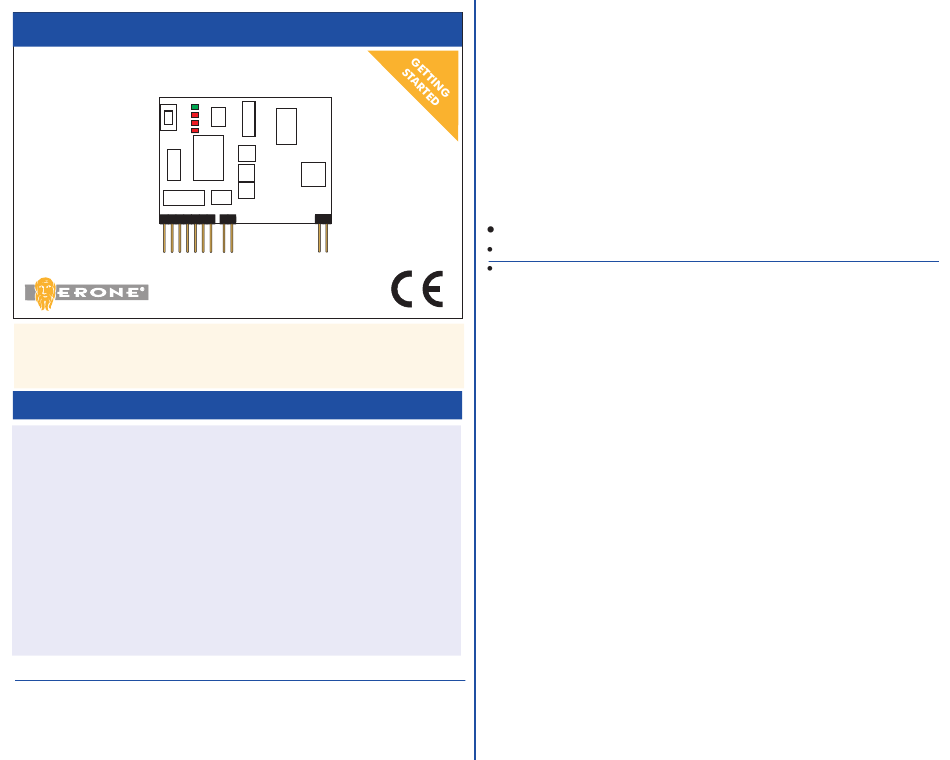

Erone SEL2641R433-OC4 Manual

4 OUTPUT OC RX CARD
SEL2641R433-OC4
T H E S M A R T L I V I N G
Thank you for choosing this product.
You are recommended to read carefully this manual
before installing the product.
SUMMARY
1 - INTRODUCTION
1A - Main features
1B - Technical specifications
1C - Layout and connections
2 - TRANSMITTER MEMORIZATION
3 - SINGLE TRANSMITTER CANCELLATION
4 - MEMORY ERASURE
5 - MEMORY FULL
1A - Main features

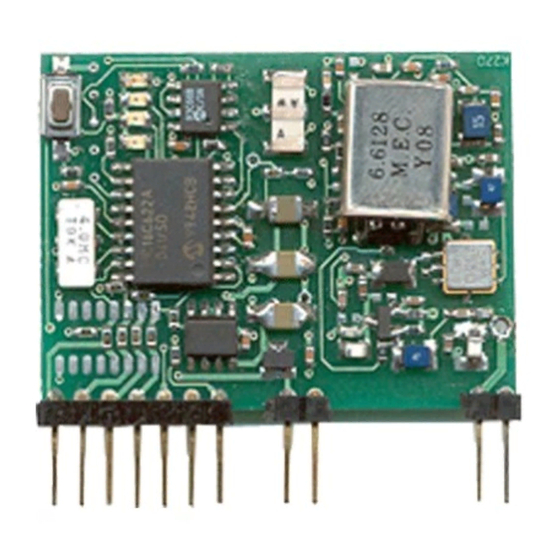

The receiver type SEL2641R433-OC4 is a superheterodyne receiver
operating at 433,92 MHz.
It can be used with the transmitters series 024A Rolling code and MINI.
It is equipped with a strip-type output connector with standard pitch of
2,54 mm, so it can be used only with compatible devices.
The internal EEPROM memory can store up to 85 transmitter codes.
The outputs have the open-collector configuration.
The transmitter memorization can be carried out with a push-button
It is also available a single antenna input.
Il fabbricante, CDVI Wireless Spa, dichiara che l'apparecchiatura radio
SEL2641R433-OC4 è conforme alla direttiva 2014/53/UE. Il testo
completo della dichiarazione di conformità UE è disponibile al
seguente indirizzo internet: www.erone.com.
USABLE TRANSMITTERS
Series Erone 024A Type S2TR2641E2: 2 key transmitter
Series Erone 024A Type S2TR2641E4: 4 key transmitter
Series Erone 433 MINI Type SETR2641AM2 :2 key mini transmitter
1B - Technical specifications
Receiver type
Carrier frequency
Local oscillator frequency
Demodulation
Local Oscillator
Channel width
Intermediate frequency
Input sensitivity
Local oscillator spurious emissions
Input load:
Power supply:
Consumption:
Outputs
Output type
Max sink current (single output)
Max total current (all 4 outputs)
Memory capacity
Security code
Max code combination number
Operating temperature
Weight
Overall dimensions (mm)
Superheterodyne
433,92 MHz
6,6128 MHz
AM/ASK
VCO / PLL
> 25 KHz
10.7 MHz
-115 dBm
< -57 dBm
50 Ohm
12 Vdc
11 mA
4
Open-collector
500 mA
1 A
85 user codesTX
Rolling code
64
2
-20°/+80°C
9 gr
44 x 42 x 8
