- Page 1 ERONE DIN GUIDE 4 RELAY RECEIVER SEL2641R433-BD4 USE AND INSTALLATION MANUAL T H E S M A R T L I V I N G...

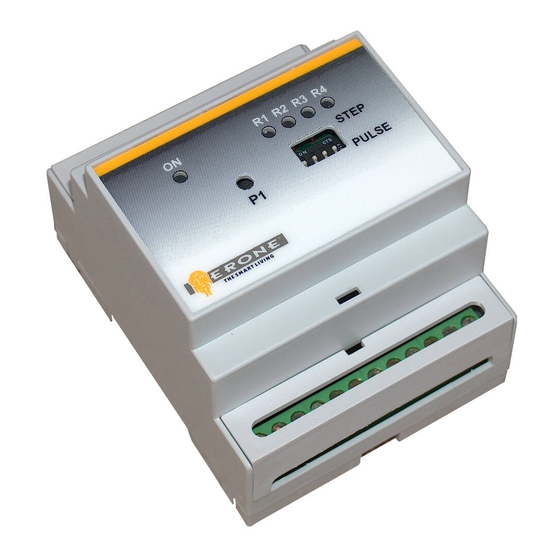

- Page 2 1 - INTRODUCTION The 4 relay DIN guide receiver DIN SEL2641R433-BD4 is a superheterodyne receiver with 4 clean contacts outputs. It can drive automation devices a nd alarm systems with max contact power of 3,5 KW.
- Page 3 3 - CONNESSIONI 12 Vac/dc 9 10 11 12 R1 R2 R3 R4 R1 R2 R3 R4 STEP STEP PULSE PULSE 13 14 15 16 17 18 19 20 21 22 23 24 Fig. 1 Relay outputs map Relay Terminal Contact Relay Terminal...
- Page 4 4 - FEATURES Memory for 85 transmitter keys; Single tx code memorization and erasure with a single push-button; Single tx or full memory erasing; Programmable operating mode for the relays : pulse or step; Display of the number of stored users; 4 inputs for emergency extra push-buttons.
- Page 5 6 - REMOTE CONTROLS MEMORIZATION The memorization of the remote controls can be carried on in sequential way, by using only P1. Each step is confirmed by the led R1, R2, R3, R4. The procedure consists in a sequence of pressures of P1 The lighting of the leds R1, R2, R3, R4 is cyclic: at each pressure of P1 a led is turned on and the preceding led is turned off.
- Page 6 6.3 Memory full At the end of the memorization of the 85th transmitter key, R3 and R4 make a shork blinking. If you try to memorize more keys, R3 and R4 make 2 flashes and the memorization fails. 7 - TRANSMITTERS ERASURE 7.1 Single transmitter cancellation Keep the push button P1 pushed for 2 sec.
- Page 7 8 - MODE PULSE/ STEP Each relay can be set in pulse or step mode according to the set-up of the dip-switch S1 as shown on the following tab. 2. In step ( or bistable ) mode the led corresponding to the relay activated blinks. R1 R2 DIP-SWITCH S1 BISTABLE...
- Page 8 Via Piave, 23 - 31020 San Pietro di Feletto (TV) - Italy Tel. +39-0438-450860 - Fax . +39-0438-455628 Web : www.erone.com - email: info@erone.com T H E S M A R T L I V I N G IS-RBDERUK Rev. 3 del 13.06.2017...
