Erone SEL2641R433-XPL54 Manual

Fabricant de Contrôle d'Accès depuis 1985
1

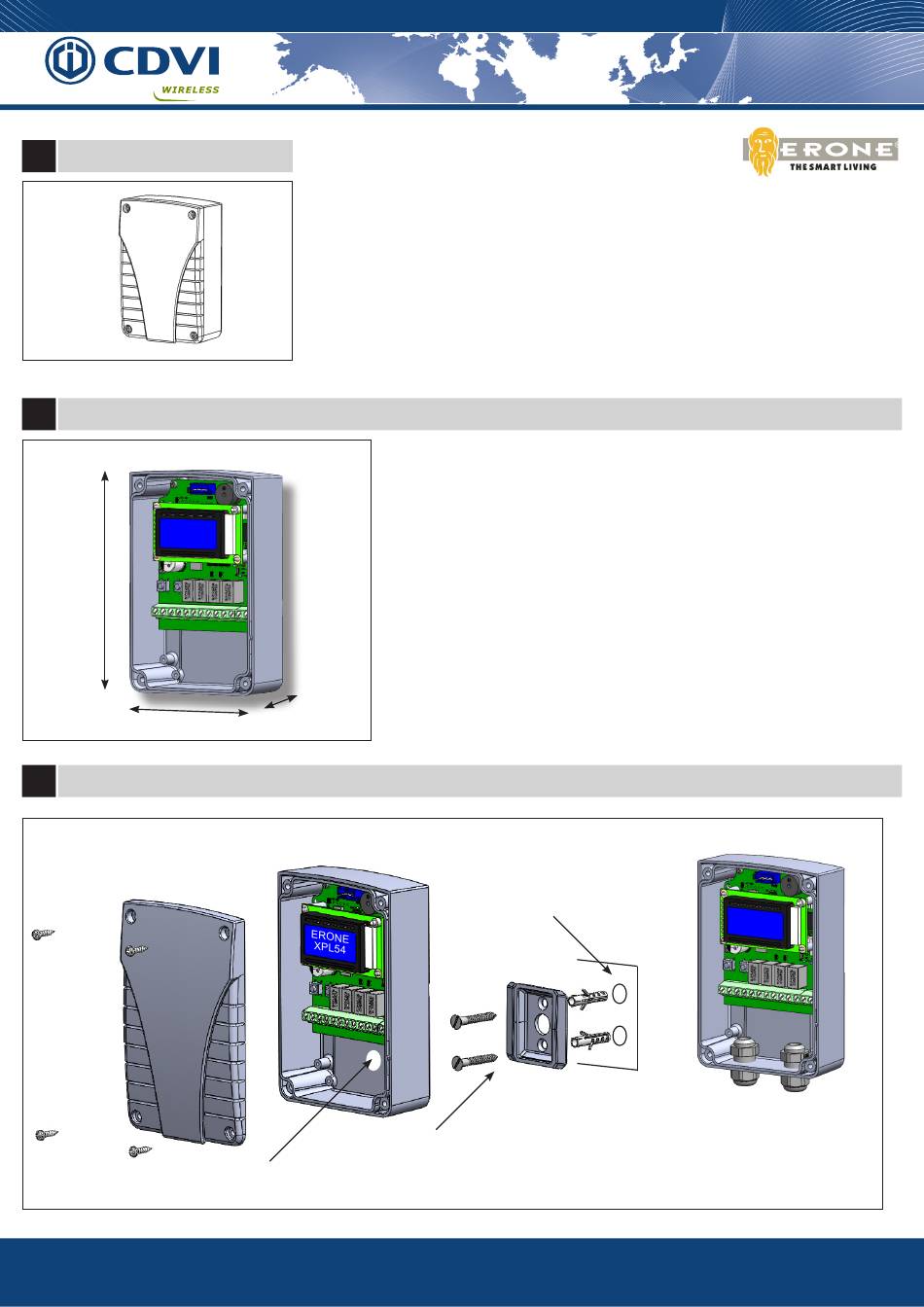

Introduction
Fig.1
F1001000082
2

Technical Specifications

ERON E
XPL54
123
81,5
Fig. 2
3
Mounting
Option A ) make a hole ( ø11 mm )
on the bottom of the box and pass
the cables throught
The installer's choice
4 RELAYS RECEIVER SEL2641R433-XPL54
The receiver Erone type SEL2641R433-XPL54 ( Fig. 1) is a AM/ASK single conversion
superheterodyne receiver with integrated "Keeloq® Hopping code" decryption.
A special algorithm allows to keep synchronyzed transmitter and receiver. The receiver,
having dry contacts relays output, can be connected to any type of device ( gate, garage
door, rolling shutters, awnings, anti-burglar appliances, lighting, etc.).
The transmitter memorization can be carried out either with 2 push-buttons of the
receiver or remotely, using only the keys of the transmitter. The setup of the remaining
parameters of the receiver can be done only with the 2 push buttons of the receiver.
All the setting steps are displayed by a backlit LCD display.
Fig. 1
The internal data can be saved/restored to/from an external memory.
Receiver type:
Demodulation:
Operating frequency:
Sensitivity ( for good signal ):
Input load:
Power supply :
Current consumption ( @12Vdc)
N° of relays:
Max power on relay output:
Memory capacity:
Security protocol
N° of code combinations
Operating temperature:
Dimensions ( Fig. 2):
Weight:
Relay operating mode
41,5
Delay
Enclosure protection
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
Drill the placing surface
with ø6 tool and insert the
2 plugs
Then fix the support with
the screws provided
Supereheterodyne.
AM/ASK.
433.92 Mhz.
-115 dBm.
50 Ohm.
12 o 24 V ac/dc.
from 25 mA to 90 mA (max)
4 (3 NO and 1 NO/NC).
24VA max 60V .
500 transmitters
Keeloq® Hopping code
2exp64
from -20 to + 70 °C.
120 x 80 x 40 mm
65 gr.
Pulse, step, timed
from 1 sec. to 24h: 59 min.
IP55
E R O N E
X P L 5 4
Option B ) Use of PG7 cable glands
(not provided )
Fig. 3
