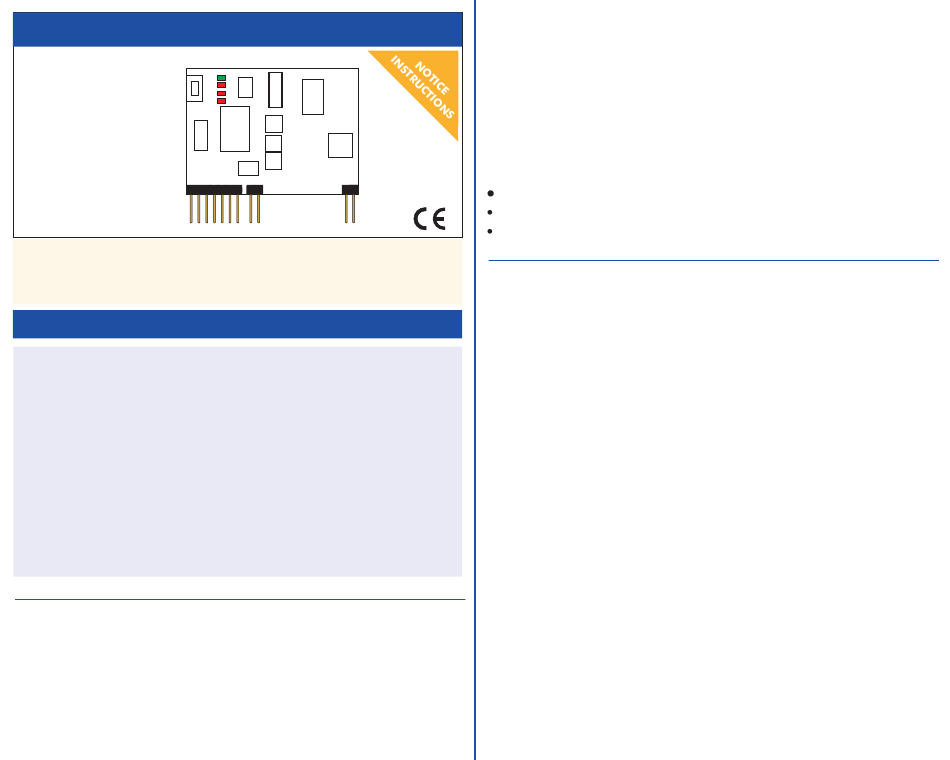

Erone SEL2641R433-PP4 Quick Start Manual

RX CARD 4CHPP
SEL2641R433-PP4
Thank you for choosing a this product.
You are recommended to read carefully this manual before installing the
SUMMARY
1 - INTRODUCTION
1A - Main features
1B - Technical specifications
1C - Layout and connections
2 - TRANSMITTER MEMORIZATION
3 - SINGLE TRANSMITTER CANCELLATION
4 - MEMORY ERASURE
5 - MEMORY FULL
1A - Main features

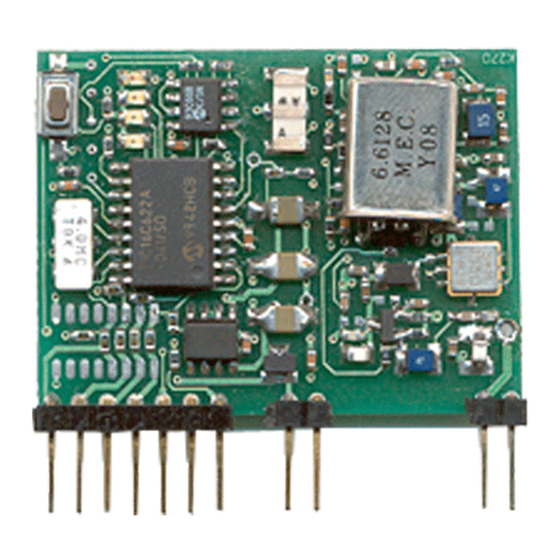

This receiver mod. SEL2641R433-PP4 is a card receiver with 4 push-
pull outputs. It has a very high security coding system (KeeLoq ®
Hopping code).The operating frequency is among the European
harmonised frequencies; the code sent by the transmitter changes at
every activation, avoiding any scanning and copying risk.
A special algorithm allows to keep synchronyzed transmitter and
receiver. The receiver has 4 digital outputs with push-pull
product.
configuration and current in sink and source of 25 mA
The receiver has a special pin-out so it can be connected only to
compatible appliances.
Hereby, CDVI Wireless Spa, declares that the radio equipment type
SEL2641R433-PP4 is in compliance with directive 2014/53/EU. The
full text of the EU declaration of conformity is available at the
following internet address: www.erone.com.
COMPATIBLE TRANSMITTERS
Type S2TR2641E2: 2 key transmitter
Type S2TR2641E4: 4 key transmitter
Type SETR2641AM2: 2 key mini transmitter
1B - Technical specifications
Receiver type
Carrier frequency
Local oscillator frequency
Demodulation
Local Oscillator
Channel width
Intermediate frequency
Input sensitivity
Local oscillator spurious emissions
Input load:
Power supply:
Consumption:
Outputs
Output type
Max sink current on 4 outputs
Max source current on 4 outputs
Max sink/source current on 1 output
Memory capacity
Security code
Max code combination number
Operating temperature
Weight
Overall dimensions (mm)
Superheterodyne
433,92 MHz
6,6128 MHz
AM/ASK
VCO / PLL
> 25 KHz
10.7 MHz
-115 dBm
< -57 dBm
50 Ohm
12 Vdc
11 mA
4
Push-pull
25 mA
25 mA
125 mA
85 user codesTX
Rolling code
64
2
-20°/+80°C
gr. 9
44 x 42 x 8
