Introduction

FEATURES:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Extends HDMI at 1080p up to a distance of 70m

• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD

Master Audio transmission

• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products

• Bi-directional RS-232 pass-through

• Supports IR pass-through to HDBaseT™ device

• Compatible with all Blustream HDBaseT™ receiver / matrix products*

• White magnetic faceplate surround allowing for both UK & EU backbox compatibility

• HDCP 2.2 support

*Technical performance is subject to the features supported on the connected HDBaseT™ device.

Contact:

support@blustream.com.au

HEX11WPW-TX

Quick Reference Guide

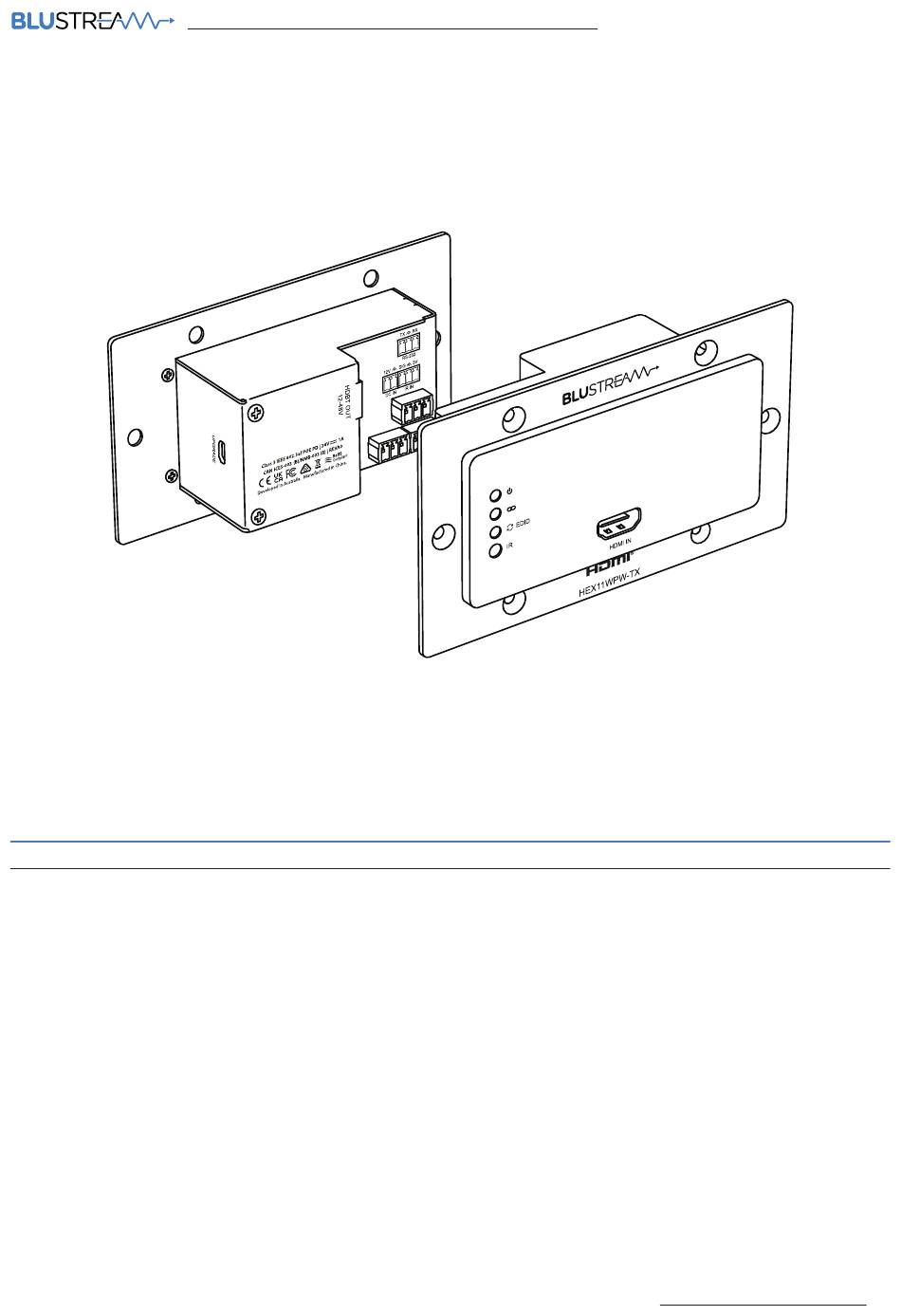

Our HEX11WP HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends

HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WPW-TX has been

designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be

installed in both UK and European backboxes and can be powered locally or from

compatible Blustream HDBaseT™ products.

support@blustream-us.com

HEX11WPW-TX

support@blustream.co.uk

QUICK REFERENCE GUIDE

Need help?

Do you have a question about the HEX11WPW-TX and is the answer not in the manual?

Page 1 Our HEX11WP HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WPW-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European backboxes and can be powered locally or from compatible Blustream HDBaseT™...
Page 2 Note: When powering the HEX11WPW-TX locally and using PoC to power a compatible Blustream receiver device, power is only enabled when an active HDMI source device is connected to the HEX11WPW-TX. This feature is used to trigger auto switching on the Blustream SW41HDBT HDBaseT™ Switcher.
Page 3 HEX11WPW-TX QUICK REFERENCE GUIDE Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
Page 4 Infrared Receiver The HEX11WPW-TX features 2 x options for receiving of IR signals. The HEX11WPW-TX has an in-built IR receiver on the front panel that will receive IR commands from line of sight IR remote controls, and a 3-pin Phoenix connection on the rear panel.
