Introduction
FEATURES:
• Features 2 x HDMI & 1 x USB-C inputs with manual / auto source selection
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Manual input selection via front panel and RS-232
• Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device
Contact: support@blustream.com.au
HEX31WPB-TX
Quick Reference Guide

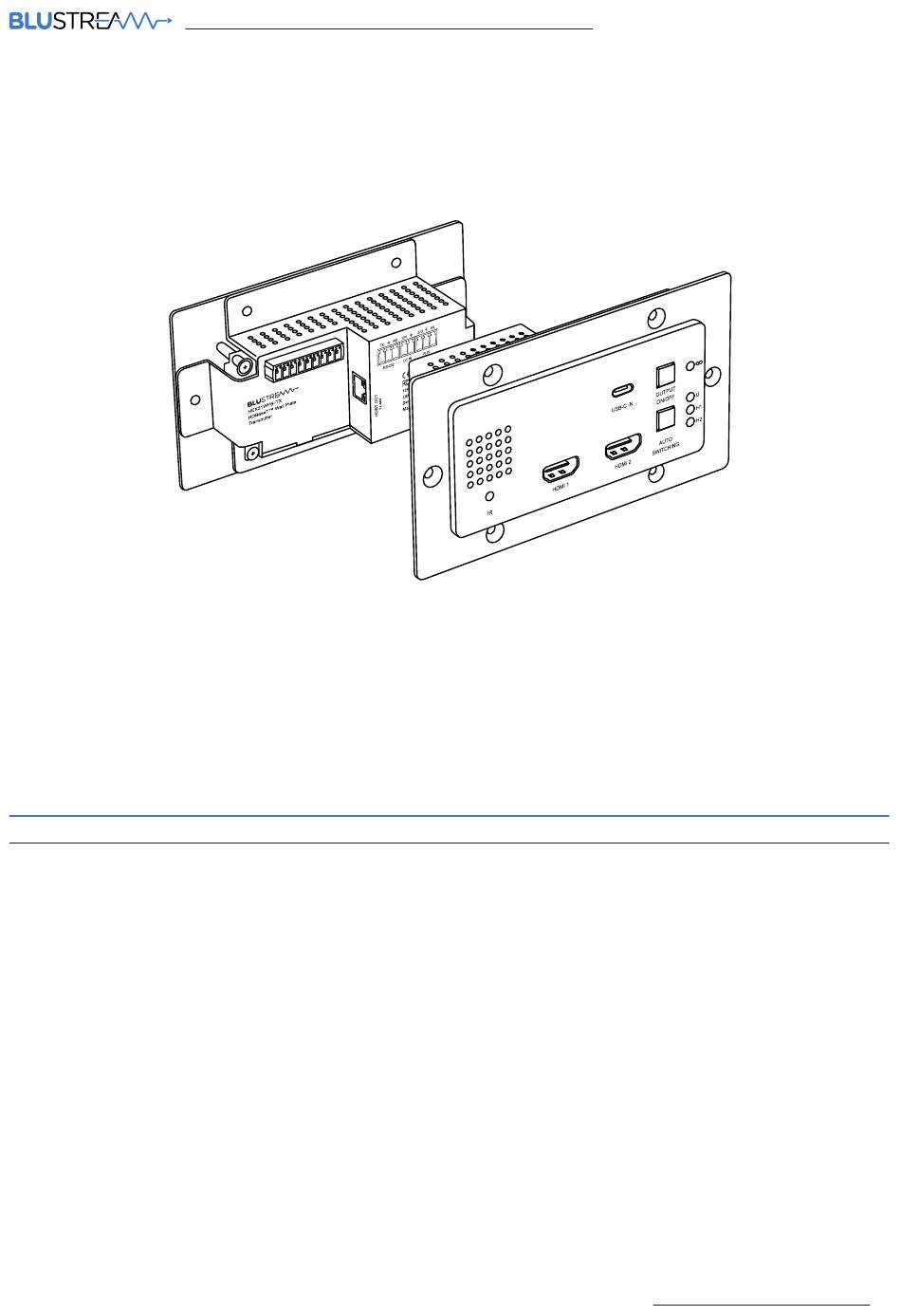

Our HEX31WPB-TX HDMI / USB-C wall plate HDBaseT™ Transmitter is a multi-
format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m
at 1080p (40m at 4K 60Hz 4:2:0). The HEX31WPB-TX features both manual or
automated source selection and includes display on / off control via CEC, RS-232
and IR (via compatible HDBaseT™ receiver / matrix). The HEX31WPB-TX has been
designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be
installed in both UK and European backboxes, and can be powered locally or from
compatible Blustream HDBaseT™ products.
