FEATURES:
• Features 2 x HDMI & 1 x USB-C inputs with manual / auto source selection
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Input selection via front panel, IR and RS-232
• Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ Receiver
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products
• Bi-directional RS-232 pass through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ Receiver / Matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device
contact:
support@blustream.co.uk / support@blustream.com.au
HEX31WP-TX
Quick Reference Guide
Our HEX31WP HDMI / USB-C wall plate HDBaseT™ Transmitter is a multi-format
4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p
(40m at 4K 60Hz 4:2:0). The HEX31WP-TX features both manual or automated
source selection and includes display on / off control via CEC, RS-232 and IR (via
compatible HDBaseT™ Receiver / Matrix). The HEX31WP-TX has been designed
to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed
in both UK and European backboxes, and can be powered locally or from
compatible Blustream HDBaseT™ products.
HEX31WP-TX
QUICK REFERENCE GUIDE
01
Advertisement
Table of Contents
Related Manuals for BluStream HEX31WP-TX
Summary of Contents for BluStream HEX31WP-TX
-
Page 1: Quick Reference Guide
4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX31WP-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™... -

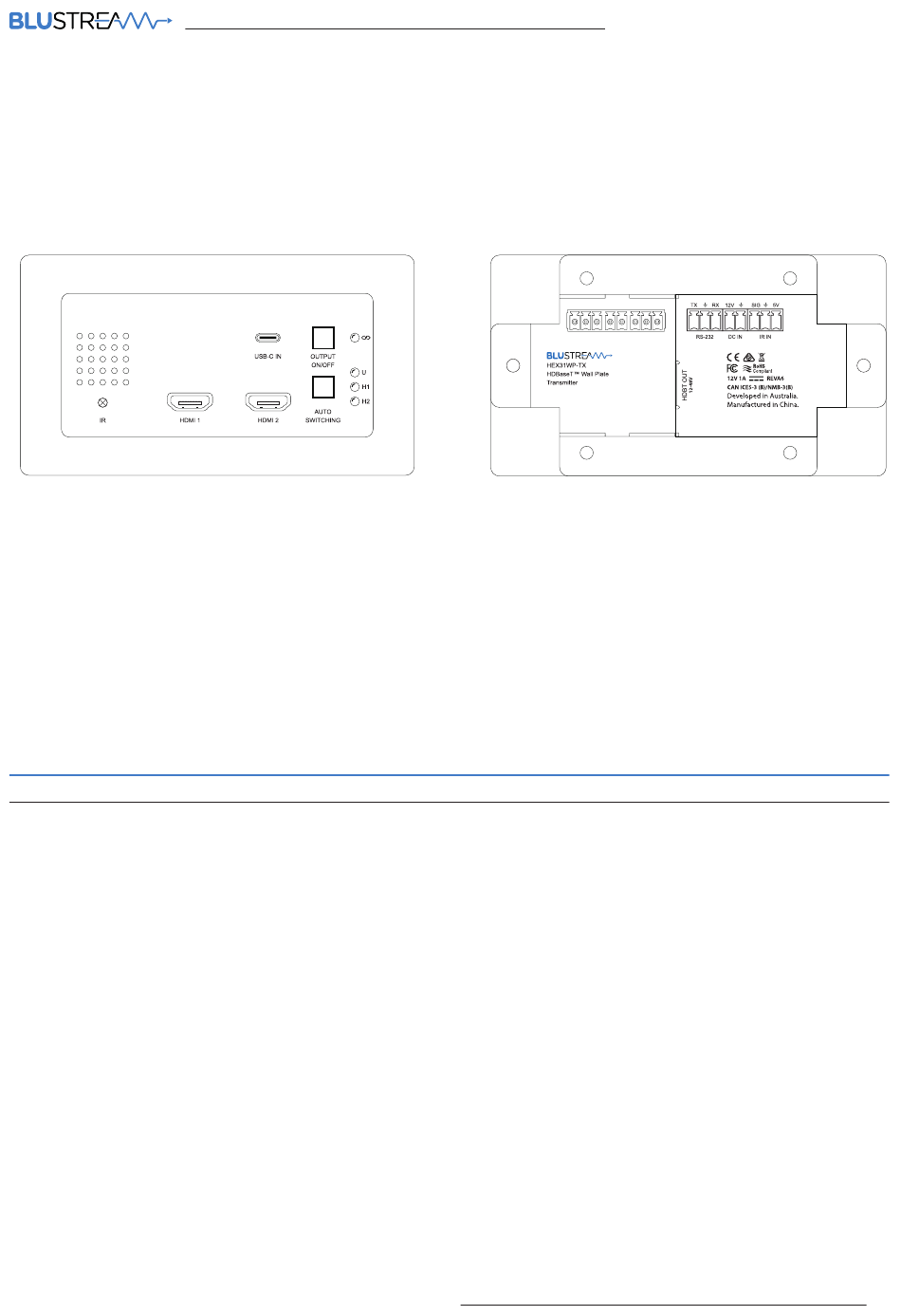

Page 2: Rear Panel Description
RS-232 - 3-pin phoenix connector for RS-232 pass through to / from compatible HDBaseT™ Receiver / Matrix products 12V DC Input - 2-pin phoenix connector to connect to Blustream 12V power supply (supplied) IR Receiver Input - 3-pin phoenix connector to connect to Blustream IR Receiver (phoenix block supplied, IR Receiver not supplied) HDBaseT™... - Page 3 Data bit: 8 Stop bit: 1 Parity bit: none For a complete RS-232 command list please see the HEX31WP-TX User Manual - available to download from the Blustream website. EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display.
-
Page 4: Specifications
12V/1A DC NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents HEX31WP-TX • 1 x HEX31WP-TX • 1 x 12V/1A DC Power Supply • 1 x Magnetic Faceplate • 1 x RS-232 Control Cable •...
