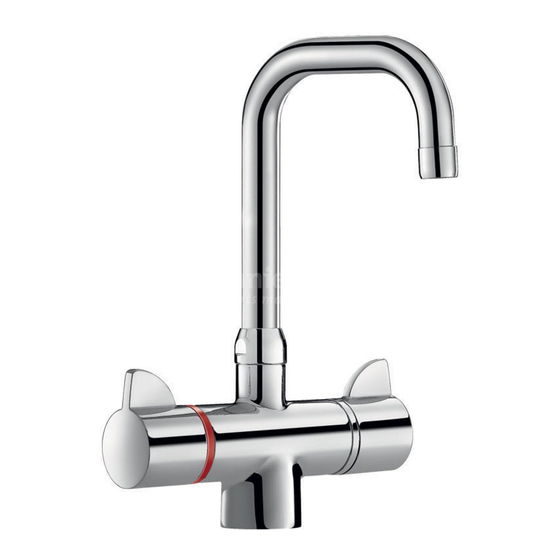

Individual thermostatic mixer for washbasins and sinks.
Table of Contents
  • Installation
  • Maintenance
  • Wartung
  • Instalación
  • Mantenimiento
  • Manutenção & Limpeza
  • Техническое Обслуживание
  • Уход И Чистка

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 6

Quick Links

Mitigeurs thermostatiques individuels
FR
pour lavabo et évier.
Individual thermostatic mixer
EN
for washbasins and sinks.
Einzelthermostat für Waschtisch
DE
und Ausguss.
Indywidualne baterie termostatyczne
PL
do umywalki i zlewu.
Purger soigneusement les canalisations
FR
avant la pose et la mise en service du produit.
Thoroughly flush the pipes to remove any impurities
EN
before installing and commissioning the product.
Vor Montage und Inbetriebnahme des Produkts
DE
die Anschlussleitungen regelkonform spülen.
Dokładnie wypłukać instalację przed
PL
montażem i uruchomieniem produktu.
Spoel zorgvuldig de leidingen alvorens
NL
tot installatie of ingebruikname van de kraan over te gaan.
Purgue cuidadosamente las tuberías
ES
antes de la instalación y de la utilización del producto.
Purgar cuidadosamente as canalizações
PT
antes da colocação e utilização do produto.
Перед установкой и подключением устройства тщательно
RU
промыть канализационные трубы напором воды.
SECURITHERM
Individuele thermostatische mengkranen
NL
voor wastafel en spoeltafel.
Mezcladores termostáticos
ES
para lavabos y fregaderos.
Misturadora termostática individual
PT
para lavatório ou lava-louça.
Индивидуальные термостатические
RU
смесители для раковины и мойки.
NT H9726
Indice F
