FOR AC POWERED TRAINS AH601
CAUTION – ELECTRICALLY OPERATED PRODUCT
As with all electric products, precautions should be observed
during handling and use to reduce the risk of electric shock.
• Not recommended for children under 12 years of age.
• Turn off the power switch when it is not in use.
• Do not use or store in damp areas.
• Do not open the cabinet and try to repair it by yourself.
• Before returning your unit for repair or servicing, make certain
it is defective. Do not shut down your layout unnecessarily.
• Never operate a DC powered locomotive with your Pure Power
Dual. This may damage your locomotive motor.
• Pure smooth AC sine wave output assures compatibility with most AC
loco sound systems
• Dual throttle control to operate two trains on different tracks
• Horn/whistle, bell and direction buttons for each throttle
• Pilot light, master on-off switch
• Nostalgic retro design: rugged cabinetry with slide transformer for
smooth linear control
• Fixed 14 VAC output terminals for accessories
• Heavy-duty wire attachment lugs - no tools needed
• Voltage and current meters for each throttle to monitor layout conditions
INPUT:
120 VAC, 60 Hz
OUTPUT:
0 to 21 VAC variable for track, 14 VAC for accessories
270 Watts sustained power output
It is recommended that you save your Pure Power Dual
power pack box and styrofoam inserts.

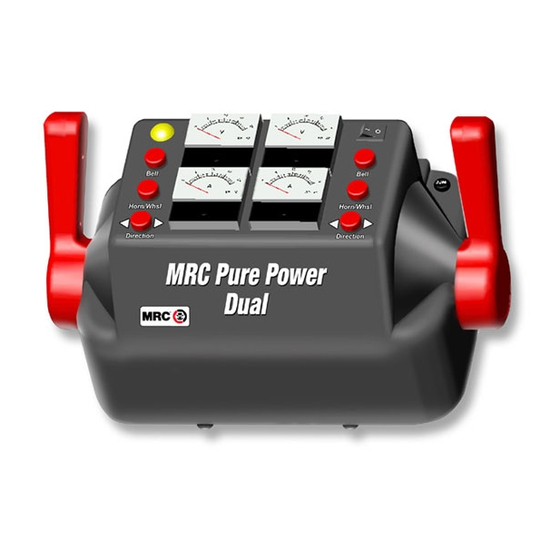

PURE POWER DUAL
TRAIN CONTROLLER
FOR YOUR PROTECTION
FEATURES
ELECTRICAL SPECIFICATIONS
Advertisement
Table of Contents
Related Manuals for MRC PURE POWER DUAL
Summary of Contents for MRC PURE POWER DUAL
- Page 1 ELECTRICAL SPECIFICATIONS INPUT: 120 VAC, 60 Hz OUTPUT: 0 to 21 VAC variable for track, 14 VAC for accessories 270 Watts sustained power output It is recommended that you save your Pure Power Dual power pack box and styrofoam inserts.
- Page 2 CONGRATULATIONS! Thank you for purchasing MRC’s advanced AC dual power train control. MRC’s Pure Power Dual has all the power needed to operate your AC powered trains. The true state of art and pure smooth Sine Wave Technology will enhance the performance of your layout for years to come.
- Page 3 Most sound equipped locomotives use a maximum operating voltage of approximately 20 VAC. Some may require even higher while others require as low as 17 VAC. The MRC Pure Power Dual puts out 21 VAC maximum. When using certain sound equipped locomotives that require less than 17 VAC, it is advisable to check the locomotive manufacturer’s...
- Page 4 SERVICE Your Pure Power Dual power pack has been thoroughly tested at the factory. If, for some reason, your Pure Power Dual is properly connected and still not functioning correctly, it may have to be returned for service. Please telephone our service department at (732) 225-6360 before returning your unit.
