MRC THROTTLEPACK 9950 Manual

THROTTLEPACK 9950
DC HIGH POWER TRAIN CONTROLLER
Caution – Electrically Operated Product
As with all electrical products, precautions should
be observed during handling and use to reduce
the risk of electric shock
WARNING: Children under the age of 14 must be
supervised by an adult when operating this product
As with any electrically operated unit,
it is best to periodically examine it and have any
potentially hazardous part repaired or replaced
___________________________________________
SPECIFICATIONS
INPUT: 120 VAC 60 Hz / 220 VAC 50 Hz
OUTPUT*: 0 to 15 VDC HO/N
0 to 18 VDC O/G
15/18 DC Fixed
TOTAL OUTPUT: 80VA
CONGRATULATIONS

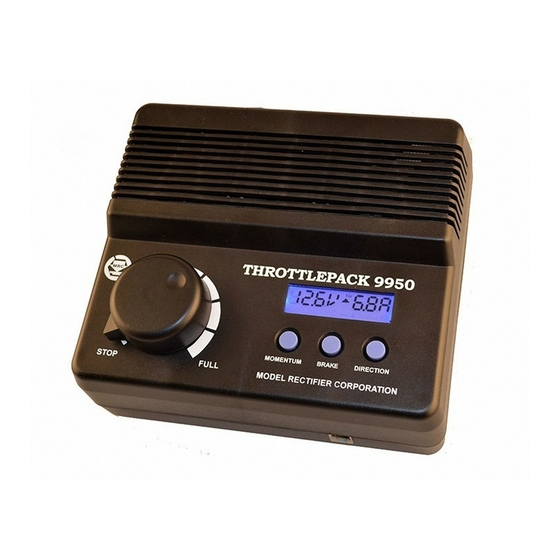

You have just purchased one of the most advanced train controls
on the market today: The Throttlepack 9950. The Throttlepack
9950 offers precise slow speed control, voltage and current
readings, all in a high-grade advanced engineering resin
thermoplastic housing for durability and safety. We are confident
that you will enjoy using your new Throttlepack 9950 now, and for
many years to come.
Item: 0001320
CONTROLS FOR DC OPERATION
Power Switch
The master on-off switch is the left side of the cabinet. OFF disconnects the
power going to your Throttlepack 9950 to completely shut down the unit. ON will
power the unit and LCD will light up indicating there is track power available.
There will be a slight delay in the LCD until the Throttlepack 9950 powers up or
powers down.
*Scale/Gauge Switch
On the bottom of the cabinet is a small micro-switch. Turn OFF the Throttlepack
9950 before toggling this switch. Slide this switch into the position to match the
output of the train controller for your layouts scale or gauge, (HO/N or O/G).
Sliding the switch towards the front of the cabinet will put the Throttlepack 9950
into the O/G mode. Placing the switch into the opposite direction sets the
Throttlepack 9950 to the HO/N scales.
Momentum Button
The momentum button allows you to toggle the momentum on/off. With the
momentum OFF a change in the throttle setting results in an immediate change
in the locomotive speed. With the momentum ON, the locomotive starts out more
slowly like a real locomotive. The LCD will display a light bulb icon when
momentum is on. This feature can substantially add to your model railroading
enjoyment. When a real locomotive is given an increase in throttle setting there is
a lag until the pre-set speed is reached. The heavier the load of the cars being
drawn, the longer the lag time.
Brake Button
The brake button on your Throttlepack 9950 is a momentary push button. Hold
down the brake button to operate the brake function. Your locomotive will slow at
a steady rate. To have a more gradual decrease in speed you need to activate
the Momentum by pressing the Momentum button and then use the Brake
button. After releasing the Brake button your locomotive speed will return
according to the setting on the Throttle Control.
Direction Button
The direction button reverses the polarity of voltage applied to the track and
reverses the direction of your locomotive. This button should only be operated
when the locomotive is not moving (throttle control turned to STOP) to prevent
damage to the locomotive mechanism. The LCD will display the direction you
have selected. Forward direction is indicated by an Up Arrow and reverse
direction is indicated by a Down Arrow. Note: Your Throttlepack 9950 will
remember the last direction used after powering down.
