Dc high power train controller

Advertisement

Caution - Electrically
Operated Product.
As with all electrical products,
precautions should be observed during
handling and use to reduce the risk of
electric shock.

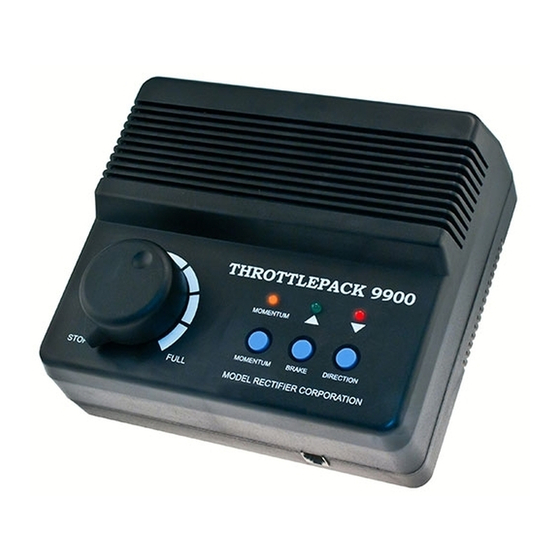

THROTTLEPACK 9900
DC HIGH POWER TRAIN CONTROLLER
For use by ages 14 years and older.
As with any electrically operated unit, it is best to periodically examine it and
have any potentially hazardous part repaired or replaced.
©2013 Model Rectifier Corporation
80 Newfield Ave., Edison, NJ 08837
732-225-2100
www.modelrectifier.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THROTTLEPACK 9900 and is the answer not in the manual?

Questions and answers

Summary of Contents for MRC THROTTLEPACK 9900

  • Page 1 THROTTLEPACK 9900 DC HIGH POWER TRAIN CONTROLLER For use by ages 14 years and older. As with any electrically operated unit, it is best to periodically examine it and have any potentially hazardous part repaired or replaced.
  • Page 2 Throttlepack 9900 offers precise slow speed control and a high grade advanced engineering resin thermoplastic housing for durability and safety. We are confident that you will enjoy using your new Throttlepack 9900 now and for many years to come. Specifications: INPUT: 120 VAC 60 Hz INPUT: 220 VAC 50 Hz (outside U.S.)
  • Page 3 Terminals: Variable DC: These terminals are for the attachment of your Throttlepack 9900 to the mainline of your layout. If the direction of your locomotive does not match the position of your direction LED’s, simply reverse the wires going to these terminals.
  • Page 4 3. When a short circuit or current overload occurs and the circuit protection device trips, place the Throttlepack 9900’s on-off switch in the OFF position, place the throttle in the STOP position, and correct the short or overload.
