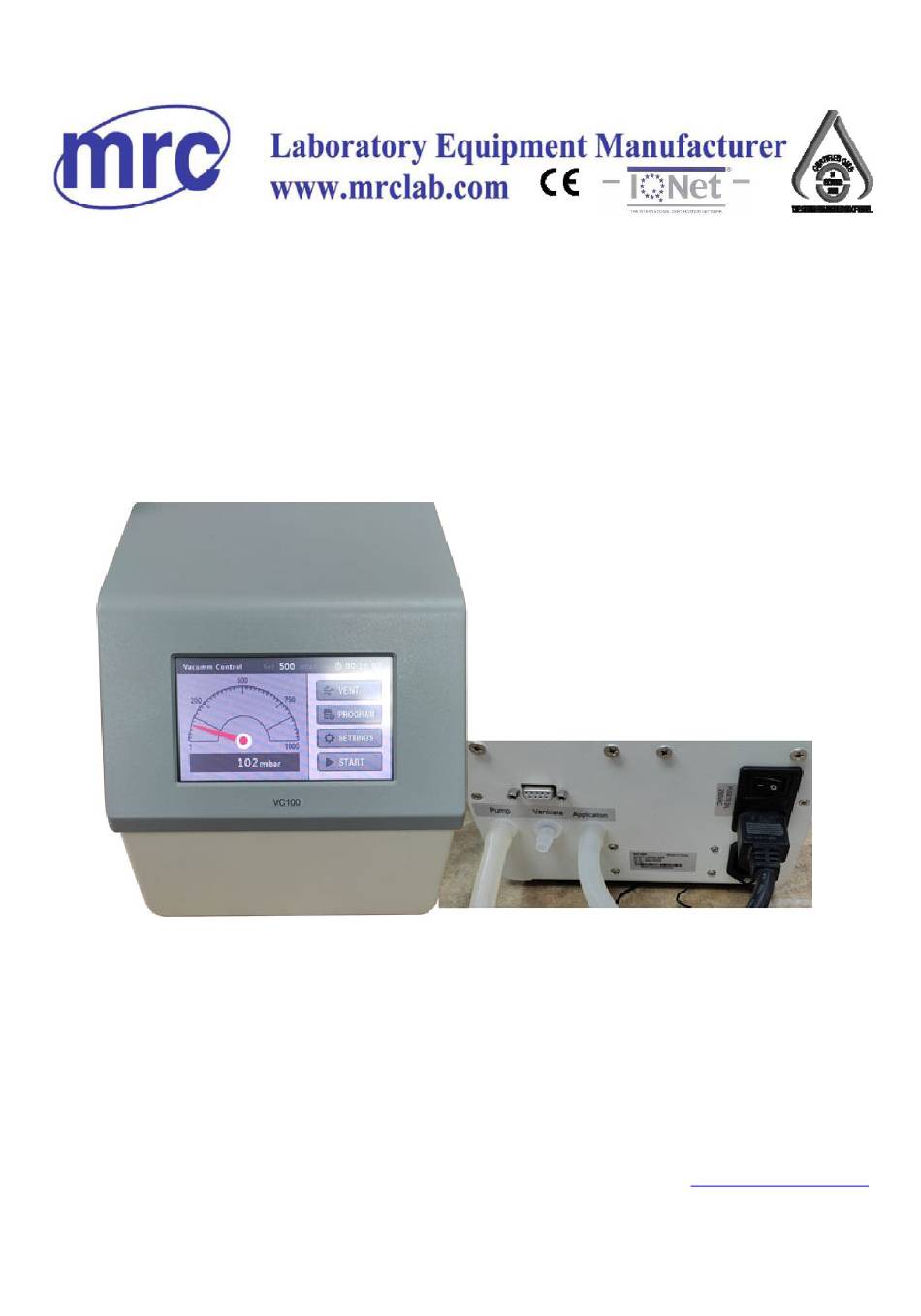

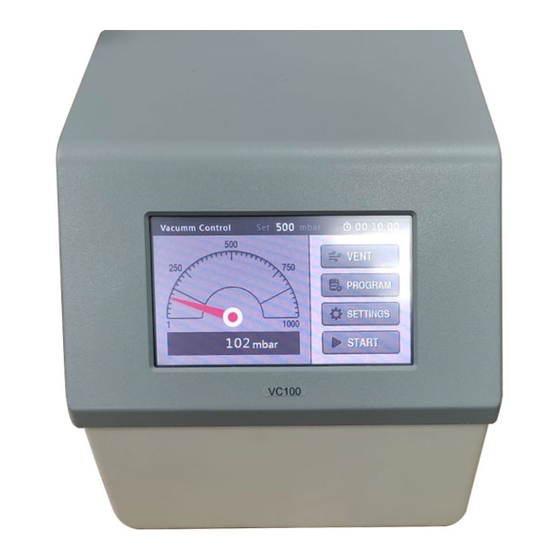

- Page 1 Vacuum controller Operating Instructions VC-100 PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.2.22...
- Page 2 Disclaimer • The intellectual property right of this manual belongs to Dragon Laboratory Instruments Limited (hereinafter referred to as “the Company”), i.e. relevant copyright belongs to the company. • Products of the company are under the patent protection of China and other countries and regions (including obtained patents and patents being applied for).
-
Page 3: Table Of Contents
Table of Contents SAFETY PRECAUTIONS..................1 PRODUCT OVERVIEW ..................2 2.1 S ......................2 COPE OF APPLICATION 2.2 T ...................... 2 ECHNICAL PARAMETERS 2.3 C ........................3 OMPONENTS OPERATING INSTRUCTIONS ................4 3.1 O ....................4 PACKAGE INSPECTION 3.2 O ........................ -
Page 5: Safety Precautions
1. Safety Precautions Caution! • Please carefully read the manual before operating the product, and observe the specifications on safe operation. • Ensure that only trained staff operates this product. Ground protection for safety! • Ensure that the power socket has been properly grounded before operating the product •... -
Page 6: Product Overview
2. Product overview 2.1 Scope of application • The instrument is designed for the application environments with dedicated independent power supply, such as schools, laboratories and factories. It is applied to control the vacuum level of the vacuum system with gas as the medium in the environments, under the circumstance as below : •... -
Page 7: Components
diameter Materials in contact with PTFE, PP, silica gel and ceramics steam 5℃-40℃ Steam temperature External dimension 189mm× 207mm× 193mm WxDxH Weight 4.0kg Input power supply AC110—240V, 50Hz/60Hz 10℃-40℃, ≤80%RH，the altitude does not exceed Working temperature 2000 meters Pollution levels Input power 600W Maximum output power... -
Page 8: Operating Instructions
Three-in-one Unit power input, with a switch controlling the switch power supply to the entire unit. Communication Communication interface Pump interface Connects the vacuum pump Air vent Connects with air or inertia gas if necessary. Load interface Connects the load, such as revolving evaporator. Power output Provides power supply to vacuum pump. -
Page 9: Operation
3.2 Operation 3.2.1 Instrument preparation • The instrument should be place on a stable surface and well ventilated without any flammables or explosives. • Ensure that the label indicated the correct voltage before connecting the device to power supply. • Ensure that the power socket is grounded properly. - Page 10 icon changed to , gently touch it again to stop the control program. Table 4 Note: „PROGRAM‟ and „SETTINGS‟ buttons cannot be operated if the control program starts.
- Page 11 3.2.3. Instrument configuration Gently touch the "SETTINGS" button to pop up the password soft keyboard, enter the password (the default initial password is 6666), then press “enter” key, confirm the password is correct and then pop up the setting interface, as shown in the figure below. Fig.
- Page 12 3.2.4. Operation mode selection and configuration Click the “Program” button to pop up the program selection interface as shown in the following figure. Fig. 3.2.3 Click “Vacuum control” in the “Function” section to choose the single-point control operation mode, click “Program” to select the program operation mode.
- Page 13 Name Function Introduction Set the vacuum value within a range of 1 - local atmospheric Set vacuum(mbar) pressure (P0) Hysteresis value affects the pressure fluctuation range and the Hysteresis(mbar) ON/OFF frequency of vacuum pump. Setting range 1-300mbar Time(min) Time can be set within a range of 0-5999min Table 6 After setting the parameters, click “OK”...
- Page 14 (1) Program selection Name Function introduction Open Select the program number Hysteresis value affects the pressure fluctuation range Hysteresis(mbar) and the ON frequency of vacuum pump Setting range 1-300mbar Table 7 After setting the parameters, click “OK” key to enter the program operation interface as shown in the following figure.
- Page 15 (2) Program editing Click the “Edit” button in the “program selection interface” to pop up the program editing interface as shown in the following figure. Program editing area Program selection button Fig. 3.2.7 Name Function introduction Sequence No. of program execution Time(min) Timing time, set within a range of 0-5999min Set the vacuum value within a range of 1 - local...
-
Page 16: Maintenance
will be skipped to the next control program. 3.2.5. Ventilation Gently touch the “VENT” button to vent air and lift it to stop venting. 4. Maintenance Proper maintenance and operation of the instrument in good working state can extend its service life. Keep the instrument dry and clean in routine operations. -
Page 17: Failure Diagnosis
Check whether the hysteresis Increase the hysteresis frequently. value is too small. value. 6. Product certification MRC certifies that the construction of this product conforms in accordance to national and industry standards and ISO9001 standards, and other international standards organizations. -
Page 18: Warranty Policy
A lthough great care is used when packaging items for shipment, MRC cannot accept liability for transportation of goods from MRC and transit damage is not covered by warranty For claims under the warranty please contact your local supplier.
