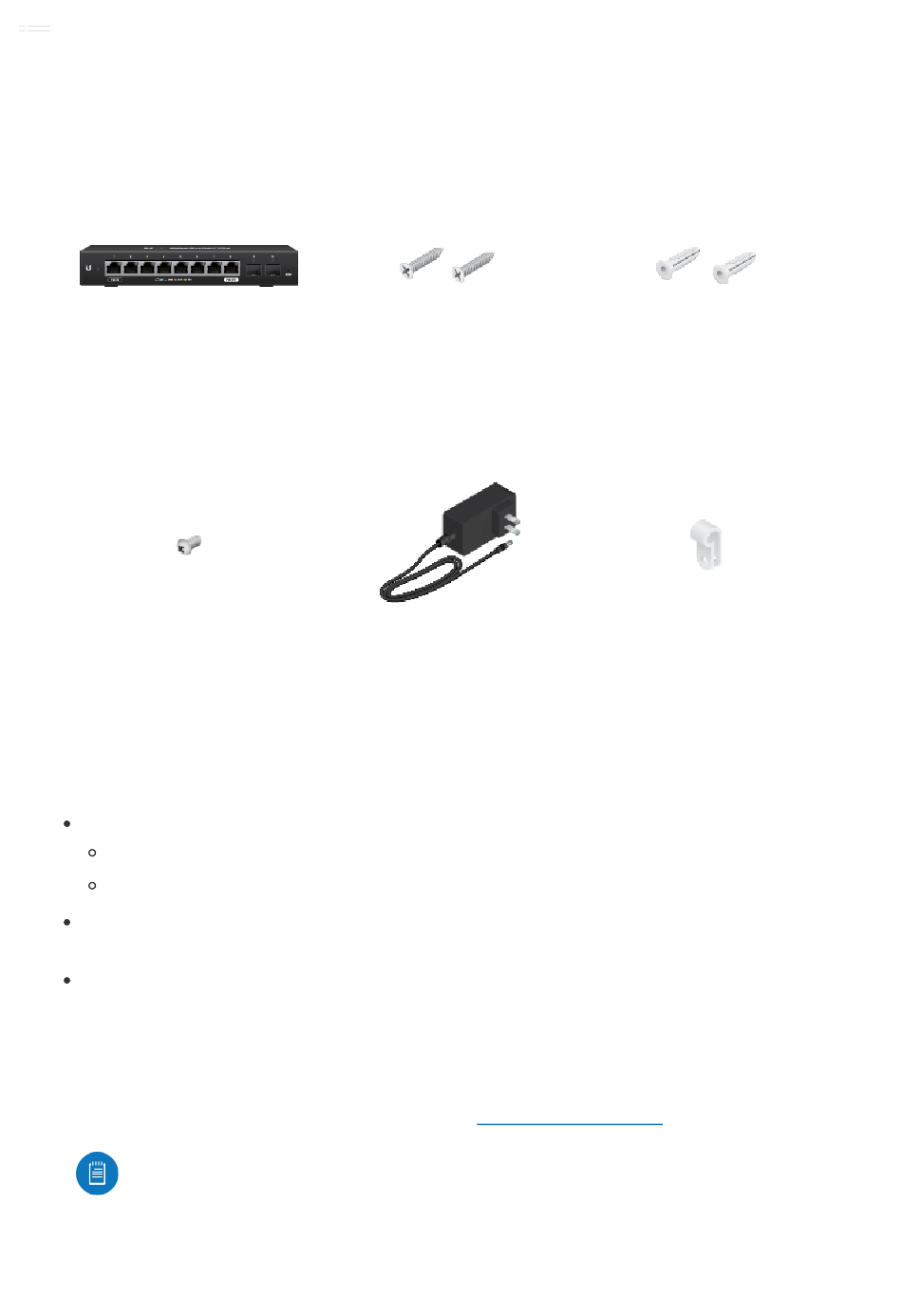

Package Contents

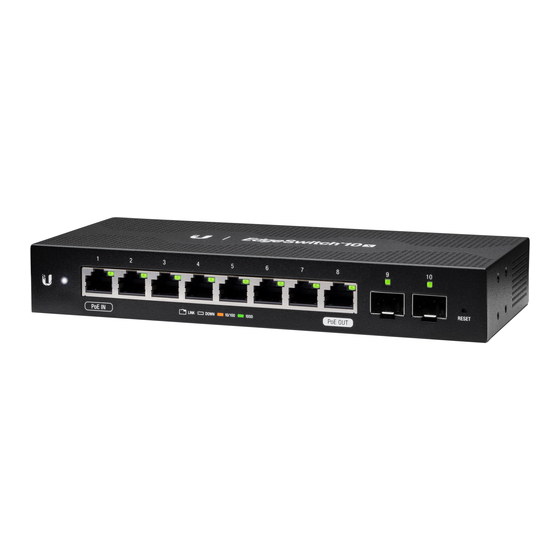

EdgeSwitch 10X
Ground Screw
Installation Requirements
Wall-mounting (optional)
Drill with 6 mm drill bit
Phillips screwdriver
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be used
for all wired Ethernet connections and should be grounded through the AC
ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded Ethernet
cable from Ubiquiti. For more details, visit:
Note:
Although the cabling can be located outdoors, the EdgeSwitch itself
should be housed inside a protective enclosure.
Hardware Overview
ES-10X Quick Start Guide
Wall Mount Screws (Qty. 2)
Power Adapter (24V, 1A)
ui.com/toughcable
Wall Mount Anchors (Qty. 2)
Cable Clip
