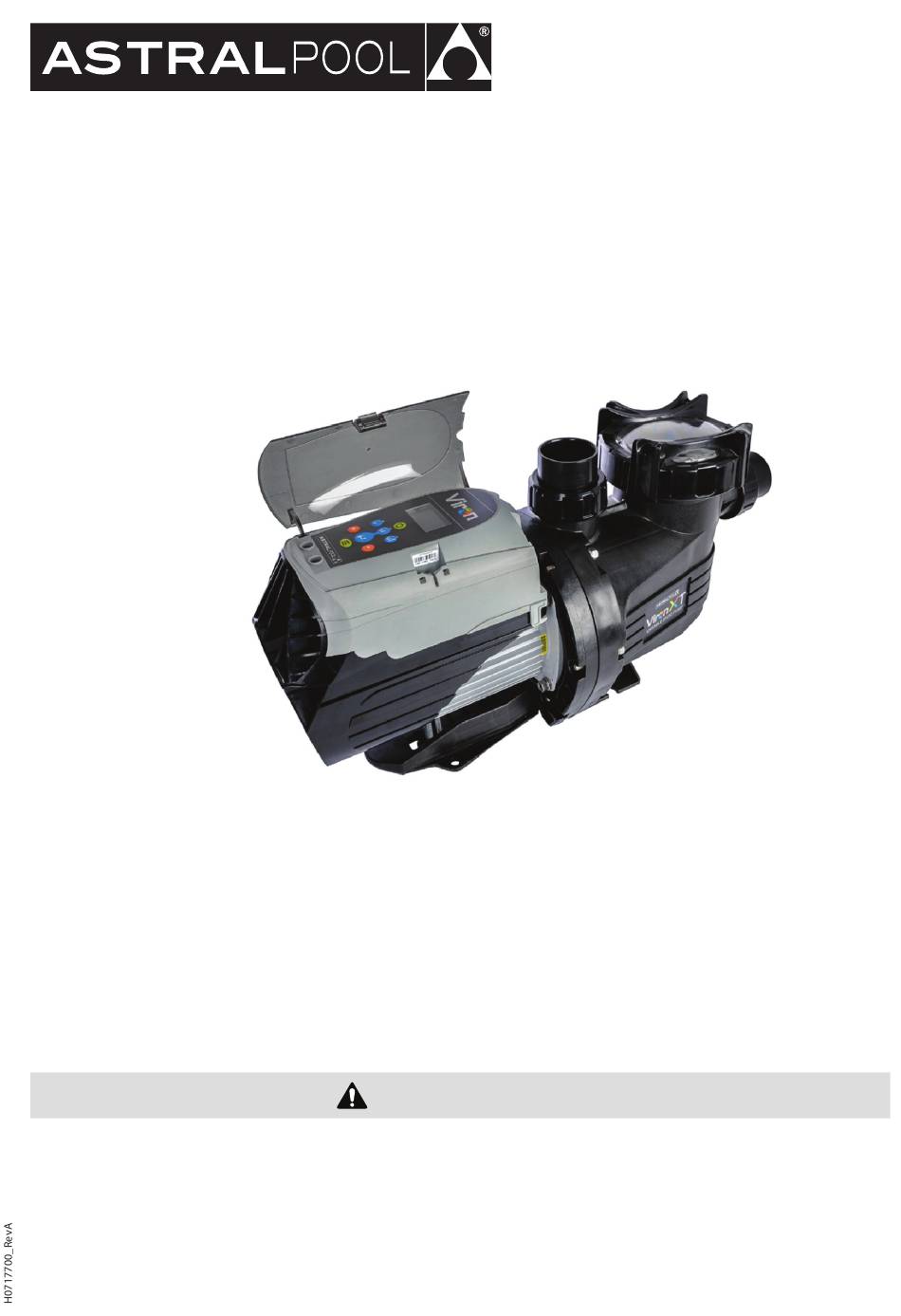

INSTALLATION MANUAL
FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in
pool equipment in accordance with the latest applicable version of AS/NZS 3000, along with any other applicable
local and national installation codes/standards", and any other local applicable regulations. Before installing
this product, read and follow all warning notices and instructions that accompany this product. Failure to follow
warning notices and instructions may result in property damage, personal injury, or death. Improper installation
and/or operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury,
property damage, or death.

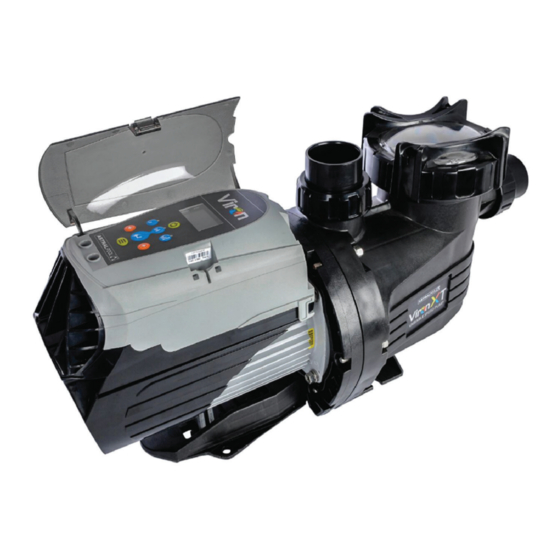

Viron xt series 2
pumps
WARNING
P320XT and P520XT models
Advertisement
Table of Contents
Related Manuals for Astralpool Viron XT 2 Series
Summary of Contents for Astralpool Viron XT 2 Series
- Page 1 INSTALLATION MANUAL P320XT and P520XT models Viron xt series 2 pumps WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment in accordance with the latest applicable version of AS/NZS 3000, along with any other applicable local and national installation codes/standards”, and any other local applicable regulations.
- Page 2 SERIAL NUMBER NOTES For full warranty terms and conditions and to register your warranty, simply visit www.astralpool.com.au/warranty and complete your details. Or scan the QR code and be taken directly to the registration page. Record your equipment details here for quick reference: Model No.:...
-
Page 3: Table Of Contents
viron xt series 2 pumps Installation Manuals Table of Contents Section 1. Important Safety Instructions ... 4 Section 6. Viron XT Series 2 Pump Controls ...........16 Section 2. General Information ......7 Viron XT Series 2 Pump Control Panel ......16 Technical Assistance ..............7 Speed Selections .............. -
Page 4: Important Safety Instructions
To reduce the risk of property damage or injury, do not attempt to change the backwash (multiport, slide, or full flow) valve position with the pump running. WARNING AstralPool Pumps are powered by a high-voltage electric motor and must be installed by a licensed or certified electrician or a qualified swimming pool service technician. WARNING The pump is for fixed installations only and to be used in conjunction with swimming pool equipment. - Page 5 • Water temperature for test must NOT EXCEED 38°C (100°F). • Limit test to 24 hours. After test, visually check system to be sure it is ready for operation. Notice: These parameters apply to AstralPool equipment only. For non-AstralPool equipment, consult the equipment manufacturer.
- Page 6 viron xt series 2 pumps viron xt series 2 pumps Installation Manual Installation Manual WARNING SUCTION HAZARD. Can cause serious injury or death. Do not use this pump for wading pools, shallow pools, or spas containing bottom drains, unless pump is connected to at least two (2) functioning suction outlets.
-
Page 7: General Information
Installation Manuals Section 2. General Information Flow Rate Specification This manual provides installation and operation Model P320 XT P520 XT instructions for the AstralPool Viron XT Series 2 High Flow Rate 320 lpm 520 lpm pumps. (2850 RPM) Medium Flow Rate... -
Page 8: Getting Started
viron xt series 2 pumps Installation Manual Technical Specifications Section 3. Getting Started • Power: P320XT - .85 Kw output, 240V 50 Hz, 7.5 Amp, Install the Viron XT Series 2 Pump in accordance with max speed 2850 rpm; P520XT - 1.5 Kw output,240V the procedures in this manual, local codes and 50 Hz, 8.0 amp, max speed 2850 rpm ordinances, and in accordance with the latest edition... -
Page 9: Installation
NOTE: When the pool equipment is located below the pool surface a leak can result in large scale water loss or flooding. AstralPool cannot be responsible for such water loss or flooding or damage caused by either occurrence. Install the pump such that any disconnecting means... -
Page 10: Pump Installation
Pump Installation Figure 6. Viron XT Series 2 Pump Good Piping Installations WARNING AstralPool pumps are powered by a high voltage electric motor and must be installed by a licensed or certified electrician or a qualified swimming pool service technician. - Page 11 viron xt series 2 pumps Installation Manual POOL/SPA PUMP 3 WAY VALVE FILTER HEATER SKIMMER CHECK VALVE (Always install a corrosion resistant check valve when any sanitation equipment, including erosion feeders and salt chlorination systems are installed, see section 5.4 for more details) SPA DRAIN* (Suction Outlet)
-
Page 12: Water Connections
WARNING location and vertical riser used to reach pump inlet. AstralPool pumps are rated to a maximum head of 25 Viron pumps include Printed Circuit Boards (PCBs) and microchips. It is necessary to turn power off... - Page 13 Remove 2 Philips head screens from rear of pump and the data port cover is removed by hand. Plug RJ12 6 wire flat cable purchased from AstralPool into rear of pump and reassemble. To achieve a proper seal, press the flat cable under the guide tabs (detailed view A).
-
Page 14: Operation
Should the pool have areas where the water does not turn over with this setting, increase the speed until the recommendations. desired water movement is obtained. For technical assistance, call AstralPool Technical WARNING Support at 1300 186 875. To avoid risk of property damage, severe personal injury or death, verify that all power is turned off before starting this procedure. -
Page 15: Conduct Pressure Test
Close the valve to seal the water in the system. Locking Observe the system for any leaks or pressure decay. If there are lid leaks, repeat this procedure. For AstralPool Technical Support, call 1 300 186 875. O-ring Basket Lift... -
Page 16: Viron Xt Series 2 Pump Controls
• The total volume of water in your pool should be skimmer box. When connected to an AstralPool turned over at least once a day. compatible salt chlorinator, Viron Connect Touch Screen Control System, we recommend that for one •... -
Page 17: Programming
1. Use the up and down arrows to change the end of 6.3.2 Setting the Current Time Timer 1. If connected to a compliant AstralPool Salt Chlorinator Timer 2 will now appear on the LCD Screen. Repeat or EQ dosing controller connect data cable between instructions 4. to 6. Above. - Page 18 PRIM (priming program), CLK (clock at Higher Flow Rate setting) and CONF (Configuration menu). Have PUMP in MANUAL OFF Refer to your AstralPool compliant Chlorinator, “EQ”, Press MENU BUTTON TWICE until PRIM appears on the RolaChem Dosing Control or Viron Connect Touch screen Screen Control manual for details of programming the pump speed and operating hours.
-
Page 19: Xt Pumps And Other Products
viron xt series 2 pumps Installation Manual XT Pumps and Other Products 6.4.1.3 Viron XT Series 2 Pumps, VX S (Non-timer) Model Chlorinator and Viron Connect 10 Remote Control System 6.4.1 Use With Remote Controls • Timer periods set up in controller 6.4.1.1 Viron XT Series 2 Pump Standalone •... - Page 20 When flame is lost Runs at default set speed or If using a compatible AstralPool Gas Heater you can Medium speed if heater power is ON. automatically increase the speed of your Viron XT...
-
Page 21: Maintenance
A misaligned basket will cause the lid to be improperly seated, allowing an air leak, which could NOTE AstralPool recommends having a qualified service result in pump damage. technician or electrician properly disconnect the electrical wiring at the switch or junction box. Once... -
Page 22: Maintenance Schedule
viron xt series 2 pumps Installation Manual Maintenance Schedule The Viron XT Series 2 Pump incorporates moving parts and withstands high velocity water with chemicals in it. Some of these parts will wear in the normal course of use and require regular checks and maintenance.Performing these checks and maintenance will identify parts that have worn and require repair/replacement before further serious... -
Page 23: Troubleshooting
Section 8. Troubleshooting When there is an error condition, a message is displayed on the screen. When the error situation is corrected, the error message ends automatically. If the pump continues to perform incorrectly, please contact AstralPool at 1 300 186 875. -
Page 24: Spare Parts
viron xt series 2 pumps Installation Manual Section 9. Spare Parts Series 2 Model P320XT and P520XT... -
Page 25: Series 2 Model P320Xt And P520Xt Spare Parts List
viron xt series 2 pumps Installation Manual Series 2 Model P320XT and P520XT Spare Parts List Item # Description Part # Quantity P320XT P520XT 1/2 TURN PUMP LID ASSEMBLY SP40089 LID O-RING 70006 LINT BASKET 40065 PIPE FITTING COMPONENT BAG 78303 CHECK VALVE ASSEMBLY 598770... -
Page 26: Section 10. Viron Xt Series 2 Pump Control Flow Diagram
viron xt series 2 pumps Installation Manual Section 10. Viron XT Series 2 Pump Control Flow Diagram PROMPT PROMPT HOUR MINUTE PROMPT AM/PM CURRENT TIME FLASH FLASH GOES TO TMR IF TURNED ON IN CONF OR PRIM IF NOT HOUR CHANGES MINUTE CHANGES AM/PM CHANGES TIMER... -
Page 27: Section 11. Performance Curves
viron xt series 2 pumps Installation Manual Section 11. Performance Curves 11.1 Series 2 Model P320XT 25.0 20.0 15.0 Overdrive High Speed = 2850 RPM 10.0 Medium Speed = 2000 RPM Low Speed = 1325 RPM Flow Rate (L/min) 11.2 Series 2 Model P520XT 25.0 20.0... - Page 28 Fluidra Group Australia 219 Woodpark Road Smithfield NSW 2164, Australia 1.300.186.875 www.astralpool.com.au ©2020 Fluidra S.A. All rights reserved. This document is subject to change without notice.
