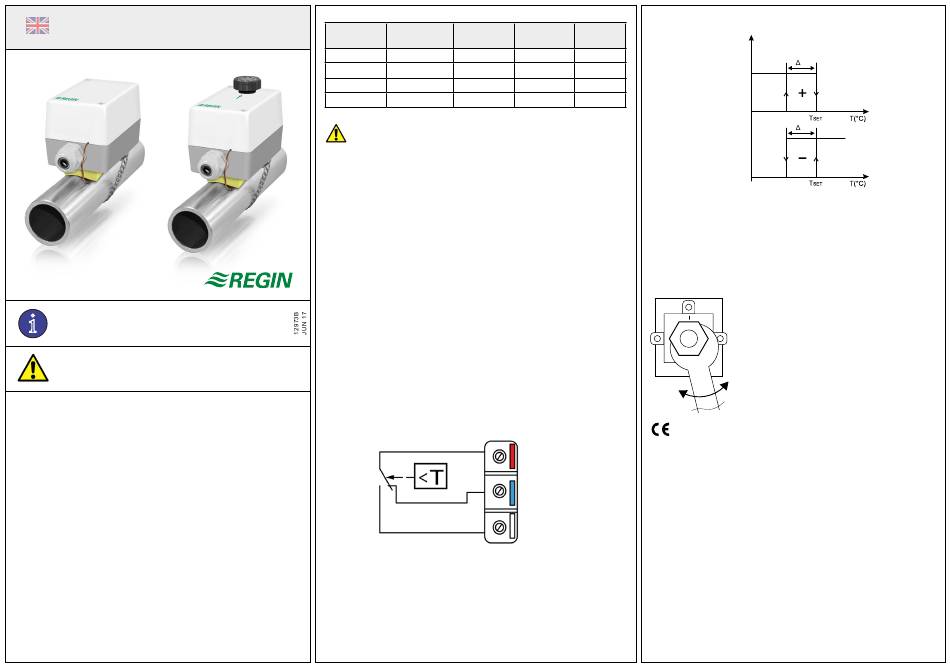

Regin MTIS Series Instructions

INSTRUCTION
EN
MTIS
i
Read this instruction before installation
and wiring of the product
Consult documentation in all cases where this symbol
is used, in order to find out the nature of the potential
hazards and any actions to be taken

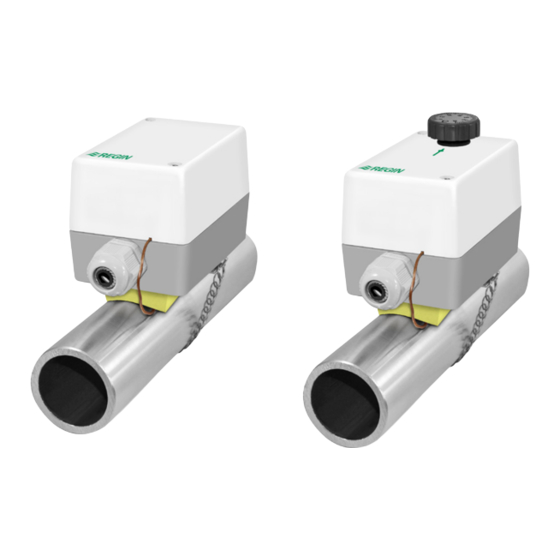

Mechanical capillary thermostat

The MTIS electro-mechanical thermostats are constructed around
a fluid-filled bulb and sensor housing that transfers the changes in
temperature to a change-over relay. The relay is capable of breaking
up to 15 A at 230 V AC. Each model also has a sensor element and a
mounting clamp for direct fixing on a pipe.

Technical data

Sensor element Liquid-filled copper bulb for contact
Contacts Dust-tight microswitches with SPDT
contacts (heat/cool)
Switch capacity 15 (8) A, 24...250 V AC
Ambient temperature -35...+65°C
Ambient humidity 10...90 % RH (non-condensing)
Housing Bayblend base, ABS cover
®
Protection class IP65
Isolation class 1
Weight 410 g
Storage temperature -40...+70°C
Storage humidity up to 95% RH
Article Tempera- Hysteresis
ture range
MTIS60S 0...60°C 2...20 K
MTIS60SH 0...60°C 2...20 K
MTIS90S 20...90°C 2...20 K
MTIS90SH 20...90°C 2...20 K
Before installation or maintenance, the power supply must first be discon-
nected in order to prevent potentially lethal electric shocks! Installation or
maintenance of this unit should only be carried out by skilled professio-
nals.

Installation

The unit can be mounted in any position.
Remove the external knob and unscrew both screws on the cover. Use
the supplied screws when mounting on wall or other surface.

Wiring

Heating:
Connect to the red and blue terminal. The contact will open when the
temperature rises.
Cooling:
Connect to the red and white terminal. The contact will open when the
temperature drops.
MTIS

Logic activation

Max. bulb Hidden
temp. setpoint
75°C
*
75°C
95°C
Heating
Contacts red-blue
*
95°C
Cooling
Contacts red-white

Reset

The set range may be reset by carefully turning the screw under the
cover.
-

Low Voltage Directive (LVD) standards

Red
This product conforms to the requirements of the European Low
Voltage Directive (LVD) 2014/35/EU through product standards
EN 60335-1.
Blue

RoHS

White
This product conforms to the Directive 2011/65/EU of the European
Parliament and of the Council through standard EN 50581:2012.
Contact
AB Regin, Box 116, 428 22 Kållered, Sweden
Tel: +46 31 720 02 00, Fax: +46 31 720 02 50
www.regincontrols.com, info@regincontrols.com
NS
ON
OFF
NS
ON
OFF
ΔNS: Hysteresis
TSET: Setting setpoint
ON: Closed contact
OFF: Open contact
+
1
