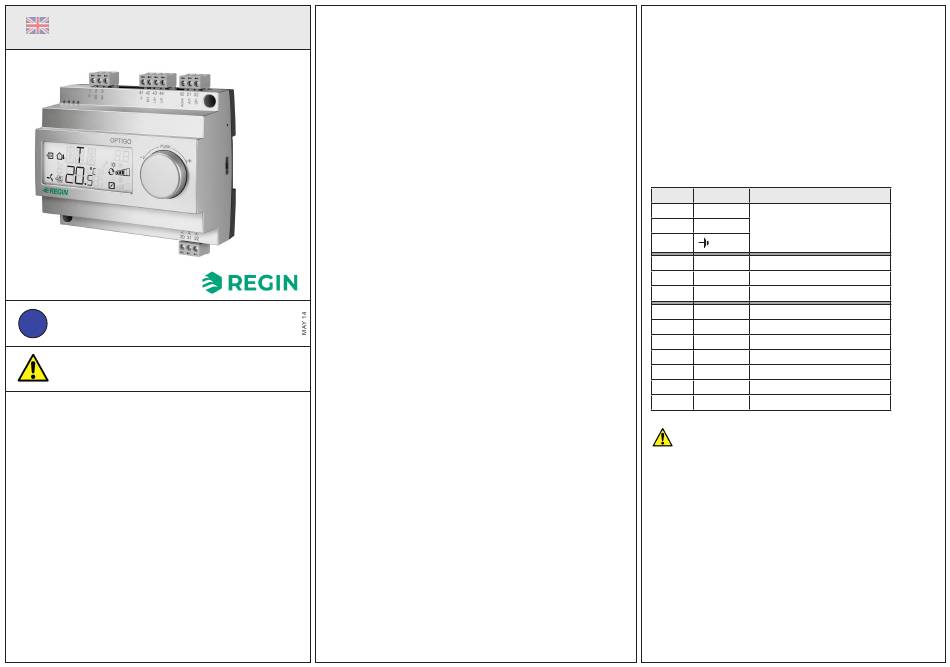

Regin OP5U Instruction Manual

INSTRUCTION
EN
OP5U
i i
Read this instruction before installation
and wiring of the product
Consult documentation in all cases where this symbol
is used, in order to find out the nature of the potential
hazards and any actions to be taken
Controller with display
OP5U is a pre-programmed, configurable controller. It has 5 inputs/
outputs and can be configured to control temperature, CO
or pressure. All configuration and normal handling is done using the
display and the knob on the front. From revision R18, it is possible to
connect an external PT1000 setpoint device.
Technical data
Supply voltage 24 V AC ±15%, 50...60 Hz
Power consumption 3 VA
Ambient temperature 0...50°C
Ambient humidity Max. 90% RH
Storage temperature -20...70°C
Display Numeric / graphic. Background
illumination.
Inputs/outputs
Terminal blocks
Protection class
Material, casing
Weight
Dimensions
Pollution degree
Temperature settings
Temperature, supply air
Setpoints
External setpoint
Neutral zone
P-band
I-time
Min. limit damper
Other settings
Setpoint values
CO
2
General (GEN)
Pressure (Pa)
Scaling of UI1
CO
2
General
Pressure
Neutral zone
P-band
CO
2
General (RH)
, humidity
Pressure (Pa)
2
I-time
Control setting 5
Outdoor compens. start
Setpoint pressure at
-20°C outdoor temp.
Refer to connection illustrations and
table below
Disconnectable, so-called lift type for
cable cross-section max 2.5 mm 2
IP20
Polycarbonate, PC
215 g incl. terminal blocks
122 x 120 x 64 mm (WxHxD incl. terminals,
fixed installation)
2
-20..+60, 20...100, 60...140°C
-18...+60, 22...100, 62...140°C
0...40°C
0...10°C
0...99°C
0...990 s
0...99%
0...100% of max set value on UI1
0...100% of max set value on UI1
0...100% of max set value on UI1
0...10 V DC in
10...9900 ppm
0...100%
100 Pa...2500 kPa
12.5% of max
0...100% of UI1
0...100% of UI1
0...300% of UI1
0...990 s
-20...+60°C
0 Pa...2500 kPa
OPTIGO OP5U
Installation
OP5U must be mounted in a DIN-standard casing (minimum 7
modules) or in a cabinet, either on a DIN-rail or, using the two screw-
pockets provided, by being screwed to any suitable flat surface in the
cabinet. The controller can also be mounted in a cabinet door or other
control panel, using a suitable front-mounting kit (Optigo-KIT).
The controller must be connected to a 24 V AC safety insulating
transformer providing mains insulation.
Follow table 1 below for connection.
Table 1. I/O connection terminals. Terminals 2, 20 and 50 are internally con-
nected.
Terminal Designation Operation
1 G Supply voltage 24 V AC
2 G0
3
20 AGnd Ref. for AO1 and AO2
21 AO1 0...10 V DC Output
22 AO2 0...10 V DC Output
41 DI+ Reference for DI1
42 DI1 Digital input
43 UI+ Reference for UI1 digital mode
44 UI1 0...10 V DC or Digital input
50 AGnd Ref. for AI1, SPI and UI1 analogue
51 AI1 PT1000 temp. sensor input
52 SPI Input PT1000 setpoint device
Digital inputs DI and UI are only intended to be used with a
potential-free contact or switch. If the OP5U and active sensors and
actuators connected to it share transformer, it is essential that the
same transformer-pole is used as reference for all the equipment.
Failure to do so will prevent the equipment from functioning as
intended and may also lead to damages.
For best protection against disturbances, a shielded twisted-pair cable
should be used for wiring the sensors. Ground the shield at one end.
The protection provided by the equipment may be impaired by im-
proper use.
1
