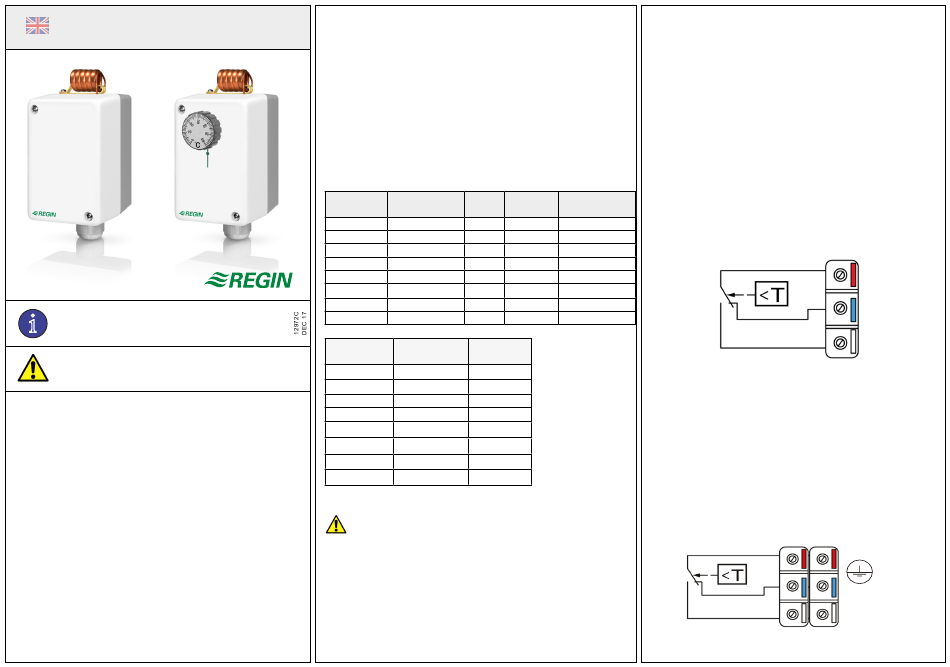

Regin MTIR30S Instructions

INSTRUCTION
EN
MTIR
i
Read this instruction before installation
and wiring of the product
Consult documentation in all cases where this symbol
is used, in order to find out the nature of the potential
hazards and any actions to be taken

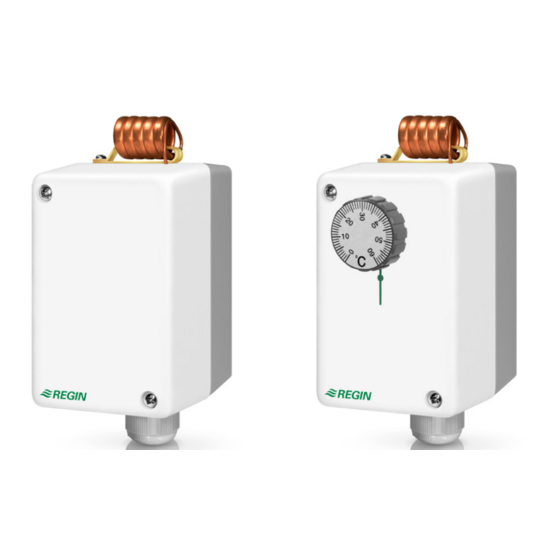

Mechanical capillary thermostat
The MTIR electro-mechanical thermostats are constructed around a
fluid-filled capillary tube and sensor housing that transfers the chan-
ges in temperature to a change-over relay. In thermostats constructed
for wall mounting, the capillary tube is wound and mounted on top of
the housing. The relay is capable of breaking up to 15 A at 230 V AC.
It comes in a 1-step or 2-step model.
Technical data
Sensor element Liquid-filled coiled copper bulb
Contacts Dust-tight microswitches with SPDT
contacts (heat/cool)
Switch capacity 15 (8) A, 24...250 V AC
Ambient temperature -35...+65°C
Ambient humidity 10...90 % RH (non-condensing)
Max. bulb temperature
65°C
Housing Bayblend base, ABS cover
®
Protection class IP65
Isolation class 1
Weight 450 g
Storage temperature -40...+70°C
Storage humidity up to 95% RH
Article Temperature Steps
range
MTIR30S -30...+30°C 1
MTIR30SH -30...+30°C 1
MTIR30 -30...+30°C 1
MTIR30-2 -30...+30°C 2
MTIR60S 0...60°C 1
MTIR60 0...60°C 1
MTIR60SH 0...60°C 1
MTIR60-2 0...60°C 2
Article Max. bulb Hidden
temp. setpoint
MTIR30S 65°C
*
MTIR30SH 65°C
MTIR30 65°C
MTIR30-2 65°C
MTIR60S 65°C
MTIR60 65°C
MTIR60SH 65°C *
MTIR60-2 65°C
Before installation or maintenance, the power supply must first be discon-
nected in order to prevent potentially lethal electric shocks! Installation or
maintenance of this unit should only be carried out by skilled professio-
nals.
MTIR
Installation
The unit can be mounted in any position.
Remove the external knob and unscrew both screws on the cover.
Use the supplied screws when mounting on wall or other surface.
Wiring
1-step models
Heating:
Connect to the red and blue terminal. The contact will open when the
temperature rises.
Step diff. Hysteresis
Cooling:
max
Connect to the red and white terminal. The contact will open when the
2...15 K
temperature drops.
2...15 K
1 K
2...5 K 1 K
2...15 K
1 K
2...15 K
2...5 K 1 K
2-step models
Heating:
Connect to the red and blue terminal. The contact will open when the
temperature rises. The step 2 contact will open first followed by the
step 1 contact.
Cooling:
Connect to the red and white terminal. The contact will open when
the temperature drops. The step 2 contact will open first when the
temperature drops, followed by the step 1 contact.
Red
Blue
White
Red
Blue
White
1
