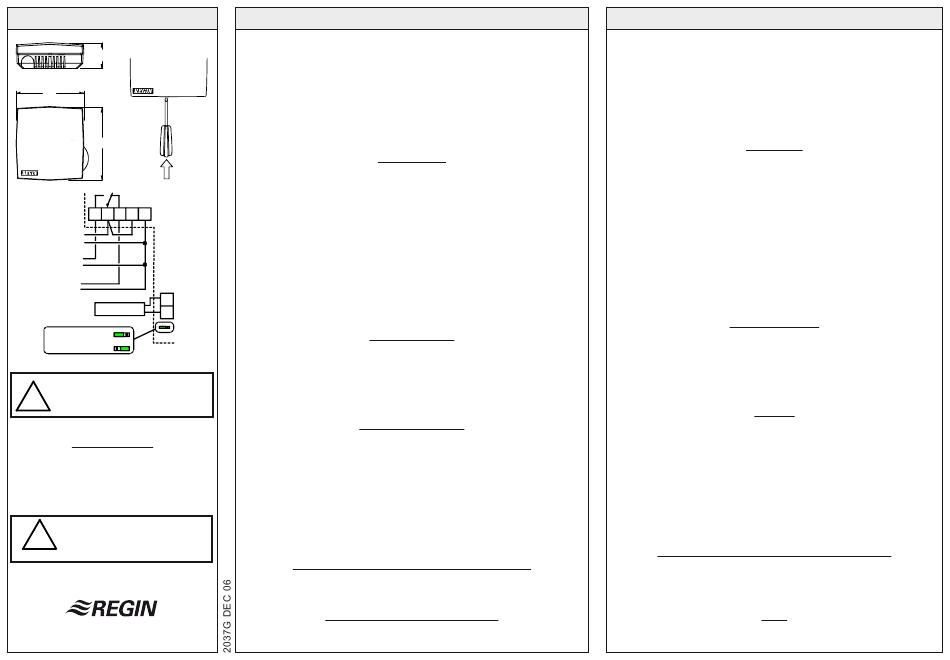

INSTRUKTION
Enstegs rumstermostat
TM1-P är en enstegs rumstermostat med ett växlande relä för
värme- eller kylreglering. Termostaten kan dock ej användas för
samtidig styrning av både värme och kyla.
TM1-P kan användas med inbyggd eller extern givare.
Installation
Tag av frontlocket genom att med en skruvmejsel trycka in den
fjädrande tungan mitt på nedergaveln. Se fig 1.
Fäst TM1-P på väggen. Skruvfickorna har c:c avstånd 60 mm för att
passa på väggdosa.
Skall TM1-P användas med den inbyggda givaren bör den placeras
c:a 1,5m över golvet på plats med för rummet representativ tempe-
ratur.
Anslut matningsspänning, belastning och, i de fall då sådan
används, den externa givaren.
Sätt bygeln bredvid givarplinten i rätt läge för det valda
givaralternativet.
Som extern givare skall givare ur Regins TG-serie användas.
Tekniska data
Matningsspänning
230 VAC +/-15%, 50-60Hz.
Relä
16A 230V AC växlande.
Inställningsområde
0...30°C.
Kopplingsdifferens
1K.
Skyddsklass
IP30.
Plintanslutningar
1.
230 VAC matningsspänning.
Byglas normalt till plint 3.
Skall reläet användas potentialfritt kopplas inkommande
matning direkt till plint 1.
2.
Matningsnolla.
3.
Relä gemensam pol.
4.
Reläkontakt värme.
5.
Reläkontakt kyla.
G-G
Anslutning extern givare.
EMC emission och immunitet standard
Produkten uppfyller kraven för gällande Europeiska EMC standard
CENELEC EN50081-1 och EN50082-1 och är CE-märkt.
LVD, lågspänningsdirektivet
Produkten uppfyller kraven för gällande Europeiska LVD standard
IEC 730-1 och IEC 730-2-1.
INSTRUCTIONS
One step room thermostat
TM1-P is a single-step room thermostat with a change-over
relay for either heating or cooling. The thermostat can not
however be used for simultaneous control of both heating and
cooling.
TM1-P may be used with the internal or an external sensor.
Installing
Remove the front cover by depressing the plastic tongue in the
middle of the lower edge with a screwdriver. See fig 1.
Mount the TM1-P on the wall. The screw pockets have a c:c
distance of 60mm to fit on a wallbox.
If the TM1-P is to be used with the internal sensor it should be
mounted approx. 5 ft above floor level at a location with a
representative temperature.
Connect the wiring for the supply voltage, the output and, when
used, the external sensor according to the wiring diagram.
Set the jumper next to the sensor terminals to the position
indicated for the choice of sensor you have made.
As external sensor a Regin TG-type sensor must be used.
Technical data
Supply voltage
230 VAC +/-15%, 50-60Hz.
Relay
16A 230V AC change over.
Setting range
0...30°C.
Switching differential
1K.
Protection class
IP30.
Wiring
1.
230 VAC Supply voltage.
Connect to terminal 3.
If the relay is to be used potential free, wire the
supply voltage directly to terminal 1.
2.
Supply common.
3.
Relay contact common.
4.
Relay contact heating.
5.
Relay contact cooling.
G-G
External sensor.
EMC emissions & immunity standards
This product conforms with the requirements of
European EMC standards CENELEC EN 50081-1 and
EN 50082-1 and carries the CE mark.
LVD
This product conforms with the requirements of
European LVD standards IEC 730-1 and IEC 730-2-1.
