Dimensions - MULTIQUIP MQ POWER SG1400C4F Operation Manual

SIDE VIEW
N
L
Table 4. Dimensions
Reference

Dimensions

Letter in. (mm)
A 92 (2,336.8)
B 119.6 (3,038.6)
C 100 (2,514.6)
D 25.25 (641.3)
E 31.5 (800.1)
F 25.5 (647.7)
G 79.5 (2,019.3)
H 136.25 (3,460.8)
PAGE 12 — SG1400/1600C4F STUDIO GENERATOR • OPERATION MANUAL — REV. #0 (07/22/20)
TOP VIEW
C
K

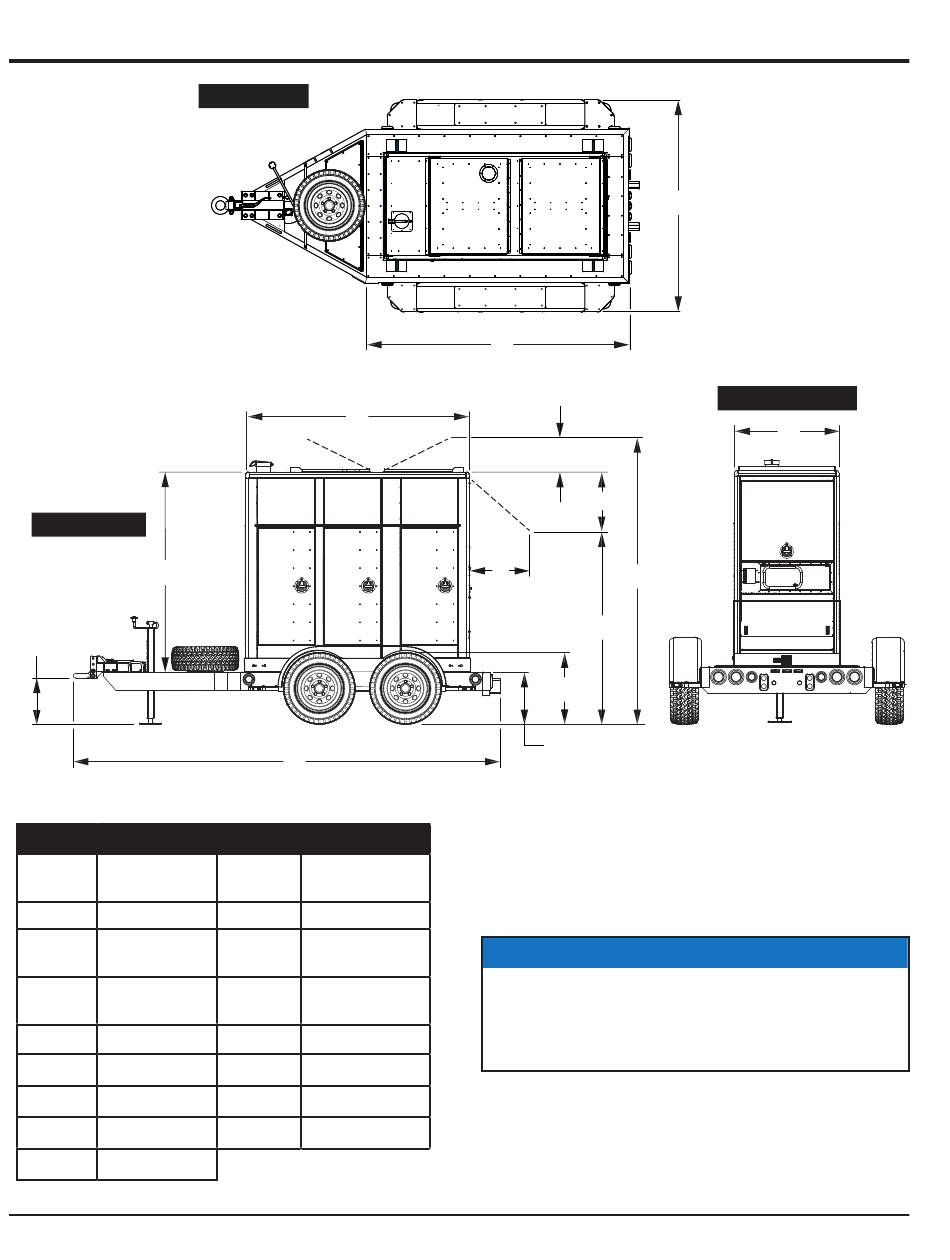

Figure 1. Dimensions
Reference Dimensions
Letter in. (mm)
I 22.5 (571)
23 (584)
J
Chrome Wheels
24 (610)
J
Aluminum Wheels
K
183.75 (4,667.25)
L
22.125 (561.97)
M 48 (1,219.2)
N 112 (2, 844.8)
A
B
D
E
F
H
G
J
I
NOTICE
Trailer mounted generators have a fuel tank located inside
the trailer frame. Fuel tank capacity is 145 gallons (548
liters). Skid mount generators have no fuel tank and will
require an external fuel system.
DIMENSIONS
FRONT VIEW
M
