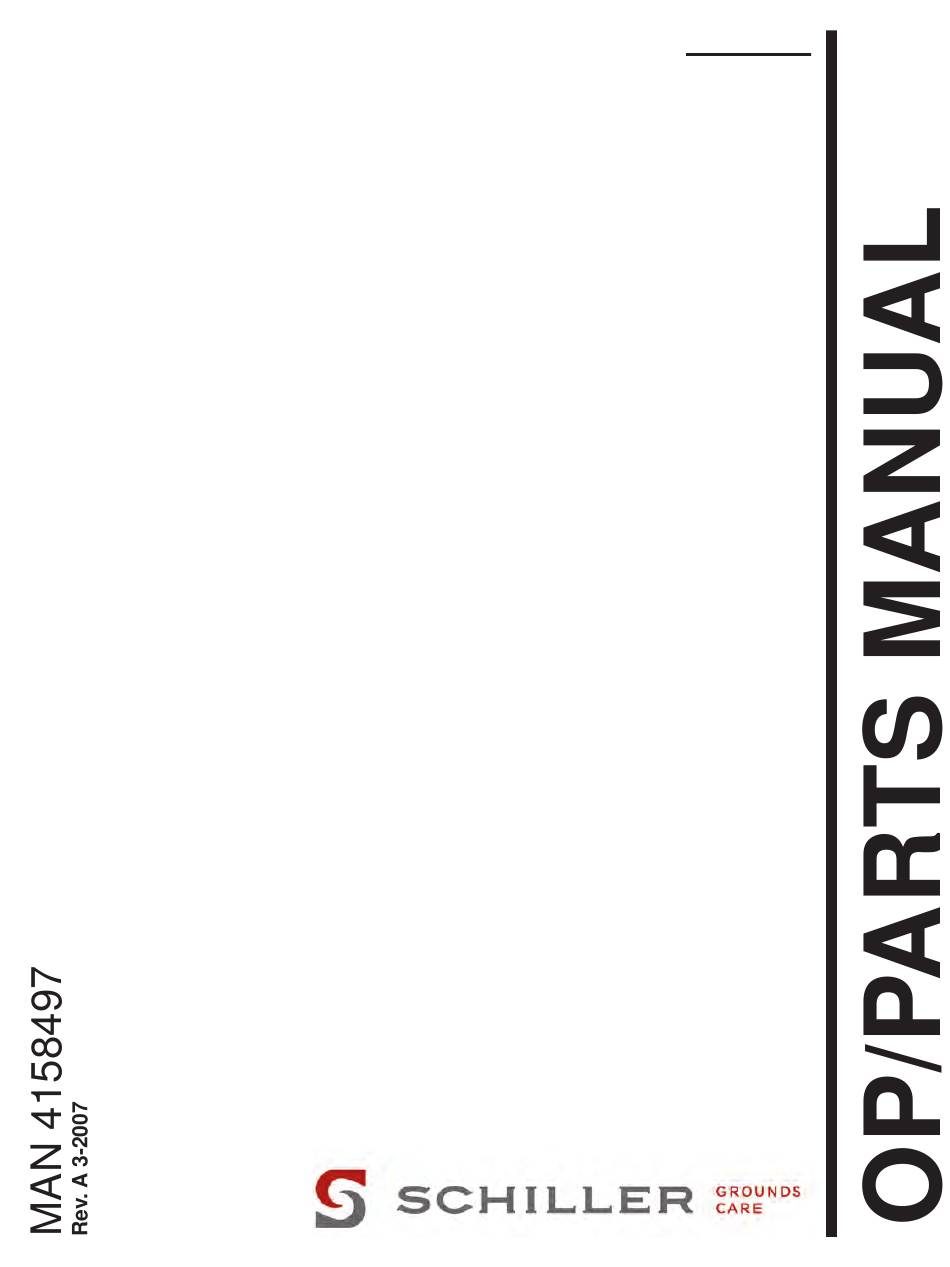

  • Page 1 MODEL: 73-70805 TREE FARM MOWER 44 MC400...
  • Page 2 CALIFORNIA WARNING Proposition 65 Warning The engine exhaust from this product Diesel engine exhaust and some of contains chemicals known to the State its constituents are known to the State of California to cause cancer, birth of California to cause cancer, birth defects or other reproductive harm.

  • Page 3: Table Of Contents

    Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive man- ner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety warnings and instructions.

  • Page 4: Introduction / Specifications

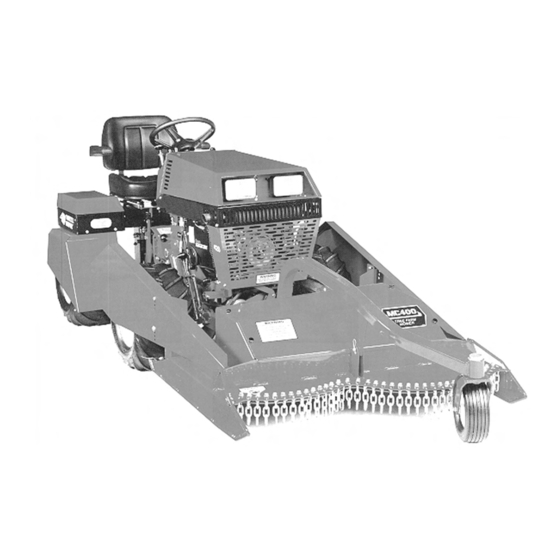

    DESCRIPTION The Model MC400 Tree Farm Mower is designed to fit the 420 tractor equipped with standard tires or optional 20 X 8.00-10 turf type tires. The mower is easy to attach and detach in a minute or less allowing interchange with many other front mounted attachments.

  • Page 5: Safety

    These words appear in this Grounds Care, Inc. Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and modified or changed in any manner not specifically the safety of others, read and follow the information authorized after original manufacture–including the...
  • Page 6 SAFETY TREE FARM MOWER GENERAL SAFETY 1. Read and understand the Owner’s Manual before attempting to operate this machine. 2. Operate all controls from the operator’s seat. NO RIDERS. 3. Keep all shields in place and safety switches adjusted properly. 4.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS TREE FARM MOWER 1. Remove mower from crate. 2. Remove top shield and remove bag of small fastener parts. Separate according to size. 3. If optional 20 X 8.00-10 turf-type tires are being used, move each wheel hub in toward the center of the tractor a distance of 3/4 inch or a total distance of 1-1/2 inches from the end of the axle.

  • Page 8: Installation

    INSTALLATION TREE FARM MOWER ATTACHING MOWER TO TRACTOR: 1. Operate latch control to open hitch latches. 2. Drive tractor into position aligning the quick hitch. 3. Be sure both latches engage fully and are laced in the locked position. NOTE: Stop engine! Do not attempt to install drive belt with engine running. 4.

  • Page 9: Operation

    OPERATION TREE FARM MOWER Observe all Safety Decals. Keep all Shields in place. Do not operate mower with other persons in the area. Irregularities in ground surface can permit foreign material to be propelled from beneath deck to cause serious injury or death. Before leaving tractor, move Forward - Reverse control to neutral position, disengage PTO, set parking brake, lower mower deck and stop engine.

  • Page 10: Service

    SERVICE TREE FARM MOWER MAINTENANCE Daily maintenance: Visual inspection for loose parts and accumulation of grass and dirt. Clean accumulation of grass clippings from beneath deck daily for better mowing performance. Keep blades sharp. Check the tips of the blades for wear. 25 hour maintenance: In addition to daily maintenance, grease caster, slip yoke and all bearings.
  • Page 11 SERVICE TREE FARM MOWER Changing Main Drive Belts • 1. Remove the top shield. • 2. Release the idler springs and remove upper drive belt. • 3. Remove the 4 bolts from the right spindle support. Tilt the support and remove the lower drive belt. NOTE: This support will move far enough to allow the lower belt to be removed and installed without loosening any spindle bearings.
  • Page 12 SERVICE TREE FARM MOWER SERVICE NOTES:...

  • Page 13: Parts Section

    PARTS SECTION TREE FARM MOWER PARTS SECTION...
  • Page 14 MAIN DECK TREE FARM MOWER FIGURE 1...

  • Page 15: Main Deck

    1-42 64-802.7 CHAIN RETAINER 60-611.7 SHIELD-TOP 1-43 83-H12 BUSHING-3/4 00-093 DECAL-OWNER'S MANUAL 1-44 80-249.7 GUARD-SPINDLE 00-195 DECAL-MODEL MC400 1-45 64139-08 BOLT-5/16-18X3/4 WLF 81-B063 BELT-B63 1-46 4139053 90 DEGREE GREASE ZERK 2 64164-10 1/4X1/4X1-1/4 MACH KEY 1-47 64163-61 WSHR .81X.406X16GA 83-BK65H PULLEY...

  • Page 16: Frame And Hitch Parts

    FRAME AND HITCH PARTS TREE FARM MOWER FIGURE 2...
  • Page 17 FRAME AND HITCH PARTS TREE FARM MOWER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 53-060 DUST CAP 2-37 64163-03 WSR-.256IDX.62ODX18 99-AC12NF LOCKNUT-3/4 NF 2-38 64123-89 BOLT-HEX 1/4-20X3/4 64163-06 WSHR-.768/.756X1.25X14G 2-39 83-H12 BUSHING-3/4 55-Z9504AB BALL BEARING 64163-06 WASHER 4132783.7 FRAME-CASTER WHEEL 64123-93 BLT-HEX 3/8-16X5...

  • Page 18: Front Wheel Shields

    FRONT WHEEL SHIELDS TREE FARM MOWER FIGURE 3...
  • Page 19 FRONT WHEEL SHIELDS TREE FARM MOWER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 60-522.7 SHIELD-R FRONT WHEEL 53-073 WHEEL ASSY (OPTIONAL) 53-090 TIRE ONLY-20 X 8.00-10 53-085 RIM ONLY FOR 53-073 WHL 1 60-521.7 SHIELD-LEFT FRONT WHL 64141-6 NUT, 5/16-18 64139-08...

  • Page 20: Rear Wheel Shields

    REAR WHEEL SHIELDS TREE FARM MOWER FIGURE 4...
  • Page 21 REAR WHEEL SHIELDS TREE FARM MOWER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64139-04 BOLT-WLF 1/4-20X3/4 64141-2 NUT-WLF 1/4-20 60-529.7 SHIELD-LEFT REAR WHEEL 1 64-643.7 SHIELD BRACKET-LFT R 53-073 WHEEL ASSEMBLY (OPTIONAL) 53-090 TIRE ONLY-20 X 8.00-10 53-085 RIM ONLY 64-644.7...

  • Page 22: Gearbox (D)

    GEARBOX (D) TREE FARM MOWER FIGURE 5...
  • Page 23 GEARBOX (D) TREE FARM MOWER FIGURE 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 87-239 GEARBOX 87-CM003913 HOUSING 87-CM056077 BLANK CAP 87-CM414516 WHIZLOCK CAPSCREWS 18 87-CM150094 BEARING CONE 87-CM150102 BEARING CUP 87-CM110064 GEAR (RH) 87-CM056655 HUB 87-CM056648 CAP 87-CM300004 SEAL 5-10 87-CM109967 INTEGRAL PIN (LH) 5-11...
  • Page 24 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com BOB-CAT BUNTON RYAN STEINER...
