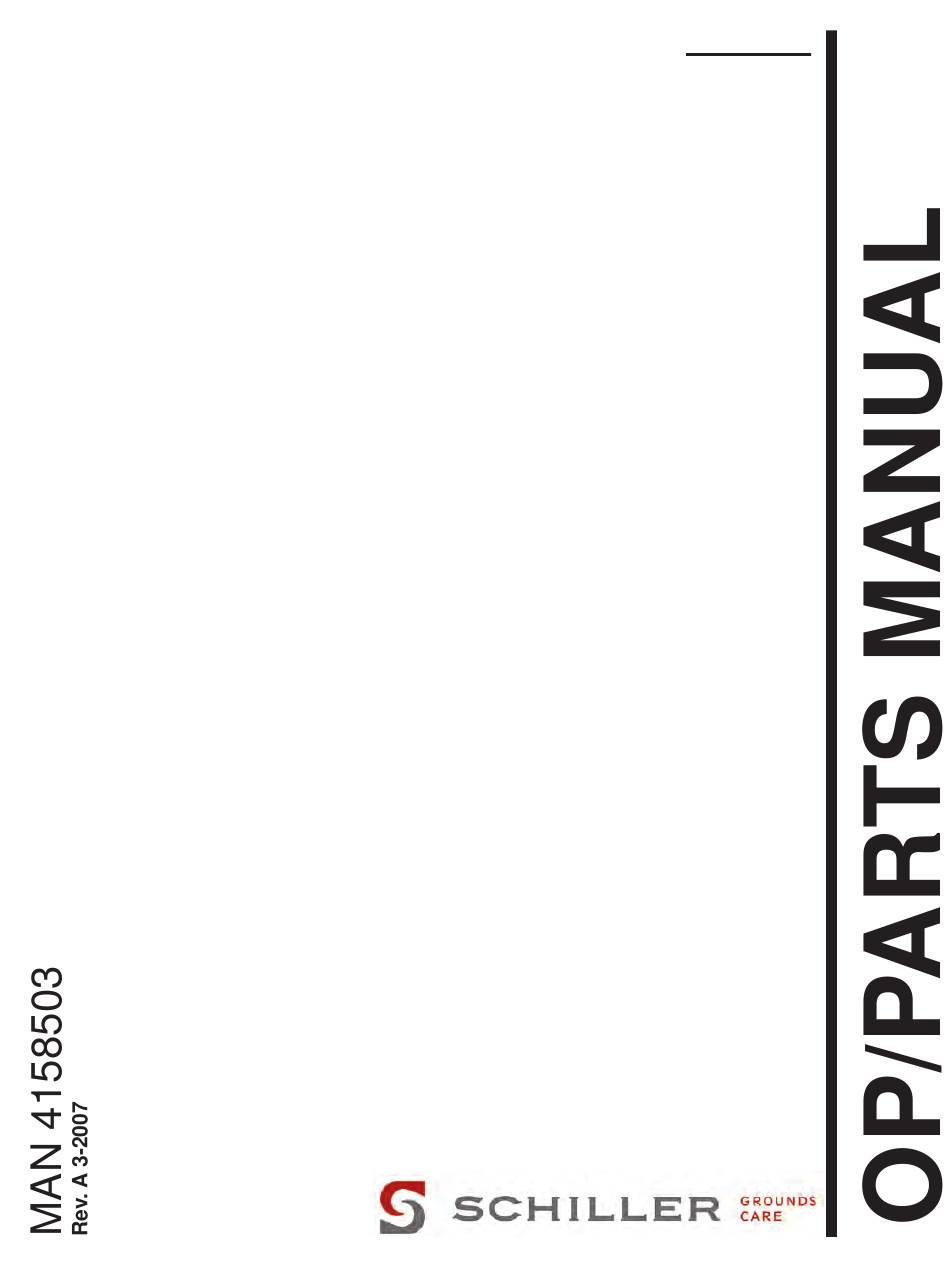

- Page 1 MODEL: 73-71010 ROUGH CUT MOWER RC466...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning The engine exhaust from this product Diesel engine exhaust and some of contains chemicals known to the State its constituents are known to the State of California to cause cancer, birth of California to cause cancer, birth defects or other reproductive harm.
- Page 3 Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive man- ner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety warnings and instructions.
- Page 4 MOWER DESCRIPTION The RC466 Rough Cut Mower will cut through tall, dense growth and 1" woody stems. Free-swinging blades on discs all but eliminate shock load to the four spindles. Chains at the front opening allow unrestricted access for tall growth. Counter rotating disc blades move material freely to the rear discharge.
- Page 5 Schiller Grounds Care, Inc. Engineering Department. Any Grounds Care, Inc. machines. For your safety and Schiller Grounds Care, Inc. product that is altered, the safety of others, read and follow the information modified or changed in any manner not specifically given with these signal words and/or the symbol authorized after original manufacture–including the...
- Page 6 ROUGH SAFETY MOWER GENERAL SAFETY • Read and understand the owner’s manual, • Never allow anyone to operate or service this before attempting to operate this machine. machine while under the influence of alcohol or drugs. • Operate all controls from the operator’s seat, (if so equipped).
- Page 7 ROUGH SAFETY MOWER SAFE OPERATION PRACTICES FOR 14. Use extra care when loading or unloading the machine into a trailer or truck. MOWERS 15. Always wear safety goggles or safety glasses with side shields when operating mower. This cutting machine is capable of amputating hands and feet and throwing objects.
- Page 8 ROUGH SAFETY MOWER DO NOT: IV SERVICE • Do not turn on slopes unless necessary, and 1. Use extra care in handling gasoline and other then, turn slowly and gradually downhill, if fuels. They are flammable and the vapors are possible.
- Page 9 ROUGH DECALS MOWER Location: On mower deck right rear. Location: On mower deck top front center and both sides. Location: On drive belt shield. Location: On mower deck top left and right shields. Location: On mower drive line shield.
- Page 10 ROUGH INSTALLATION MOWER ATTACHING MOWER TO TRACTOR: Operate latch control to open hitch latches. Drive tractor into position aligning the quick hitch. Be sure both latches engage fully and and are placed in the locked position. Stop engine! Do not attempt to install drive belt with engine running. Release idler assembly to facilitate easy installation of the drive belt.
- Page 11 ROUGH INSTALLATION MOWER REAR WEIGHT REQUIREMENTS The table of requirements for rear weights is based upon average mowing conditions and operator’s weight of 150 lbs. The recommendations may vary with the weight of the operator, other accessories, and the mowing conditions.
- Page 12 ROUGH OPERATION MOWER OPERATING PRECAUTIONS Observe all Safety Decals. Keep all Shields in place. Do not operate mower with other persons in the area. Irregularities in ground surface can permit foreign material to be propelled from beneath deck to cause serious injury or death.
- Page 13 ROUGH SERVICE MOWER MAINTENANCE Daily maintenance: Annual Maintenance: Visual inspection for loose parts and accumulation of grass and dirt. In addition to daily and 25 hour maintenance, remove the drive belts and check for cracks Clean accumulation of grass clippings or wear.
- Page 14 ROUGH SERVICE MOWER ADJUSTMENTS Sharpening blades: Be careful while sharpening blades that the corners of the blade do not become rounded at the tips. This reduces the blades overlap and will cause skipping. Blades are reversible for extended wear. Simply flip over to use a new cutting edge. When installing new or sharpened blades be certain to replace right blades and left blades on the proper spindles.
- Page 15 ROUGH SERVICE MOWER 1. Raise deck to the highest cutting height and 7. Replace the u-joint on the drive shaft and install the drive shaft shield. remove top shields. 2. Remove drive shaft shield. Remove the front 8. Refer to the illustration and install the front u-joint from the drive shaft and slide it back.
- Page 16 ROUGH MAIN FRAME MOWER FIGURE 1...
- Page 17 ROUGH MAIN FRAME MOWER FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 6105106.7 MAIN FRAME 1-41 90-1060 BOLT 85010N GREASE FITTING,1/4-28 1-42 64229-06 LOCKNUT, NYLON 5/8-11 90-1016 BOLT,5/8-11 X 2 1-43 6112062 SPACER 4132296 ROD END - 5/8 1-44 53-168 WHEEL-W/13 X 5 X 6 TIRE...
- Page 18 ROUGH PTO & DRIVE SHAFTS MOWER FIGURE 2...
- Page 19 ROUGH PTO & DRIVE SHAFTS MOWER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 6105087.7 DECK WLDMT 55-FB23012 BEARING 64123-50 BOLT-HEX 3/8-16X1 64141-4 NUT-WLF 3/8-16 6105082 SHAFT-SECONDARY 64164-02 KEY 3/16X3/16X1 SQ 83-BK40H PULLEY, 4" 83-H12 BUSHING 87-222 SHAFT-DRIVE PTO ASSY 2-10 6105106.7 MAIN FRAME 2-11...
- Page 20 ROUGH SPINDLE ASSY & DRIVE BELTS MOWER FIGURE 3...
- Page 21 ROUGH SPINDLE ASSY & DRIVE BELTS MOWER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 83-BK65H PULLEY-6.5" 83-H18 BUSHING 64123-89 BOLT-HEX 1/4-20X3/4 83-012 PULLEY, IDLER 83-3BK65H SHEAVE D2902 SHEAVE 83-BK40H PULLEY-4" 83-034 IDLER 81-AA96 BELT-AA96 DOUBLE-V 81-A144 BELT-A144 HY-T 3-10 6105032 SPINDLE-FRONT...
- Page 22 ROUGH DECK ASSY & SHIELDS MOWER FIGURE 4...
- Page 23 ROUGH DECK ASSY & SHIELDS MOWER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 6105087.7 MAIN DECK 4-41 64163-67 WASHER-.516X1X12 6105077.7 SKID SHOE-LFT 4-42 90-0826 BOLT,1/2-13 X 3-1/4 6105076.7 SKID SHOE-RT 4-43 64123-117 BOLT-HEX 1/2-13X1-1/2 6105062.7 RIGHT STRUT 4-44 64123-24 BLT-HEX 1/2-13X2...
- Page 24 ROUGH DECALS MOWER FIGURE 5...
- Page 25 ROUGH DECALS MOWER FIGURE 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 00-025 DECAL-KEEP HANDS 00-092 DECAL-HANDS & FEET 00-093 DECAL-RD OWNERS MAN 00-138 DECAL-ROTATING BLADES 2 4116761 DECAL-MADE IN THE USA 00-280 DECAL-KEEP GUARD IN PL 1 00-320 DECAL-KEEP HANDS LRG...
- Page 26 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com BOB-CAT BUNTON RYAN STEINER...
