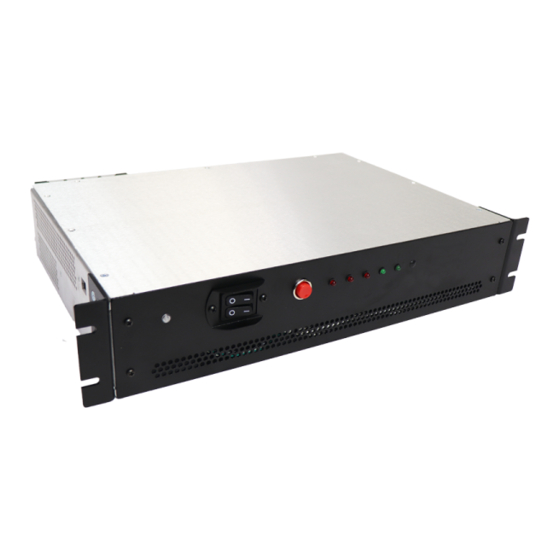

DuraComm PSRM-5012NFPMU Owner's Manual

DuraComm PSRM-5012NFPMU Owner's Manual

Rack mount power supply with battery management system, nfpa 1221 alarms, monitoring & contro

Advertisement

Quick Links

www.duracomm.com
RACK MOUNT POWER SUPPLY WITH BATTERY MANAGEMENT
SYSTEM, NFPA® 1221 ALARMS, MONITORING & CONTROL
PSRM-5012NFPMU / PSRM-2524NFPMU / PSRM-1248NFPMU
OWNER'S GUIDE
©2020 Duracomm Corporation
All Rights Reserved
Document No: PSRM-XXXXNFPMU_OG / 2021-03-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSRM-5012NFPMU and is the answer not in the manual?

Questions and answers

Summary of Contents for DuraComm PSRM-5012NFPMU

  • Page 1 RACK MOUNT POWER SUPPLY WITH BATTERY MANAGEMENT SYSTEM, NFPA® 1221 ALARMS, MONITORING & CONTROL PSRM-5012NFPMU / PSRM-2524NFPMU / PSRM-1248NFPMU OWNER’S GUIDE ©2020 Duracomm Corporation All Rights Reserved Document No: PSRM-XXXXNFPMU_OG / 2021-03-30...
  • Page 2: Table Of Contents

    Device Setup Page............................... 14 Sensor Setup Page ..............................15 Alarm Setup Page................................ 16 Main Status Page ................................ 18 Section 4 | Specifications ..............................19 Section 5 | Warranty ..............................20 Section 6 | Contact Us ..............................20 Duracomm | 2...
  • Page 3 12. The individual user should take care to determine prior to use or installation whether this device is suitable, adequate, and safe for the intended use. Since individual application are subject to numerous variations, DuraComm makes no representation or warranty as to the merchantability, suitability, or fitness of these units for any specific application.
  • Page 4: Section 1 | Product Overview

    Configurable logging, alarms, email notifications, and SNMP traps • Front panel smart display and LED alarm indicators • Manual battery disconnect switch • NFPA® 1221 compliant form C alarm outputs • Battery supervisory www.duracomm.com for more information. Duracomm | 4...
  • Page 5: Section 2 | Installation And Operation

    16 AWG 20 Amps 16 AWG 14 AWG 30 Amps 14 AWG 12 AWG 40 Amps 12 AWG 10 AWG 50 Amps 10 AWG 8 AWG 70 Amps 8 AWG 6 AWG 100 Amps 6 AWG 4 AWG Duracomm | 5...
  • Page 6: Front Panel Switch / Indicators

    Only connect and charge lead-acid AGM batteries configured to proper battery voltage to the battery charger terminal. 20.84 20.84 Supervisory for battery only With built-in resistor Sensor wire does NOT crimp with the main battery wire FRAME GROUND ETHERNET Load Lead-Acid Battery Bank AC INPUT Figure 2. Rear panel connections. Duracomm | 6...
  • Page 7: Rear Alarm Wiring

    ONLY charge lead-acid AGM batteries. Other types of batteries may burst causing personal injury and damage. Figure below shows the charging curve of lead-acid AGM batteries and the status of the charger at different LED color on the front panel. Figure 4. Battery charging curve. Duracomm | 7...
  • Page 8: Section 3 | Remote Monitoring

    PC on the same network to scan for the new IP address by using a software tool such as Angry IP Scanner. In Angry IP Scanner, you should add the MAC address “Fetcher” under “Tools > Fetchers”. The DuraComm MAC addresses all start with a base address of 70-B3-D5-6B-3.
  • Page 9 ‘User Setup’ section now or later to change user account information or, if necessary, perform a factory reset. Enter IP address in your browser and press “Enter” key Figure 5. Enter IP address to connect to the PS Series unit. Duracomm | 9...
  • Page 10: User Setup Page

    To reset network settings, press the red button on the on-board remote control unit PCB and hold it for more than 20 seconds (you will need to remove the cover on the DuraComm unit, and connect power to the battery terminals). Re- connect to the unit through your web browser by entering the factory supplied IP address and HTTP port (see Network Setup).
  • Page 11 “Admin” users have full user control of the device. • Username: admin • Password: admin “Control” users have limited control capability (access all screens except the User Setup screen). • Username: control • Password: control Figure 7. User login window for username and password. Duracomm | 11...
  • Page 12: Network Setup Page

    The monitoring unit will send traps for all configured alarm conditions including bootup, temperature, analog alarms, and digital alarms. Digital Outputs can also be controlled by SNMP and configured for alarms on the unit. Figure 8. Network Setup Page. Duracomm | 12...
  • Page 13: Email Setup Page

    • US Cellular: phonenumber@mms.uscc.net • Cricket Wireless: phonenumber@sms.mycricket.com The email and alert will be sent to your phone as a text message. Text fees and limits may vary by provider and plan. Figure 9. Email Setup Page. Duracomm | 13...
  • Page 14: Device Setup Page

    Miscellaneous Setting You can set the number of significant digits after the decimal for the Analog Voltage readouts on the Status page, as well as set the temperature units. Figure 10. Device Setup Page on the MU model. Duracomm | 14...
  • Page 15: Sensor Setup Page

    Digital Outputs and Logging can be configured to turn on and off according to a schedule. There are 16 schedules that can be set for outputs, and one for logging. Figure 11. Sensor Setup Page. Duracomm | 15...
  • Page 16: Alarm Setup Page

    The “Log All Alarms” setting in the “Global Settings” on this page is the same as the “Log Alarms” setting on the Device Setup page. Figure 12. Alarm Setup Page. Duracomm | 16...
  • Page 17 Amps Battery -10 / 100 Volt Power Supply -7 / 70 Volt Battery Charger Fail 51.8 52.4 -7 / 70 Volt Battery Battery Low 46.0 50.0 -7 / 70 Volt Battery Battery Fail 40.0 50.0 -7 / 70 Duracomm | 17...
  • Page 18: Main Status Page

    Main Status Page This page shows the status of all analog and digital inputs. User may also download the Log File from this page. AC voltage and output current of individual channels are approximated. Figure 13. Main Status Page. Duracomm | 18...
  • Page 19: Section 4 | Specifications

    Operating Temperature -20°C to 60°C Operating Humidity ≤ 90% non-condensing Weight & Dimensions Shipping Weight = 14 lbs. Dimensions = 3.5 H x 19 W x 13 D inches Note: Specifications are subject to change without notice. Duracomm | 19...
  • Page 20: Section 5 | Warranty

    DuraComm reserves the right to change, alter, or improve the specifications of its products at any time, and by so doing, incurs no obligation to install or retrofit any such changes or improvements in or on products manufactured prior to inclusion of such changes.

This manual is also suitable for:

Psrm-2524nfpmuPsrm-1248nfpmu
