DuraComm LP-18BC User Manual

SPECIFICATIONS
AC Input Voltage
115 or 230 VAC Switch selectable
DC Output Voltage Ch. 1= 13.8 VDC
Output Ripple
Rated Current (max.)
13.5 amps (15 amps - No Batt) 18A Int.=CH. 1
Duty Cycle
Continuous = 100% Industry Continuous
Overload 120~160% (CH. 1), 1.51~1.7A(CH. 2) rated output
UPS mode: Protected by internal fuse
Over Voltage
15.87~18.63V max. Shut down- re-power on to
Over Temperature 75℃(+-10℃) Shut down, Auto recover
Load Regulation
Line Regulation
Inrush Current (max.)
AC Current
Rated Power
Cooling
Working Temperature
Efficiency
Safety UL 60950-1, 2
Quality Assurance
Dimensions
Weight
DuraComm
®
6655 TROOST AVENUE
KANSAS CITY, MO. 64131
816-472-5544
www.duracomm.com
Ch. 2 = 13.6 VDC
120 mV P-P @ full load
1.5 amps = CH. 2
Comm. Service (CCS)
Fold back, repower on to recover.
recover
1.0% No load to full load
0.5%
Cold Start 35A/230VAC
4.6A/115VAC 2.6A/230VAC
250 Watts
Forced air, Fan on = 45℃
- 10 ~ 70℃
80 % typical
nd
:2011 UL/CUL recognized
ISO 9001 standards
217 x 180 x 50 mm
3.5 lbs. / 1.6 Kgs.
Corporation
LP-18BC
User's Guide
(These instructions are intended for use by a technician
familiar with electronic products)

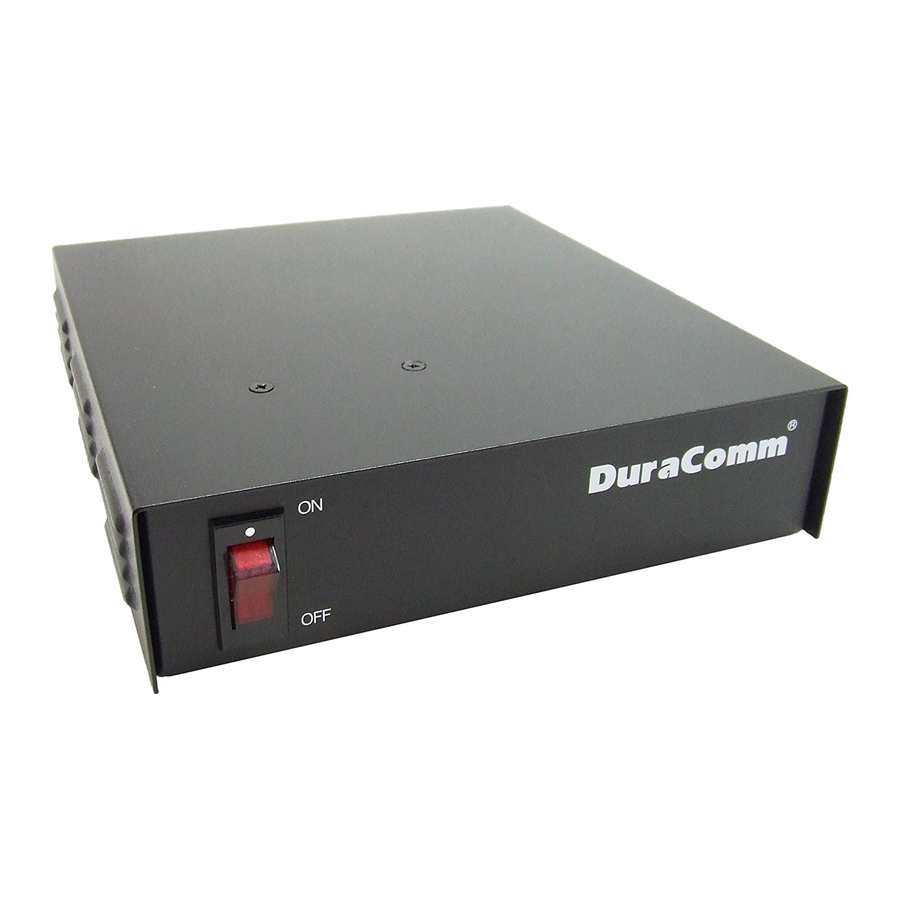

Desk Top Power Supply
Features:
• -
Extreme operating temp (-10 ~ +70℃)
• -
Universal AC input (90~132/190~264VAC)
• -
Built in Battery Backup/Charging Circuit/Low Voltage Disconnect
