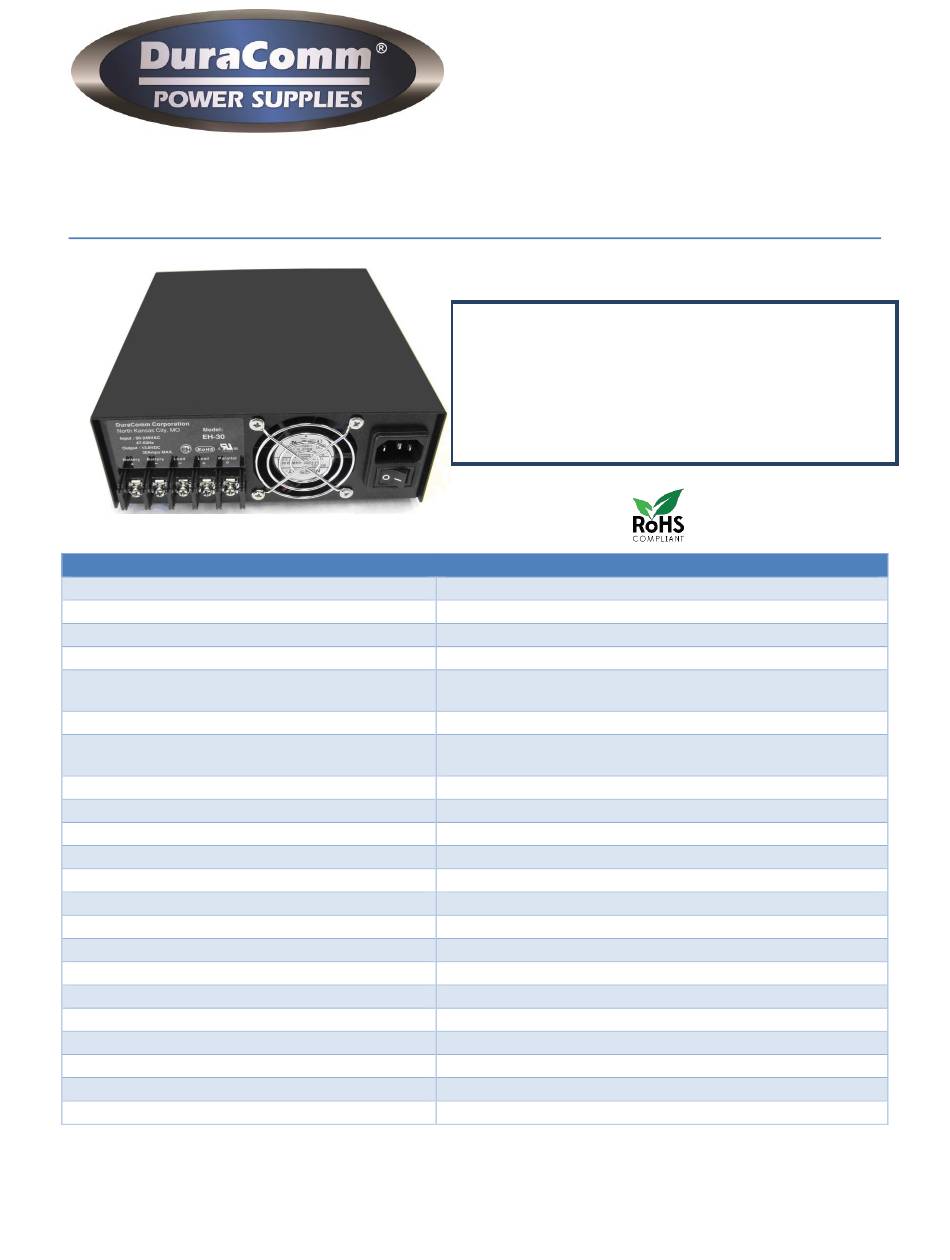

30 Amp RF Hardened Desktop Power Supply
AC Input Voltage
DC Output Voltage
Output Ripple
Related Current (max.)
Duty Cycle
Over Voltage
Overload
Over Temperature
Load Regulation
Line Regulation
Inrush Current (max.)
AC Current
Rated Power
Cooling
Working Temperature
Derate
Efficiency
Safety
Quality Assurance
Dimensions (L x W x H), Product
Dimensions (L x W x H), Shipping
Weight, Shipping
*NOTE: Specifications are subject to change without notice
EH-30
•
Universal AC/DC input
•
Built in Battery Backup/Charging Circuit
•
Parallel function capability
•
Low Noise (> 25mV p-p @ full load)
•
RoHS Compliant
Auto Ranging 90 – 264 VAC or 127 – 370 VDC
Ch 1 = 13.8 VDC Ch 2 = 13.4 VDC
25 mV p-p @ full load
Ch 1 = 30.0 Amps Ch 2. 0.5 Amps
Continuous = 100% Industry Continuous Comm.
17V max. Shutdown, re-power on to recover
105 to 107% (Ch 1) Rated Output Hiccup Mode –
+100 C Shutdown Auto Recover
4.0% No load to full load
30A/115VAC, 45A/230VAC
6A/115VAC, 3A/230VAC
Forced air, Fan on = +45C
-22 – +140 F (-30 – +60C)
2.5% for every 1C over 50C
UL 60950-1 UL/CUL Recognized
ISO 9001 Standards
7.0 x 8.25 x 2.875 in
Service (CCS)
Auto Recover
0.5%
414 Watts
Typically 80%
21 x 10 x 7 in
6.5 lbs.
Edited: August 2, 2018
Advertisement
Table of Contents
Related Manuals for DuraComm EH-30
Summary of Contents for DuraComm EH-30
- Page 1 EH-30 30 Amp RF Hardened Desktop Power Supply • Universal AC/DC input • Built in Battery Backup/Charging Circuit • Parallel function capability • Low Noise (> 25mV p-p @ full load) • RoHS Compliant AC Input Voltage Auto Ranging 90 – 264 VAC or 127 – 370 VDC DC Output Voltage Ch 1 = 13.8 VDC Ch 2 = 13.4 VDC...
-
Page 2: Table Of Contents
NOTE: The individual user should take care to determine, prior to use or installation, whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, DuraComm makes no representation or warranty as to the merchantability, suitability or fitness of these units for any specific application. -
Page 3: Section 2 | Product Overview
AC to DC output into low noise and ripple, regulated 13.8-volt DC output for channel 1 and 13.4 Volt DC for channel 2. The EH-30 has a built-in battery backup and charging circuit with diode isolation for seamless transfer to battery if input power is disrupted. -
Page 4: Battery
Battery Connect your 12-volt DC battery using UL wiring to the EH-30 terminal marked Battery (+) and Battery (-). Be certain to connect Positive (+) to Positive (red) and Negative (-) to Negative (black). If two EH-30s are used in parallel, then connect the batteries as shown. -
Page 5: Section 4 | Maintenance
Section 4 | Maintenance Conductor Pretreatment All kinds of copper conductors can be clamped without treatment. DO NOT solder tin stranded conductors. The solder yields and fractures under high pressure. The result is increased contact resistance and excessive temperature rise. Additionally, corrosion has been observed due to the fluxes. -
Page 6: Section 5 | Warranty
DuraComm reserves the right to change, alter, or improve the specifications of its products at any time, and by so doing, incurs no obligation to install or retrofit any such changes or improvements in or on products manufactured prior to inclusion of such changes.
