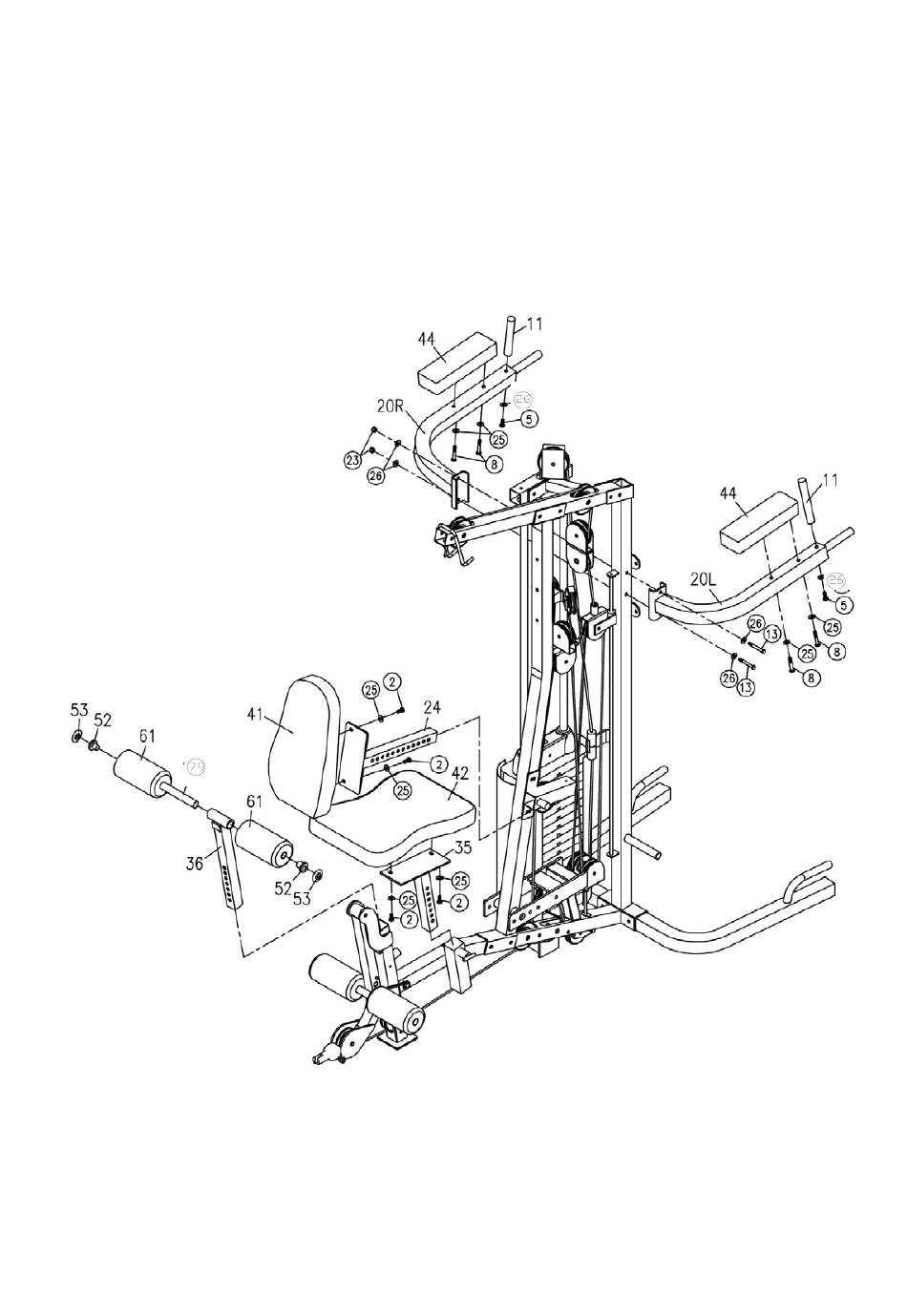

. Attach handlebar tube (11) to the parallel bar with washer (25) and bolt (M10x20mm)(5). Attach parallel par (20)
to the vertical tube (4) with bolts (M10x75mm)(13), washers (26) and locknuts (23).
Attach arm cushion (44) to the parallel bar (20) with washers (25) and bolts (M8x70mm)(8).
Connect backrest cushion (41) and backrest adjusting tube (24) with washers (25) and bolts (M8x30mm)(2),
then insert backrest adjusting tube (24) into backrest adjusting bushing (18), and lock it with pop pin (68).
Connect seat adjusting tube (35) and seat cushion (42) with washers (25) and bolts (M8x30mm)(2), then insert
seat adjusting tube (35) into the side bushing on seat tube (3), and lock it with pop pin (68).
Slide tube (79) through the leg-kicking adjusting tube (36), slide the bolsters (61) onto both end of the tube,
lock with leg-kicking sofa hole covers (52) and plastic end caps (53). Insert leg-kicking adjusting tube (36) into
the front bushing on seat tube (3), lock it with pop pin (68).
